Integrated 8thGenerationIntel®i5-8265U 1.6GHz quad core 8-thread processor
2* SODIMM DDR4 2400MHz RAM,max up to 32GB
1*VGA port,1*HD OUTPUT port
2* RTL8111H Gigabit Ethernet, support WOL / PXE
2* RS232 DB9 COM port,support RS485 switchable
4* USB3.0 port，4*USB2.0 port，1* SIM slot
DC 12V power input
Full aluminum case,fanless cooling structure,Copper tube heat conduction
support 1* SIM solt
- Product Details
- {{item.text}}
Quick Details
-
Cpu:
-
Intel i5-10210U/8265U/6200U/5205U)
-
Product name:
-
Industrial Embedded Pc
-
Operating System:
-
Win7/8/10/linux
-
Certification:
-
CE/CCC/FCC/ROHS/ISO9001
-
Storage:
-
1*SATA3.0
-
Memory:
-
2*SO-DIMM DDR4 2400MHz
-
LAN:
-
2* RTL8111H Gigabit Ethernet
-
COM:
-
2* RS232 DB9 COM port
-
USB Port:
-
2*USB3.0/2*USB2.0
-
Hard Disk:
-
1* MSATA slot/1* M.2 slot
Quick Details
-
Type:
-
Embedded Computer
-
Brand Name:
-
YENTEK
-
Place of Origin:
-
Guangdong, China
-
Cpu:
-
Intel i5-10210U/8265U/6200U/5205U)
-
Product name:
-
Industrial Embedded Pc
-
Operating System:
-
Win7/8/10/linux
-
Certification:
-
CE/CCC/FCC/ROHS/ISO9001
-
Storage:
-
1*SATA3.0
-
Memory:
-
2*SO-DIMM DDR4 2400MHz
-
LAN:
-
2* RTL8111H Gigabit Ethernet
-
COM:
-
2* RS232 DB9 COM port
-
USB Port:
-
2*USB3.0/2*USB2.0
-
Hard Disk:
-
1* MSATA slot/1* M.2 slot
Product Description
Features
|
Model No.
|
C4350S-V V1.0(8265U)
|
|
|
|
Case
|
Material/Structure
|
Full aluminum case, fanless cooling
|
|
|
|
Color
|
Iron gray / Fog Silver
|
|
|
|
Dimension(L*W*H)
|
L141.5*W126*H56.5MM
|
|
|
|
Installation
|
Desktop /VESA mounted
|
|
|
Motherboard
|
CPU
|
Integrated 8th Generation Intel®i5-8265U 1.6GHz, quad core 8-thread processor ,TDP 15W
|
|
|
|
Display
|
Intel® UHD Graphics ,support DirectX 12 OpenGL 4.5, 4K/60Hz
|
|
|
|
RAM
|
2*DDR4 SODIMM RAM slot,support dual channel 2400MHz,max up to 32GB
|
|
|

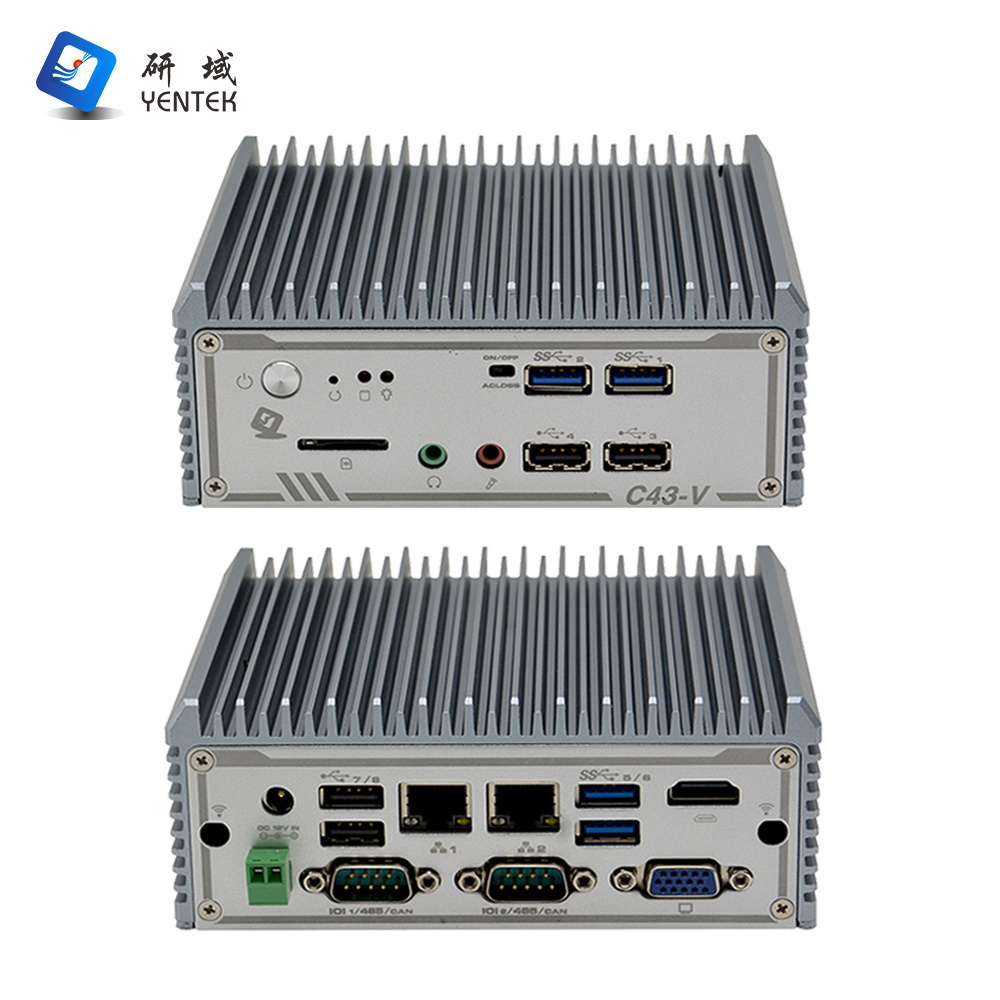

Front I/O Port
|
POWER
|
1* Power Switch，1* Reset Switch，1* AC LOSS（auto power on switch）
|
|
|
|
LED
|
1* Power LED，1* HDD LED
|
|
|
|
USB
|
2* USB2.0，2* USB3.0
|
|
|
|
Audio
|
1* Line out port，1* MIC port
|
|
|
|
SIM
|
1* SIM slot,3G/4G module
|
|
|
Rear I/O Port
|
POWER
|
1* 2pin Remote Switch
|
|
|
|
Display Port
|
1* VGA port，1* HD OUTPUT1.4 port(4096x2304@24Hz)
|
|
|
|
LAN
|
2* RTL8111H Gigabit Ethernet, support WOL / PXE
|
|
|
|
USB
|
2* USB2.0，2* USB3.0
|
|
|
|
COM
|
2* RS232 DB9 COM port,support RS485 switchable
Support CAN interface |
|
|
|
Power Supply
|
1* DC 12V power input
|
|
|
Storage
|
MSATA
|
1* MSATA slot,SSD support Intel protocol
|
|
|
jhnhj
|
M.2
|
1* M.2 slot, support M.2 2280 NVME PCIEx4 SSD
|
|
|
Expansion
|
Mini PCIE
|
1* Mini-PCIE slot, support WIFI/4G module
|
|
|
|
M.2
|
1* M.2 slot，support M.2 Key B 5G module(not default)
|
|
|
software support
|
Microsoft Windows
|
Windows 10
|
|
|
|
Linux
|
Ubuntu
|
|
|
|
Watch Dog
|
Support hardware reset function (256 levels, 0~255 seconds)
|
|
|
power requirements
|
Power Type
|
External power adapter
|
|
|
|
Voltage input
|
DC 12V
|
|
|
|
power output
|
AC TO DC, above 60W
|
|
|
surroundings
|
Operating temperature
|
-10℃～60℃
|
|
|
|
storage temperature
|
-20℃～70℃
|
|
|
|
Relative humidity
|
5%-95% relative humidity, no condensation
|
|
|
|
work vibration
|
0.5g rms/5-500HZ/random/operating
|
|
