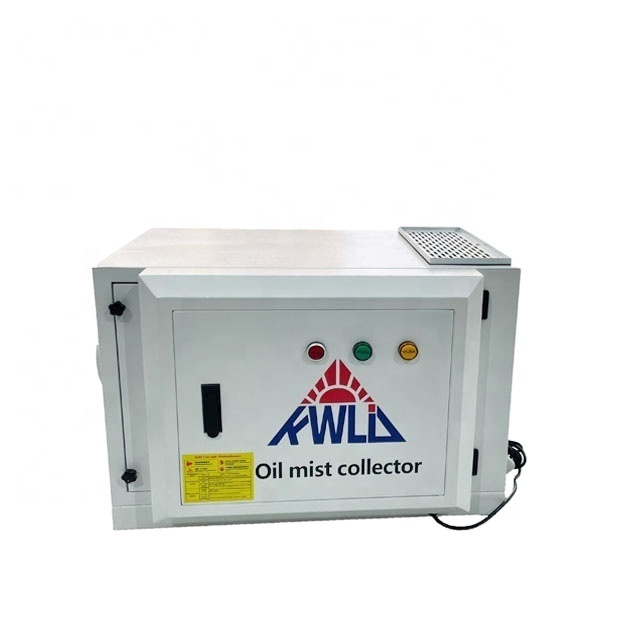

intelligent electrostaic oil mist collector adopts mechanical purification and electrostatic purification dual role.The dirty air first enters the primary unit-purifying the rectifier chamber,Gravity inertial cleaning technique,The special structure of the room gradually divides large diameter pollutant into physical separation,And balanced rectifier.The remaining small diameter contaminants enter the secondary unit-the high-voltage electrostatic field,Electrostatic field, part two, The first stage is an ionizing device,A strong electric field causes particles to charge,Become charged particles,These charged particles arrive at the second dust collector and are immediately collected to adsorb the electrodes. Finally,through the screen grille,Clean air out of the room.
In the electrostatic air cleaner. the corona field has a potential difference of 10-15 kV between the poles, The molecules of an electrically charged gas are decomposed or electronically attached to free ions.When the airflow passes through the dust collector electric field region,The particles are charged by the ion and move to a collecting electrode with opposite electrical properties.In other words, The first step in the collection mechanism is to ionize the gas, The second step is to make particles in the air live, The third step is to cause particles to hit the collecting electrode plates and to be collected.Theoretically,The power of a charged particle is proportional to the amount of charged particles and the strength of the collected electric field.The magnitude of this power, For a l micron particle with a specific mass of 1,3000 times as heavy as gravity; For a 10 micron particle with a specific mass of 1,300 times as heavy as gravity, To this end,electrostatic purifier efficient and efficient reasons.
