4.3 inch touch screen with friendly User Interface, faster verify speed and good performance, suport TCP/IP, USB, RS232/485 and Wiegand, also can customieze WFI or GPRS/3G/4G, backup battery for continous operation for power failure.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Granding
-
Model Number:
-
FA1-H
-
LCD Display:
-
4.3 inch Touch screen
-
Cameras:
-
High Definition Infrared Camera
-
Memory:
-
Memory 256M Flash,128M SDRAM
-
User Role and user expired Date:
-
Yes
-
Face Capacity:
-
3000 Faces
-
Fingerprint Capacity:
-
5000 Fingerprints
-
RFID Card Capacity:
-
100,000 Logs
-
Communication Optional:
-
Wireless WIFI,GPRS,3G,4G
-
Warranty:
-
One Year Warranty, Life-Time Technical Support
Quick Details
-
Type:
-
Biometric Time Recording
-
Biometric Measurement:
-
Face+Fingerprint
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Granding
-
Model Number:
-
FA1-H
-
LCD Display:
-
4.3 inch Touch screen
-
Cameras:
-
High Definition Infrared Camera
-
Memory:
-
Memory 256M Flash,128M SDRAM
-
User Role and user expired Date:
-
Yes
-
Face Capacity:
-
3000 Faces
-
Fingerprint Capacity:
-
5000 Fingerprints
-
RFID Card Capacity:
-
100,000 Logs
-
Communication Optional:
-
Wireless WIFI,GPRS,3G,4G
-
Warranty:
-
One Year Warranty, Life-Time Technical Support
Products Introduction

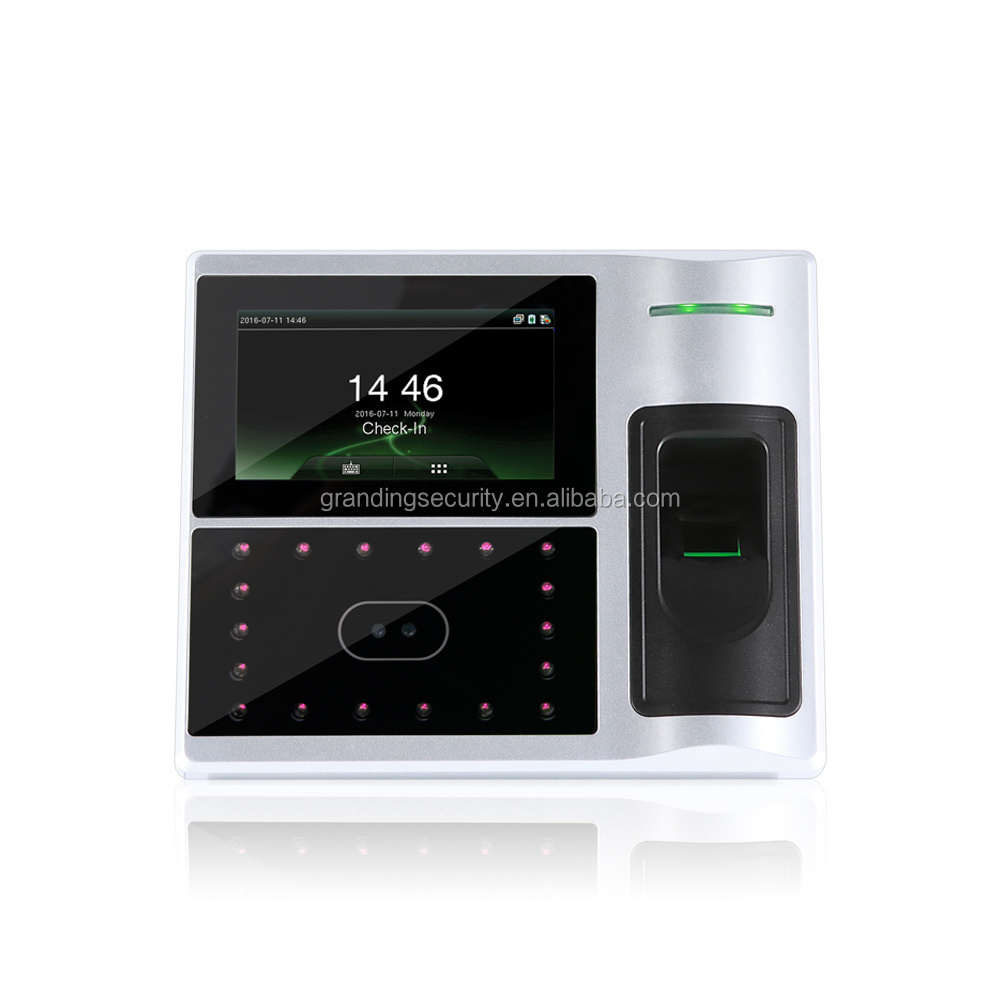

FA1-H Free SDK Face Identification Door Access Control Fingerprint Attendance Device With Web Attendance Management Software
FA1-H is new version of face recognition with
Large Capacity ,
FA1-H Free SDK Face Identification Door Access Control Fingerprint Attendance Device With Web Attendance Management Software
, with latest firmware, built-in relay,Interface for door lock, door sensor, alarm and exit button.
Products Features
FA1-H Free SDK Face Identification Door Access Control Fingerprint Attendance Device With Web Attendance Management Software
The facial recognition time attendance, access control system offers a composite algorithm system with high speed operating.
Embedded LINUX system, easy to integrate into various systems.
It support standalone or network environment.
Infrared optical system enabling user identification in dark environments.
4.3" TFT touch screen LCD, elegant design, fashionable and simple interface.
6 user-defined function keys and is easy to operate.
It saves data during power outage.
Built in backup battery support extra2~ 4 hours continuous operation if power failure
Support TCP/IP, USB, RS232/485, also can customize wifi or 3G(WCDMA)/4G
Easy to connect Slave reader for Anti-Passbak function
Support User role and user expired date management
Professional WEB based software UTime Master or free offline software ZKTime5.0.
Embedded LINUX system, easy to integrate into various systems.
It support standalone or network environment.
Infrared optical system enabling user identification in dark environments.
4.3" TFT touch screen LCD, elegant design, fashionable and simple interface.
6 user-defined function keys and is easy to operate.
It saves data during power outage.
Built in backup battery support extra2~ 4 hours continuous operation if power failure
Support TCP/IP, USB, RS232/485, also can customize wifi or 3G(WCDMA)/4G
Easy to connect Slave reader for Anti-Passbak function
Support User role and user expired date management
Professional WEB based software UTime Master or free offline software ZKTime5.0.
Products Specification
|
Display/Speaker
|
Language
|
|
LCD Display: 4.3" TFT Touch screen
|
Multi Language, English, French, Spanish, Arabic, etc., for more than 40 languages can be selected
|
|
Speaker: Voice Prompt (language can be selected)
|
|
|
Technical Specifications Capacity |
Environment |
|
Face capacity: 3000; Fingerprint capacity: 5,000
|
Operation temperature: 0℃ ~ 45℃
|
|
10000 card(optional) Log capacity: 100,000
|
Operation humidity: 20% ~ 80%
|
|
Verification/Identification |
Verification/Identification |
|
Verification speed (1:1): ≤1s
|
FRR: ≤0.01%
|
|
Identification speed (1:N): ≤1s
|
FAR: ≤0.0001%
|
|
Power Supply |
Machine Size |
|
Power: 110/220VAC ~ 12VDC
|
194(L)*165(W)*86(H)mm
|
|
Communication |
Attendance Status |
|
TCP/IP, RS232/485, USB Host*2, Wiegand out
|
Check in/out, Break in/out, Overtime in/out
|
|
Standard Function |
Customize Function |
|
High definition infrared camera; 6 user-defines function keys; Built-in relay, interface for door lock, door sensor, exit button and Alarm, Dismantlement alarm, break-in alarm, duress alarm; Scheduled bell, Workcode , SMS, T9 input, DST, Self inquiry, Photo-ID, scheduled bell, ADMS, multi-verify, webserver, Li-battery |
14-PIN code, Printer output; ID reader, Mi.fare reader, H card reader, Wifi , GPRS/3G/4G
|
Structure & Connection
FA1-H Free SDK Face Identification Door Access Control Fingerprint Attendance Device With Web Attendance Management Software
Management Software
FA1-H Free SDK Face Identification Door Access Control Fingerprint Attendance Device With Web Attendance Management Software
For FA1-H ,we can provide two types of software. One is the ZKTime 5.0, the free offline software. And the other is web based cloud server attendance management software UTime Master which is to replace ZKBioTime8.0.
And we also provide TA PUSH SDK.
If you are interested in our software or SDK, please feel free to contact me for software download links.
Email: kayla@granding.com Whatsapp/Wechat/Cell: 0086-15201823916
