Quick Details
-
Penetration:
-
34mm steel
-
Conveyor Speed:
-
0.22 m/s
-
Conveyor Max Load:
-
200 KGS
-
X ray leakage:
-
<1μGy/h
-
Film Safety:
-
ISO 1600 Film-safe
-
Generate Direct:
-
From top to bottom
-
Wire Resolution:
-
Dia 0.0787mm copper wire (AWG34)
-
Warranty:
-
2 Year
-
OEM:
-
Acceptable
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
safeway system
-
Tunnel Size:
-
1000(L)*1000(W) mm
-
Penetration:
-
34mm steel
-
Conveyor Speed:
-
0.22 m/s
-
Conveyor Max Load:
-
200 KGS
-
X ray leakage:
-
<1μGy/h
-
Film Safety:
-
ISO 1600 Film-safe
-
Generate Direct:
-
From top to bottom
-
Wire Resolution:
-
Dia 0.0787mm copper wire (AWG34)
-
Warranty:
-
2 Year
-
OEM:
-
Acceptable
Product Description

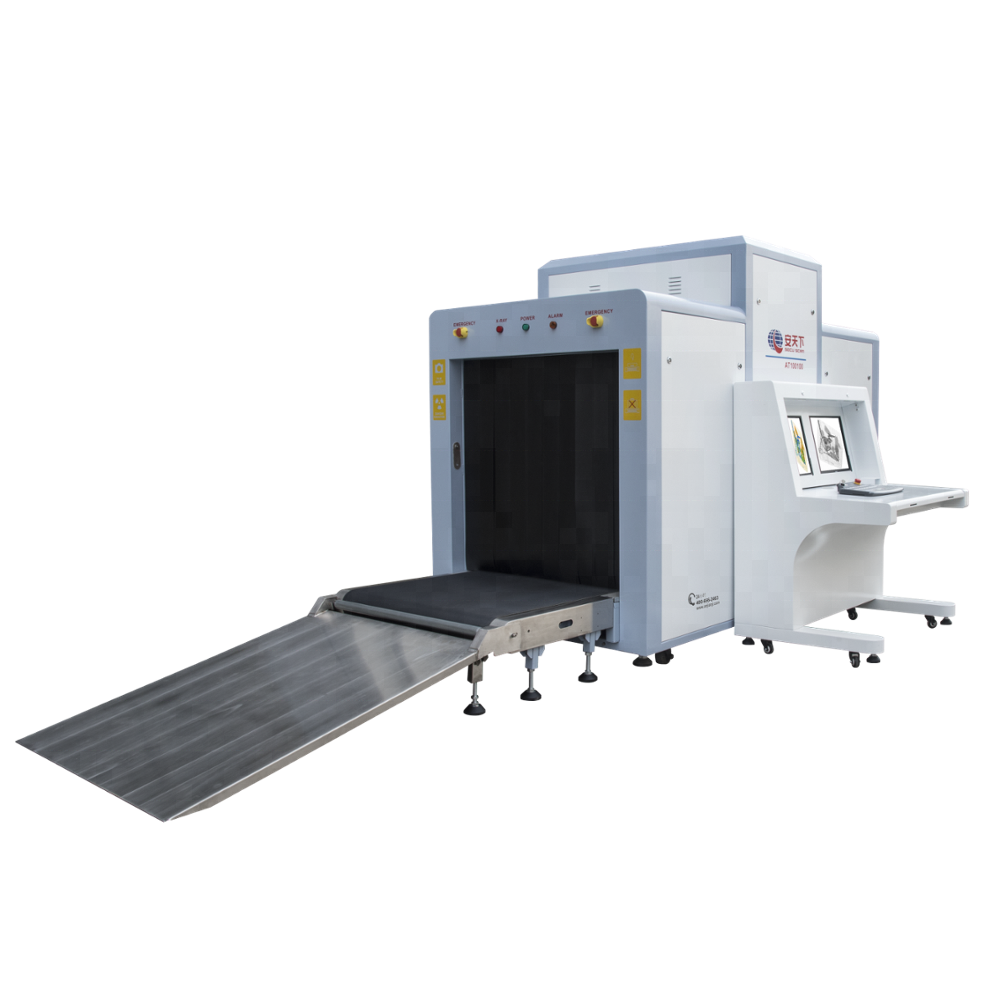

Luggage security inspection x ray baggage scanner for cargo security check with CE ISO certification
| General Specifications | |
| Tunnel size(mm) | 1000(L)*1000(W) |
| Conveyor Speed(m/s) | 0.22 |
| Conveyor height(mm) | 338.5 |
| Conveyor Max Load(kgs) | >200 |
| X ray dose per each inspection | 0.8 μGy |
| X ray leakage | <0.2 μGy / h |
| Penetration | 32mm steel |
| Wire Resolution | dia 0.102mm copper wire (AWG38) |
| Penetration Resolution | dia 0.254mm copper wire (AWG30) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm |
| Spatial resolution: | Horizontal:dia1.0mm,Vertical: dia1.0mm |
| Power Consumption | max. 1KW |
| Noise | < 58 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
100100 Dimension
