Quick Details
-
Model Number:
-
RC-3201H
-
Accuracy:
-
±1°C, ±1°C
-
Temperature range:
-
-40℃~50℃
-
Name:
-
Commercial Refrigerator Controller
-
Display:
-
LCD
-
Color:
-
Black Orange
-
Certificate:
-
CE
-
Material:
-
Plastic
-
Application:
-
Widely
-
Size:
-
15*5.6*4.7cm
-
Power supply:
-
230VAC/110V/12V/24V
-
Function:
-
temperature control
Quick Details
-
Theory:
-
Temperature controller
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RINGDER
-
Model Number:
-
RC-3201H
-
Accuracy:
-
±1°C, ±1°C
-
Temperature range:
-
-40℃~50℃
-
Name:
-
Commercial Refrigerator Controller
-
Display:
-
LCD
-
Color:
-
Black Orange
-
Certificate:
-
CE
-
Material:
-
Plastic
-
Application:
-
Widely
-
Size:
-
15*5.6*4.7cm
-
Power supply:
-
230VAC/110V/12V/24V
-
Function:
-
temperature control
This model can be customized and made full English.

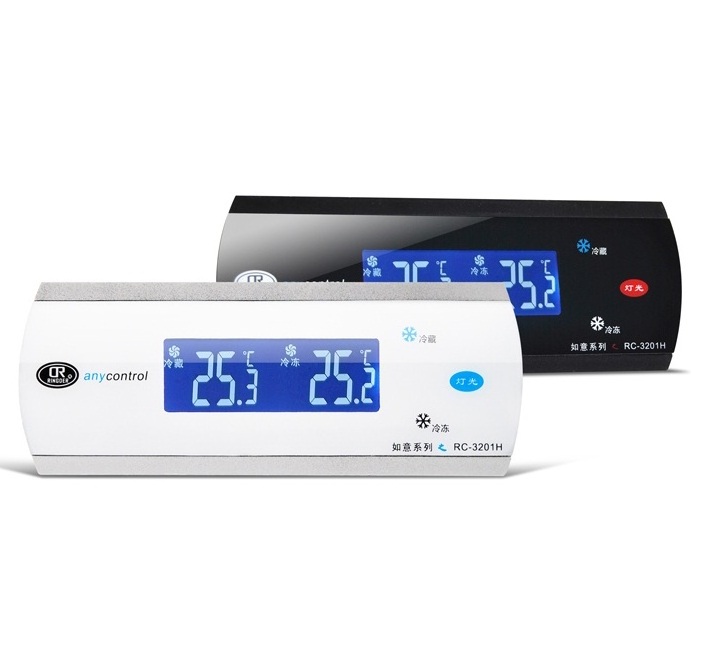

Dual Temp.Zone Dual Control+Light Temperature Controller
Features:
- LCD display
- Delay time
-
Capacitive touch buttons
- Refrigeration, freezing and light control
- Sensor error alarm
-
Acrylic color crystal panel
-
Key sound accompanied
Parameters:
- Temperature measuring and controlling range: -40~50°C
-
Relay capacity of compressor options: refrigerate-16A, freezing-16A, light-5A
- Power options: 220VAC, 110VAC, 24VAC/DC, 12VAC/DC
- Input: 2 NTC sensors
- Sensor wire: 2m (standard)
- Accuracy: ±1°C, Resolution: 0.1°C
- Consumption: ≤ 3W
-
Sensor:
NTC sensor
(2 pcs)
-
Cut-out size: 132×47(mm), product size: 150
×
56
×47
(mm)
- Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)
- Stop temperature options: (can be customized for large order).
Refrigerate:
|
9°C |
6°C |
2°C |
-1°C |
-5°C |
Freezing:
|
-4°C |
-8°C |
-18°C |
-22°C |
-25°C |
Product Size:
Application:
This series of products is mainly used for direct cooling dual temp.zone equipments and occasions, such as four door freezer, six door freezer, bench freezer, refrigeration showcase, display cabinet etc.
Wiring Diagram:
We also have other models for commercial refrigerators RC-321C with English version avaliable.
Features:
- LCD display
- Delay time
-
Capacitive touch buttons
-
Refrigeration, freezing and light control, fan control
- Sensor error alarm
-
Acrylic color crystal panel
-
Key sound accompanied
- Blue film liquid crystal display technology
Parameters:
- Temperature measuring and controlling range: -40~50°C
-
Relay capacity of compressor options: refrigerate-16A, freezing-16A
-
Power options:
220VAC, 110VAC
- Input: 2 NTC sensors
- Sensor wire: 2m (standard)
- Accuracy: ±1°C, Resolution: 0.1°C
- Consumption: ≤ 3W
-
Sensor:
NTC sensor
(2 pcs)
-
Cut-out size: 132×47(mm), product size: 150
×
56
×47
(mm)
- Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)
- Stop temperature options: (can be customized for large order).
Application:
This series of products is mainly used for direct cooling dual temp.zone equipments and occasions, such as four door freezer, six door freezer, bench freezer, refrigeration showcase, display cabinet etc.
