Quick Details
-
Dimension(L*W*H):
-
1600*1500*1400mm
-
Weight:
-
850 KG
-
Product name:
-
Wood Chips Making Machine
-
Application:
-
Waste Wood Shredder
-
Usage:
-
Crush Biomass Waste Wood
-
Raw material:
-
Waste Wood Branch
-
Power:
-
22KW
-
Capacity:
-
0.8t-1.2t
-
Color:
-
Customer Requirements
-
Keywords:
-
Wood Shredder Crusher Machine
-
Function:
-
Wood Log Chipping Crusher
-
Package:
-
Wooden Case
Quick Details
-
Use:
-
Waste Wood Crusher
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OEM
-
Dimension(L*W*H):
-
1600*1500*1400mm
-
Weight:
-
850 KG
-
Product name:
-
Wood Chips Making Machine
-
Application:
-
Waste Wood Shredder
-
Usage:
-
Crush Biomass Waste Wood
-
Raw material:
-
Waste Wood Branch
-
Power:
-
22KW
-
Capacity:
-
0.8t-1.2t
-
Color:
-
Customer Requirements
-
Keywords:
-
Wood Shredder Crusher Machine
-
Function:
-
Wood Log Chipping Crusher
-
Package:
-
Wooden Case
CE Approved Wood Branches Hammer Mill Waste Wood Crushing Machine Wood Pallet Shredder For Forest Farm
Specification
Wood Hammer Mill Wood crushing Machine Specifications
According the the different process production, we have different models for the wood crusher, you can check the below specification to check which model you prefer to , if you have any interest, you can contact us freely, we glad to provide more professional recommend to you.
|
Model
|
ZS-SC-500
|
ZS-SC-600
|
ZS-SC-800
|
ZS-SC-1000
|
|
Feed Diameter
|
80mm
|
100mm
|
120mm
|
160mm
|
|
Capacity
|
800-1200KG/H
|
1000-1500KG/H
|
2000-3000KG/H
|
3000-4000KG/H
|
|
Inlet Size
|
500*250mm
|
600*350mm
|
800*380mm
|
1000*420mm
|
|
Hammer Qty
|
30pcs
|
40pcs
|
60pcs
|
70pcs
|
|
Motor Power
|
22kw
|
30kw
|
55kw
|
75kw
|
Product Description

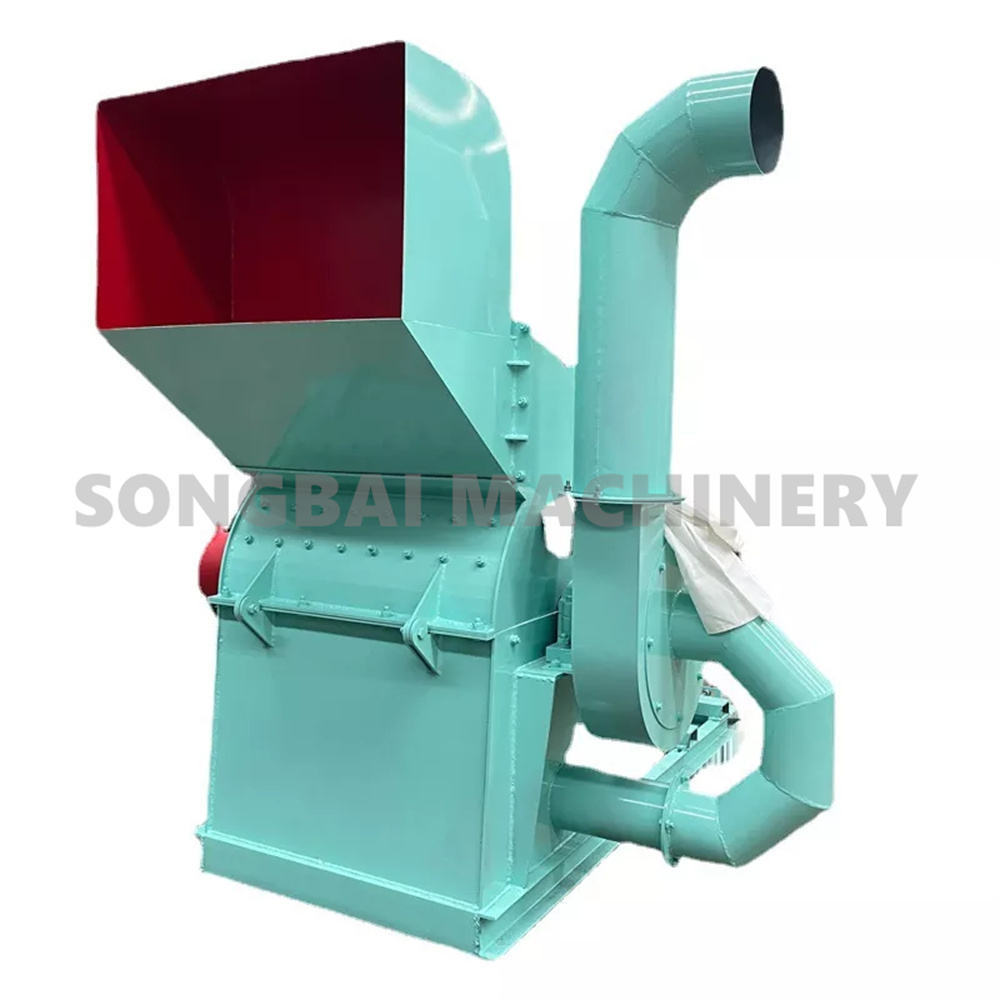

The Introduction Of Wood Hammer Mill Sawdust Making Machine
Hammer crusher is composed of feeding hopper,upper and lower body, rotor, screen, feeding tube and other parts. Users can be equipped with storage bags or silos according to their own needs. After the material enters the crushing chamber from the hopper, it is broken by the high-speed rotating hammer.
Under the air flow, the broken material along the outer edge of the rotor, continuous and hammer, tooth plate, screen, collision,rub and be quickly crushed. The pulverized powder particles are quickly transported to the storage bag or bin through the sieve by centrifugal pressure of the rotor and suction force of the fan.
Under the air flow, the broken material along the outer edge of the rotor, continuous and hammer, tooth plate, screen, collision,rub and be quickly crushed. The pulverized powder particles are quickly transported to the storage bag or bin through the sieve by centrifugal pressure of the rotor and suction force of the fan.
Features--low noise wood waste crusher machine
1.Belt conveying , compact structure, easy to operate, all of all rotors pass an accurate dynamic balancing test, less vibration during running.
2.The raw materials can be crushed into sawdust directly.
3.The durable crusher works with high efficiency and gains more good reputation from European users.
4.blade type:hammers blades.
5. Even crushing function of multi-cavities which is suitable to crush hard materials.
6. Reasonable design of leveling plate making the finished material finer and cubic-shaped without internal cracks.
7. Low and big feed opening make the production line easy to arrange and increase the size of feeding material.
8. New anti-abrasive material which prolong service life of impact hammers ,impact plate and liner.
2.The raw materials can be crushed into sawdust directly.
3.The durable crusher works with high efficiency and gains more good reputation from European users.
4.blade type:hammers blades.
5. Even crushing function of multi-cavities which is suitable to crush hard materials.
6. Reasonable design of leveling plate making the finished material finer and cubic-shaped without internal cracks.
7. Low and big feed opening make the production line easy to arrange and increase the size of feeding material.
8. New anti-abrasive material which prolong service life of impact hammers ,impact plate and liner.
Wood Chipper Shredder Sawdust Making Machine Wood Pallet Crusher Application
The wood crushers are for grinding the Bio-mass like straw, coconut shell , stalk, tree branch, wood board, wood log, pallet, forest waste to be powder of less than 3-5mm directly. It is also ideal machine for farming material like dry or fresh seeding of yam, peanut, rice and other plants, husks, maize, wheat, beans of all.
Packing & Delivery
Multifunction Wood Crusher Chipper Log Grinding Machine Sawdust Shaving Making Machine packing and shipping
Packed in standard wooden case
Shipping by sea
