Quick Details
-
Nature:
-
IPTV Streaming Encoder
-
Video input:
-
HD INPUT
-
IP Protocol output:
-
HLS/RTMP/RTSP/HTTP/UDP
-
Video Encoding:
-
H.265 HEVC/H.264(MPEG4/AVC)
-
Audio Encoding:
-
AAC, MP3
-
Resolution:
-
Up to 4K
-
Bitrate:
-
VBR/CBR
-
Configuration Interface:
-
Web operation
-
Application:
-
IPTV Headend Systems
-
Name:
-
IPTV OTT Server
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST/DTVANE
-
Model Number:
-
DMB-8900NU
-
Nature:
-
IPTV Streaming Encoder
-
Video input:
-
HD INPUT
-
IP Protocol output:
-
HLS/RTMP/RTSP/HTTP/UDP
-
Video Encoding:
-
H.265 HEVC/H.264(MPEG4/AVC)
-
Audio Encoding:
-
AAC, MP3
-
Resolution:
-
Up to 4K
-
Bitrate:
-
VBR/CBR
-
Configuration Interface:
-
Web operation
-
Application:
-
IPTV Headend Systems
-
Name:
-
IPTV OTT Server
GoMix Free Software
Including 8K video sources, LIVE mixing and switching, publish locally, LIVE streaming, recording and produce
ISS-7000 Transcoder
IP Output(Max.): 100 Channels
Recording format:
AVI, TS, MP4, MPEG-1,MPEG-2,MPEG-4,WMV
DMB-8800N Ult
4G/3G LTE/WIFI/Internet(Switchable) low power consumption design & Running time up to 5-6 hours by full built-in Lithium battery.
DMB-8900B Decoder
Up to 4K@25/30fps
With HLS, RTMP, RTSP, UDP, HTTP protocol
low Latency: less than 200ms working with DIGICAST encoder over LAN
Receiver DMB-9016B
Input: 16*Tuner(DVB-S/S2/C/ATSC optional), without CI slot(FTA),
Output: 512*SPTS or 16*MPTS over IP(GigE)+2*ASI(independent),BISS decryption, Multiplexing, SimulCryption, DVB-CSA scrambling(optional).
IRD and Receiver
It supports various of Tuners and IP input which can be selected respectively from DVB-S/S2, DVB-T/T2, and DVB-C ISDB-T
Multi-Service IP Processor
Data input: 1024*IP(SPTS/MPTS) input over UDP/RTP, 2*GigE ports;
Data output: 16*IP output over UDP/RTP/RTSP, 2*GigE ports; RF output (F type): 16*DVB-C non-adjacent carriers. Capable of Multiplexing and scrambling.DVB Encoder
Support 1080P Full HD. ASI input, 8*SDI or HDM I input. ASI and TSoIP output
Optional---- 1080i/720P HD ,Closed Caption (EAI608/708) ,AC3 pass through, 2 stereo or 4 Mono audio encoding , LC-AAC,HE-AAC(v2).
Modulator
Providing DVB-T and DVB-T2 modulation mode switchable.
4*ASI inputs for multiplexing
RF frequency range: 30MHz~999MHz
Overview
In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms.

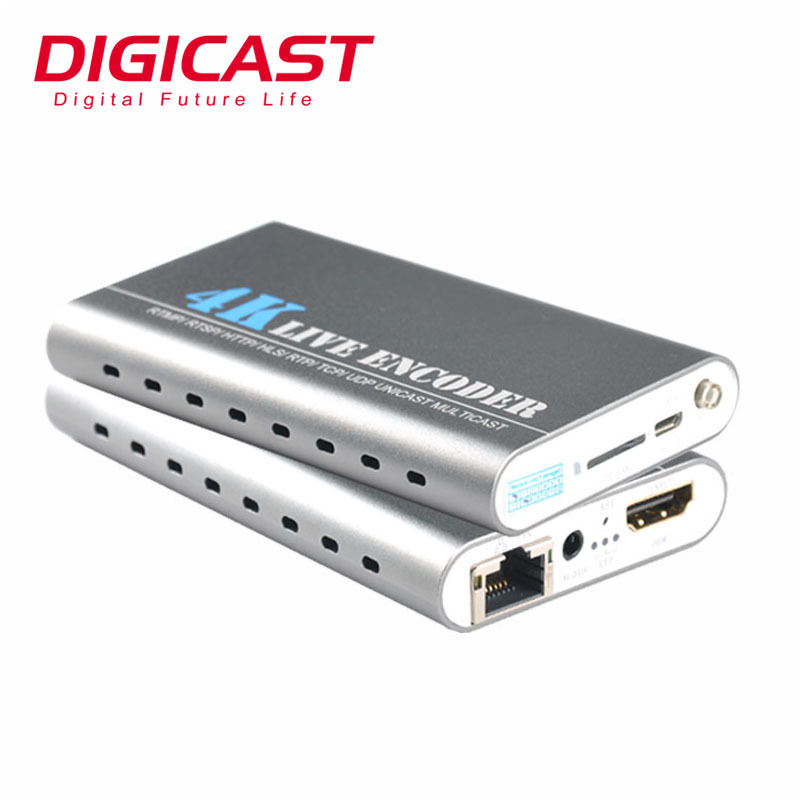

DMB-8900NU UHD HEVC ProVideo Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/HEVC, which realizes its resolution to be up to 4K/30fps. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth. DMB-8900NU UHD accepts 1*HDMI/SDI input, then output 4 groups TS over IP in H.265 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs.
DMB-8900NU UHD provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
4K IPTV Encoder Highlights.
Video Input: one channel HDMI/SDI for option
Video compression up to Full HD 4K@30fps
Resolution:3840*2160/2560*1440/2048*1152/1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customized)
Support Main TS stream and the sub TS stream use in different protocol.
Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:
Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S
Video packaging: A mode: FFMPEG, B mode: VLC
Transmission: TCP, UDP, 100M for configuration. 1000M for transmission (RJ45 Duplex network port)
Support Text/ image OSD, images superimposing.
Adjustable coordinates: 1920x1080; the font size: 8 to 72.
Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
4K IPTV Encoder Highlights.
Support encoding without video signal;
Take effect immediately when applied the settings, don't need to restart.
Support one-key recovery to default setting.
Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
Switchable of audio output mode: Left, right and Stereo
Configurable of Multi-bitrate, Multi-resolution, Multi-protocol
Providing HLS, RTSP, HTTP, UDP and RTMP protocol
Compatible with HDCP, ONVIF Network Video Protocol
Any IOS browsers (iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.
Web-based management
Q1: Where is your Factory located? How can I visit your company?
A1: Our factory is located in Hangzhou City, Zhejiang Province of China.
From
Shanghai
, 1.5 hours by Train, 30mins by intercity high-speed rail.
From
Shenzhen
, 11 hours by Train,2 hours by Aircraft
Q2: Can I get some Samples for testing? Is it free?
A2:We are honored to offer you samples,but samples will be charged because of it's high value.
While to ensure the products are bought correctly and safely, we will offer online test for customers' evaluation.
Q3: Can you provide OEM service as per our request? Is it free?
A3: With our professional & experienced design team, we can provide OEM service by replacing your company logo on chassis, software interface as well as carton.
Please consult the sales for detailed requirements.
Q4: What about your Warranty?
A4: All products has
5 years' warranty.
We offer technical supports online/phone, repair services by our experienced after-sales specialist.
Service time: 9:00AM~23:59PM(GMT+8)
Q5: What is your Lead time and method of Shipment?
A5: All goods are in stock, just need 100% QC testing and Aging before sending out.
Usually it takes 3~7 working days after the full payment received.
Note:
1: There will be a little delay at busy season.
2: Sometimes the hot-sales products will be out of stock.
Q6: Your Method of shipment?
A6:Transportation by International Express like FedEx, UPS, DHL, TNT, EMS etc, takes 3-6 days from China to world,
we will choose the best way for you based on our history data, ensure the package will be received safely and smoothly.
Q7: What's your Payment method supported?
A7: We accept T/T bank transfer, Paypal(Credit Card), Western Union, MoneyGram ,Alibaba Trade Assurance,etc.
Q8: Can I order Online(on alibaba website )?
A8:Firstly,make sure you have an alibaba account registered with your frequency-used email address.
Then find the product you want to order.Click the "Buy now" or "Start order" button.
Follow the steps alibaba guided or contact supplier directly for Guidance.
Q9:How can I Pay on Alibaba?
A9:You can pay whether to the appointed Citibank account by Bank Transfer or by Credit Card online.
Note: Credit card: Takes 2 days for the payment to be received. (MasterCard or Visa supported for now)
Citibank transfer: Takes 1~5 days for the payment to be received.
