Vibrating separator is designed with different sieve to remove the impurities according to the different length, width, thickness and weight between the grain and impurities. under the function of vibration motor, the materials on the sieve will vibrate and
de-compact inordinately, so the materials will grade automatically.
- Product Details
- {{item.text}}
Quick Details
-
Type:
-
Grain Processing Equipment
-
Use:
-
clean seed grain bean
-
Production Capacity (kg/h):
-
1000 - 20000
-
Sieve Size(mm):
-
machine configuration
-
Power (kW):
-
0.25*2
-
Weight:
-
1650 KG
-
Product name:
-
Seed Cleaning Sieve Vibrating Sieve Mchine With Air Recycling
-
Usage:
-
Cleaning Cereal Grains
-
Function:
-
Remove Impurities
-
Supply range:
-
Turnkey Project, seed processing plant and grain
-
Voltage:
-
380V/50HZ
-
Keywords:
-
Grain Processing Equipment
-
Raw material:
-
Carbon Steel
-
Capacity:
-
1~100T/H
-
Power:
-
0.25~1.1kw
-
Size:
-
Customzised
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wanyi
-
Dimension(L*W*H):
-
machine configuration
-
Type:
-
Grain Processing Equipment
-
Use:
-
clean seed grain bean
-
Production Capacity (kg/h):
-
1000 - 20000
-
Sieve Size(mm):
-
machine configuration
-
Power (kW):
-
0.25*2
-
Weight:
-
1650 KG
-
Product name:
-
Seed Cleaning Sieve Vibrating Sieve Mchine With Air Recycling
-
Usage:
-
Cleaning Cereal Grains
-
Function:
-
Remove Impurities
-
Supply range:
-
Turnkey Project, seed processing plant and grain
-
Voltage:
-
380V/50HZ
-
Keywords:
-
Grain Processing Equipment
-
Raw material:
-
Carbon Steel
-
Capacity:
-
1~100T/H
-
Power:
-
0.25~1.1kw
-
Size:
-
Customzised
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Certification:
-
CE
Product Description
Tqlz Series Seed Cleaning Sieve Vibrating Sieve Machine With Air Recycling Aspirator For Flour Mill
Series TQLZ sieving machine is designed for separating impurties of large,middle and small sizes as well as light weight from the grain. The use of preferred components such as vibratory motor and damping rubber spring in the screens of this series offers good performance,i e,low noice steady operation,great capacity,low energy consumptinideal cleaning ffectsfully enclosed unit,and so on,The associated vertical air suction duct of Series TFDZ is also used together with other cleaning equipment to separate such light impurity as dust and husk pieces,Therefore,these screens have been broadly used in rice mling four mlingoi xraingFeedinn industry and fod industries and chemical industry.
Features:
- Large capacity up to 100 tons/hour
- low power consumption
- quick and easy to change the sieve
- the inclination of the sieve can be adjusted as required.
- add rubber balls under the screen to reduce the blockage of the screen
- in order to optimize the cleaning effect, air suction channel or air circulation suction device can be used together with the machine.In this way, light impurities such as dust and shells can also be removed.
- widely used in flour mills, feed mills, seed purification plants, chemical plants and rice milling plants for wheat, corn, oats,soybeans, sesame, buckwheat, oilseeds and rice.
- low power consumption
- quick and easy to change the sieve
- the inclination of the sieve can be adjusted as required.
- add rubber balls under the screen to reduce the blockage of the screen
- in order to optimize the cleaning effect, air suction channel or air circulation suction device can be used together with the machine.In this way, light impurities such as dust and shells can also be removed.
- widely used in flour mills, feed mills, seed purification plants, chemical plants and rice milling plants for wheat, corn, oats,soybeans, sesame, buckwheat, oilseeds and rice.
Working principle
1) Two layer sieves make the machine with perfect cleaning effection.
2) The degree of sieves are adjustable.
3) Two vibrating motors drive the machine, stable running, low power and low noise.
2) The degree of sieves are adjustable.
3) Two vibrating motors drive the machine, stable running, low power and low noise.
Size Information
|
Model
|
Dimensions(mm)
|
Screen size(mm)
|
power (kw)
|
weight(kg)
|
capacity(t/h)
|
|
TQLZ 60X125
|
1550X1100X1350
|
60X125
|
0.25X2
|
260
|
1-3
|
|
TQLZ 80x125
|
1650X1300X1350
|
80x125
|
0.25X2
|
320
|
3-5
|
|
TQLZ 100x150
|
2150X1600X1550
|
100x150
|
0.25X2
|
500
|
5-10
|
|
TQLZ 125x150
|
2150X1850X1550
|
125x150
|
0.25X2
|
700
|
10-20
|
|
TQLZ 125x200
|
2650X1850X1550
|
125X200
|
0.25X2
|
850
|
20-30
|
|
MTRB 150X200
|
2650X2100X1850
|
150X200
|
0.37X2
|
1000
|
30-50
|
|
MTRB 180X270
|
3160X2400X2520
|
180X270
|
0.75X2
|
2000
|
50-80
|
|
MTRB 200X270
|
3360X2600X2520
|
200X270
|
1.1X2
|
2400
|
80-100
|
Detailed Images

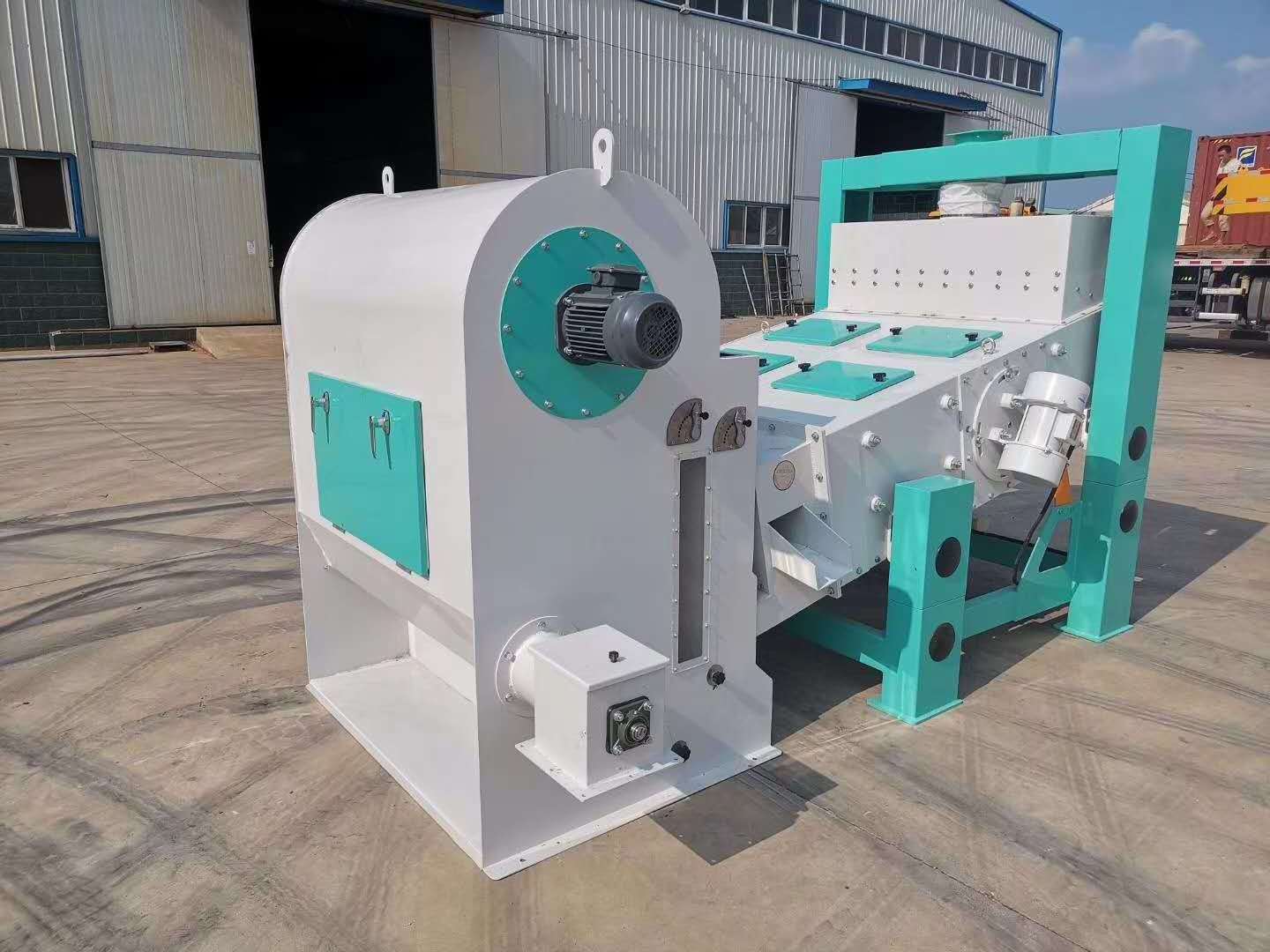

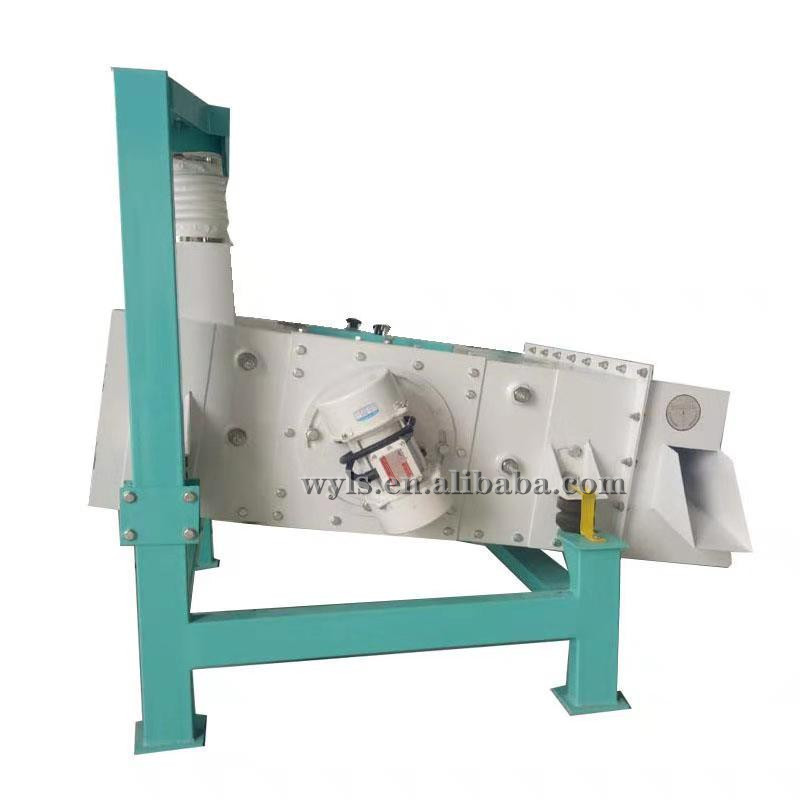

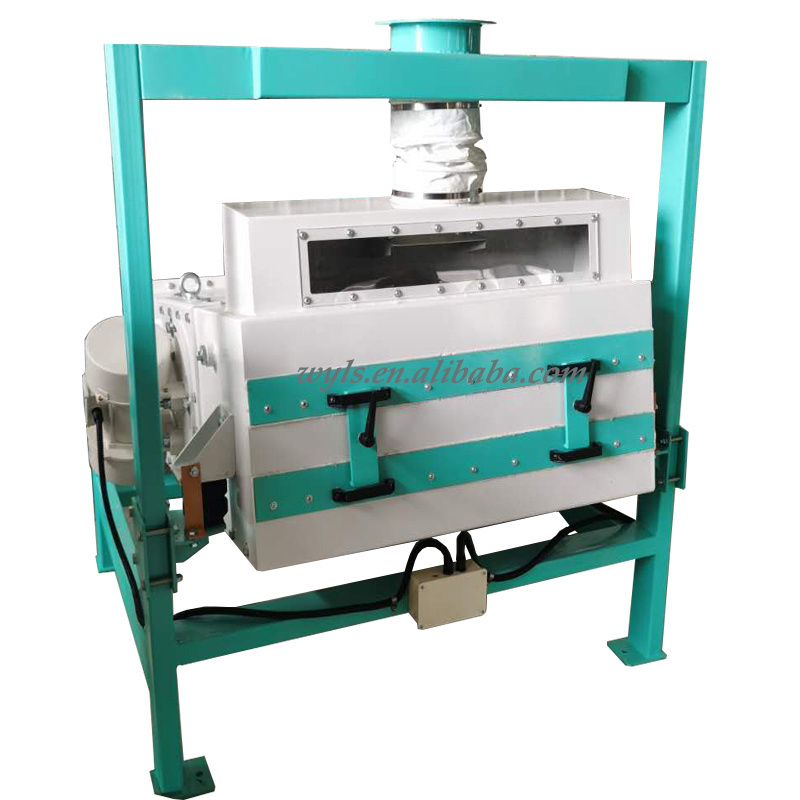

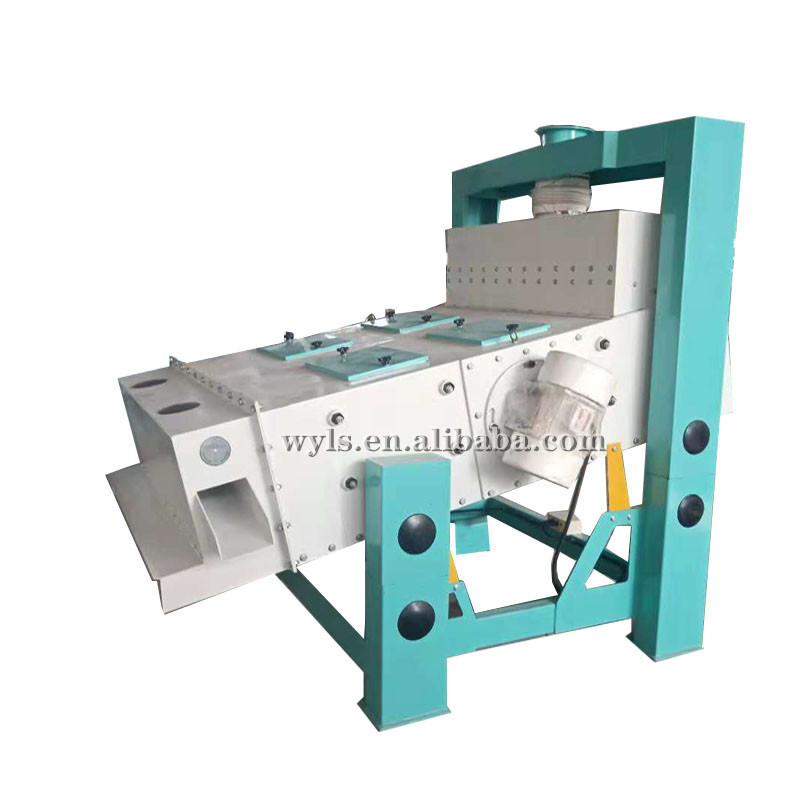

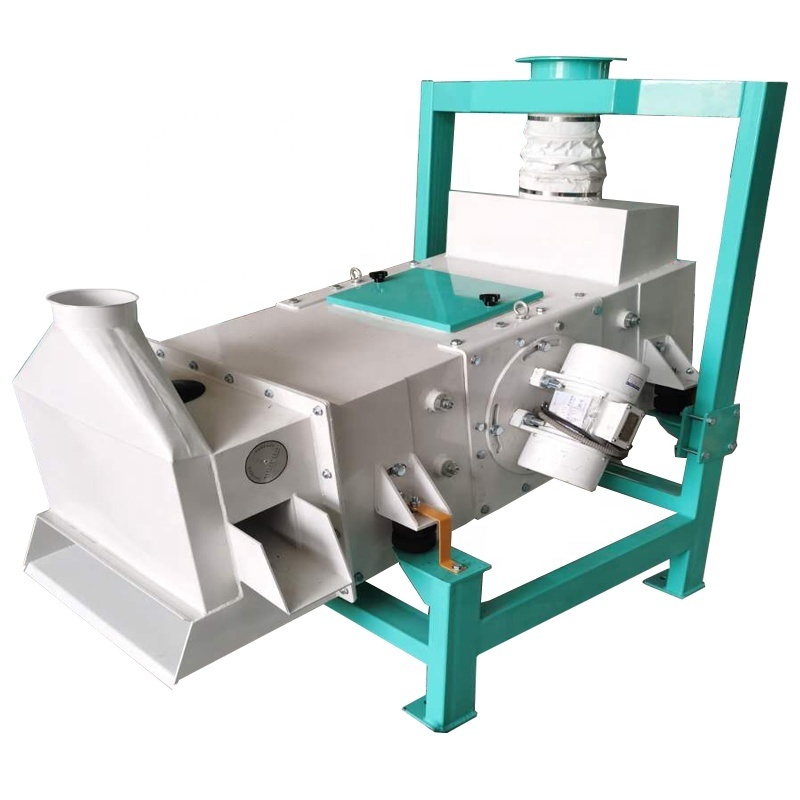

TQLZ Series Vibro Cleaning Sieve with Air Recycling Aspirator for Flour Mill
TQLZ series vibration sieving cleaning screen is also known as classifier, mainly used for grain cleaning and cleaning.The sieve has two layers. The first layer can separate out coarse impurities larger than the material (such as large pieces of wood, leaves,stringand straw), while the second layer can separate out fine impurities smaller than grain (such as sand and small pieces of gravel).It can also sort and clean various materials according to different sizes.
The vibrating sieving screen machine for grain cleaning and classifying
* Widely used in Milled rice, powder, oil, feed, food and chemical industry.
* Also used in Chemical, Oil, and other industries
Related Products
Packing&Shipping
Tqlz Series Seed Cleaning Sieve Vibrating Sieve Mchine With Air Recycling Aspirator For Flour Mill
|
Packing Details
|
Export standard seaworthy plywood case for LCL shipment Or bare container transportation
Plastic wrapped or loose package for Grain vibration screen cleaner container load. |
|
Shipping Port
|
Qingdao/Tianjin/Shanghai,according to our client requirment
|
|
Lead Time
|
7~20 workdays, depending on parts availability.
|
After Sales Service
FULL SERVICE
Our Service and Payment Terms
1. We usually accept T/T, L/C;
2. T/T: 30% in advance as down payment, the balance before delivery;
3. We take pictures of finished products before delivery.
Company Introduction
Our factory view
Henan Luohe Wanyi Grain Machinery Co., Ltd. (formerly Yancheng Yongfeng Grain Machinery Factory www.lhyflj.com) is located in the Economic Demonstration Zone of Luohe City, Henan Province. Founded in 2008, the company covers an area of 15,000 square meters. Manufacturers of flour milling equipment, grain conveying equipment, machinery and equipment, grain cleaning equipment, and agricultural products processing machinery and equipment. An advanced enterprise integrating product research and development, manufacturing, engineering design, installation and commissioning. It has 280 employees, 58 high-level and mid-level technicians and scientific research management personnel, and has advanced mechanical processing equipment and new products. Design R&D center, the company has strong technical force and complete processing procedures.
The products developed and operated by Wanyi Grain Machinery Company include TDTG series bucket elevators, LSS series screw conveyors, TQLZ series vibrating cleaning screens, TQLM series plane rotary screens, TQSF and MTSC series stone removal machines, TGSS and THSS series scrapers. Conveyor, TDXZ series silo bottom vibration unloader and BLM series pulse bag filter and other advanced supporting equipment. Luohe Wanyi Grain Machinery Co., Ltd. undertakes a complete set of engineering optimization plans for a flour production line of 5-1000 tons and a grain production line with a daily output of 5-200 tons, and implements a one-stop service from plant planning, equipment modeling, engineering design to installation and commissioning.
