Quick Details
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
750*800*900
-
Weight:
-
80 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
hammer mill
-
Application:
-
feed processing plant
-
Other Application:
-
Crushed wood straw corn
-
Function:
-
Crush corn, sorghum and various grains
-
Other Function:
-
Crush peanut seedlings, sweet potato seedlings, dried weeds, etc.
-
Color:
-
Customized Color
-
Number of hammers:
-
12-48
-
Motor power:
-
3--45kw
-
Material:
-
304 Stainless Steel
Quick Details
-
Max. Capacity:
-
200-6000kg/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAIFENG
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
750*800*900
-
Weight:
-
80 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
hammer mill
-
Application:
-
feed processing plant
-
Other Application:
-
Crushed wood straw corn
-
Function:
-
Crush corn, sorghum and various grains
-
Other Function:
-
Crush peanut seedlings, sweet potato seedlings, dried weeds, etc.
-
Color:
-
Customized Color
-
Number of hammers:
-
12-48
-
Motor power:
-
3--45kw
-
Material:
-
304 Stainless Steel
Maize Corn Hammer Mill Crusher Feed Processing Maize Corn Soybean Bran Nut Shell Grinder Machines
Product Overview

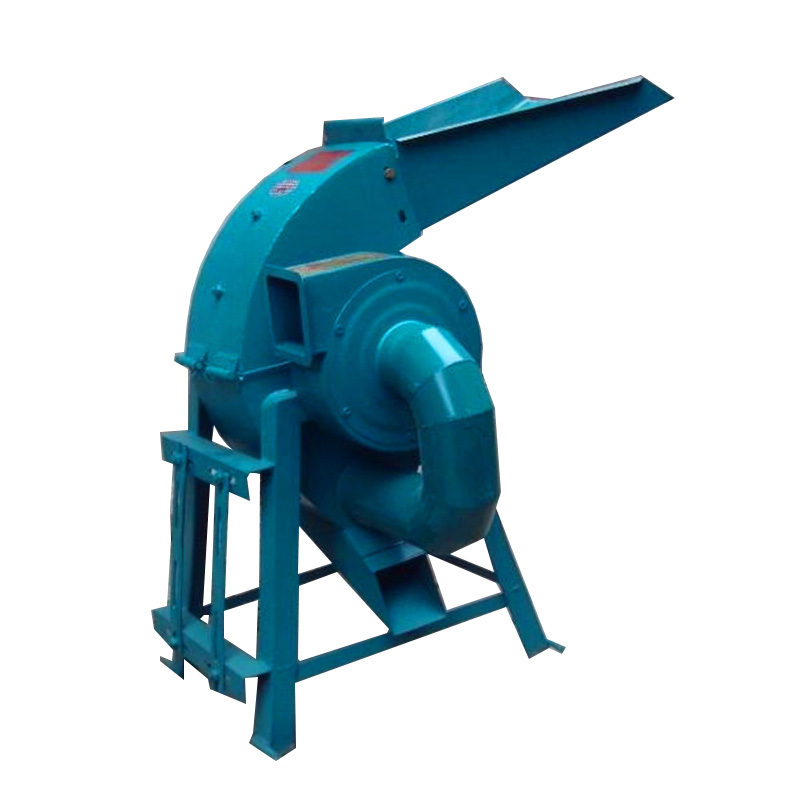

Hammer Crusher
The hammer crusher consists of several parts such as a material holding slide, a crushing chamber, and a conveying device. There is a rotor in the crushing chamber, which is composed of a disc and a movable hammer. The screen and tooth plate are also the main working parts of the crusher. During operation, the processed materials enter the crushing chamber from the loading slide and are subject to repeated impact, friction and collision on the tooth plate by the rotating hammer, and are gradually crushed to the required particle size and leaked through the sieve holes. The leaked feed is sent to the polymer barrel through the conveyor fan and conveyor pipe, and is separated again in the polymer barrel. The powder is discharged from the bottom and bagged, and the air is discharged from the top.
The purpose and characteristics of this series of crushers can crush various raw materials, such as corn, sorghum, wheat, beans, corn stover, peanut seedlings, sweet potato seedlings, peanut skins, dried weeds and other miscellaneous grains and dry feeds
and coarsely crushed cakes. The machine has a reasonable structure, is sturdy and durable, safe and reliable, easy to install, easy to operate, and has low vibration. It is suitable for use alone or in conjunction with various feed mills.
PRODUCT SPECIFICATIONS
|
type
|
power
|
production capacity kg/h
|
Number of hammer pieces/piece
|
crushing chamber
mm
|
|
280
|
2.2KW
|
100-120
|
12
|
280
|
|
340
|
3KW
|
200-300
|
16
|
340
|
|
400
|
7.5KW
|
400-500
|
16
|
400
|
|
420
|
11KW
|
600-800
|
16
|
420
|
|
500
|
15KW
|
1000-1500
|
20
|
500
|
|
50-30
|
18KW
|
2000-2500
|
24
|
530
|
|
50-40
|
22KW
|
3000-3500
|
32
|
600
|
|
50-50
|
30KW
|
4000-4500
|
40
|
680
|
|
50-60
|
37KW
|
5000-5500
|
48
|
760
|
|
50-80
|
45KW
|
6000-7000
|
48
|
800
|
|
|
|
|
|
|
