Quick Details
-
Product Name:
-
Speaker Lifting Truss Tower for Line Array
-
Material:
-
Aluminum
-
Color:
-
Black Sliver or Customized
-
Height:
-
1.96m~6.50m
-
Weight:
-
245kg
-
Load Capacity:
-
30kg~350kg
-
Application:
-
Exhibition Concert Stage Trade Show
-
Keywords:
-
Line Array Truss Tower
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KKMark
-
Model Number:
-
KK-T16
-
Product Name:
-
Speaker Lifting Truss Tower for Line Array
-
Material:
-
Aluminum
-
Color:
-
Black Sliver or Customized
-
Height:
-
1.96m~6.50m
-
Weight:
-
245kg
-
Load Capacity:
-
30kg~350kg
-
Application:
-
Exhibition Concert Stage Trade Show
-
Keywords:
-
Line Array Truss Tower

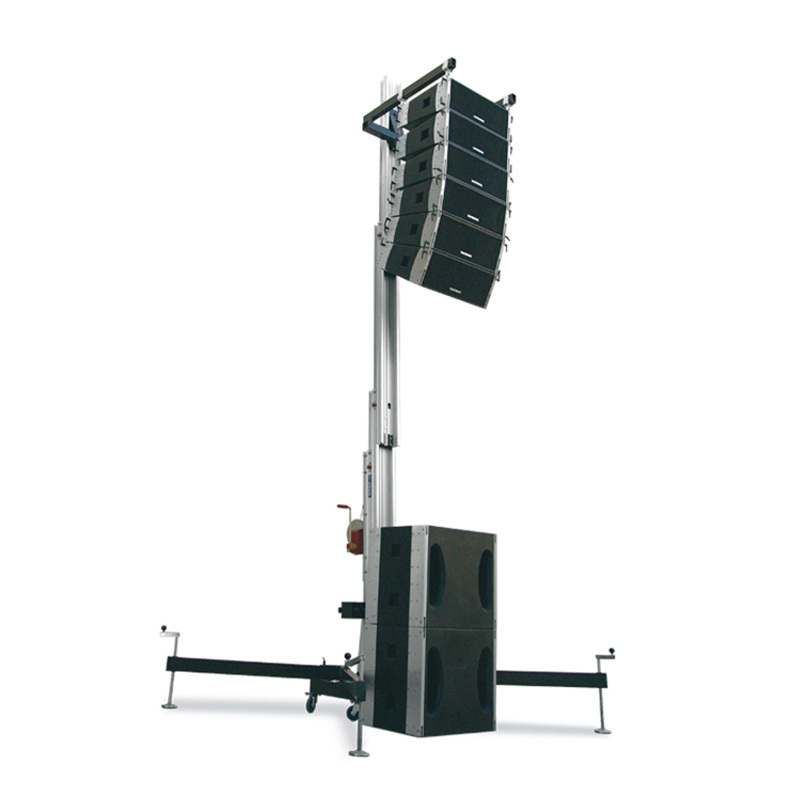

2019 KKMark Speaker Lifting Truss Tower for Line Array
This is a top quality lifter specially designed for Line Array systems. To support heavy Line Array systems, the loudspeaker bracket has been strengthened, taking into account strain exerted by the loudspeaker.
Metal wall thickness and subjection rings ensure the right distribution of the weight on the bracket. The high quality automatic brake winch, steel made pulleys and oversized cable guarantee that fold/unfold operations will be successfully achieved.
| Item NO. | Line Array Speaker Truss Tower |
| Material | Aluminum |
| Load Capacity | 30 kg ~ 350 kg (66.14 Lb ~ 771.62 Lb) |
| Height | 1.96 m ~ 6.50 m (6.43 ft ~ 21.33 ft) |
| Color | Black Sliver or to Your Request |
| Weight | 245 kg |
| Unfolded Base | 2.51 x 2.15 m (8.23 x 7.05 ft) |
| Folded Base | 0.75 x 0.74 m (2.46 x 2.43 ft) |
Feature:
-
Four extensible profiles made of extruded aluminium.
-
Internal Pendular System (IPS).
-
Diagonal bar behind the lifter for additional reinforcement.
-
Four wheels at the base of the lifter.
-
Stabilizer legs are put in the space provided for more convenience during transport.
-
The powerfull auto-blocking bolts have been oversized to hold heavy loads during lifting operation.
Our factory warmly welcome your customized order. You can decide any size, shape, design, logo as you like. We will be appreciated if you can provide the following information:
1.
Line Array Tower type
2.
Material structure and thickness
3.
Line Array Tower
dimension
4.
Line Array Tower
color(black, sliver etc)
5.
If possible, please provide the picture or artwork of the
Line Array Tower
If you are not sure for any of above, we can recommend for you.
Once we get above information we will quote exact price at soonest time.
Click→ Contact US!
| Packaging & Shipping | ||
| Shipping Time | By sea | 15-60 days |
| By air | 4-9 days | |
| By express | 4-9 days | |
| Delivery Time | 7-15 working or as your requires | |
| Packaging | By carton or as your requirement | |
