LS108H Spectrum Transmission Meter with UV IR Light Transmittance Tester 3 in 1 function Glass Transmission Meter

LS108H Spectrum Transmission Meter with UV IR Light Transmittance Tester 3 in 1 function Glass Transmission Meter

FOB Reference Price: Get Latest Price

≥1 Sets

US $300

≥3 Sets

US $294

≥5 Sets

US $288

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: VTSYIQI

Model Number:: LS108H

UV Peak wavelength:: 365nm

IR Peak wavelength:: 940nm

Visible light:: 380nm-760nm, in line withCIE photopic luminosity function

Resolution:: 0.1%

Measurement accuracy:: ± 2% (colorless and uniform transparent material)

Power Supply:: 5V AC/DC Adapter or mobile power (optional)

Quick Details

Warranty:: 1 year

Power:: Electronic

Place of Origin:: Anhui, China

Brand Name:: VTSYIQI

Model Number:: LS108H

UV Peak wavelength:: 365nm

IR Peak wavelength:: 940nm

Visible light:: 380nm-760nm, in line withCIE photopic luminosity function

Resolution:: 0.1%

Measurement accuracy:: ± 2% (colorless and uniform transparent material)

Power Supply:: 5V AC/DC Adapter or mobile power (optional)

Products Description

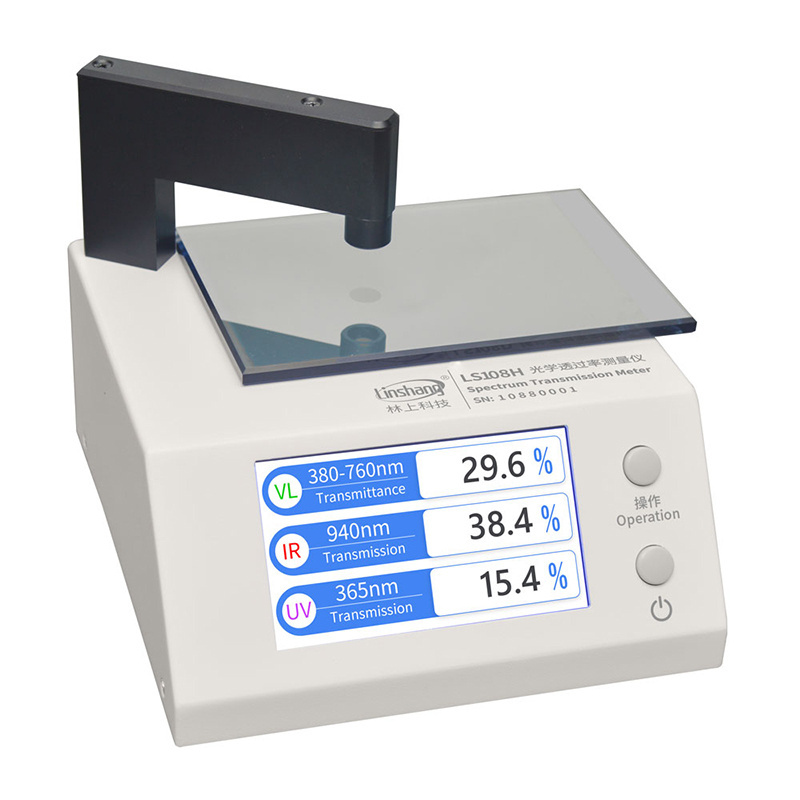

LS108H Spectrum Transmission Meter with UV IR Light Transmittance Tester 3 in 1 function Glass Transmission Meter

LS108H spectrum transmission meter is a desktop instrument, which is professionally used for optical transmittance test of various materials such as lens, glass, coating material, organic material and paint, etc. The test aperture of the meter is 1mm, which is suitable for the measurement of light transmittance, infrared and ultraviolet transmittance of small-sized materials. The flat bench-top meter is convenient for placing various test samples. The test is fast and accurate. Once the test material is placed on the meter, the test results will be displayed immediately. The meter use parallel light path design that can measure thick materials.

The LS108H optical transmittance tester use ultraviolet light source, infrared light source and visible light source to
illuminate the transparent material under test. The sensor detects the incident light intensity of the three light sources and the light intensity after passing through the transparent material under test. The ratio of the over light intensity to the incident light intensity is the transmittance, expressed as a percentage.

Features

1. Three light sources share a test hole, which can obtain 380nm-760nm visible light transmittance, 940nm infrared and 365nm ultraviolet transmittance in one measurement, easy to operate and save time.

2. Parallel light design, the measurement results of testing large thickness materials are also stable and accurate.
3. The test aperture is 1mm, which can test the transmittance of small-sized materials.

4. The light transmission meter has a real-time dynamic self-calibration function, which automatically calibrates to 100%
transmittance after startup.

5. It is suitable for the transmission test of lens, paint, glass, mobile phone lens, organic
material, etc.
6. Large LCD display, Chinese and English interface can be selected.

7. 5V power supply, convenient to connect with mobile power (charging treasure).

Application

Test Remote Control Window IR Hole

Test Glass

Test Acrylic

Product Paramenters

UV peak wavelength	365nm
IR peak wavelength	940nm
Visible light	380nm-760nm, in line withCIE photopic luminosity function
Minimum test sample size	￠1mm
Resolution	0.1%
Measurement accuracy	± 2% (colorless and uniform transparent material)
Weight	About 1570g
Dimension	170mm × 180mm × 144mm(LHW)
Power Supply	5V AC/DC Adapter or mobile power (optional)
