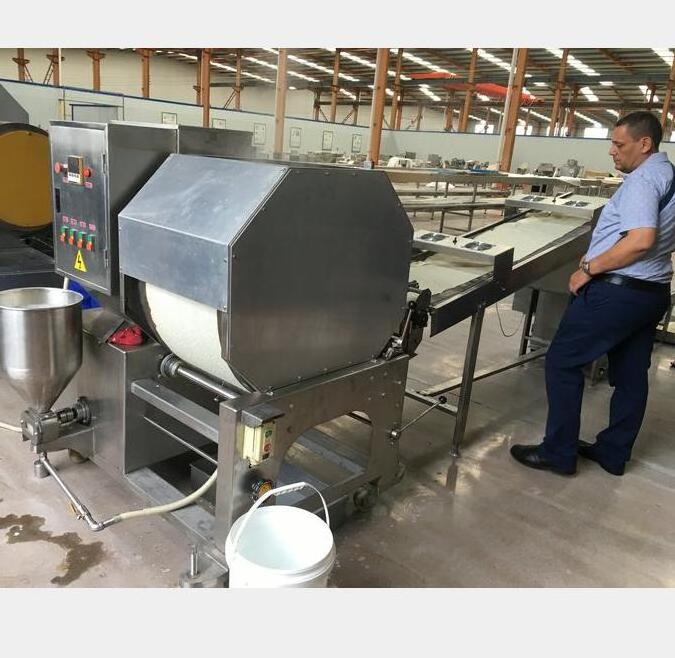

Commercial Automatic Spring Roll/Samosa Making Machine

Commercial Automatic Spring Roll/Samosa Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $6500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 3 phases electric power

Power:: 24kw

Dimension(L*W*H):: 5000*1300*1500mm

Weight:: 800 KG

Drum diameter:: 600mm

Wrapper Width:: 400-420mm

Material:: SUS304 Stainless Steel

Heating Mode:: Electric Tablet

Application:: Food Processing Units

Packing:: Standard Wooden Case

Keywords:: Samosa Empanada Making Dumpling Machine

Shape:: Rectangular

Stuffing:: Meat Filling

After-sales Service Provided:: Field installation, commissioning and training

Quick Details

Production Capacity:: 3768mm/min

Place of Origin:: Shandong, China

Brand Name:: Green

Voltage:: 3 phases electric power

Power:: 24kw

Dimension(L*W*H):: 5000*1300*1500mm

Weight:: 800 KG

Drum diameter:: 600mm

Wrapper Width:: 400-420mm

Material:: SUS304 Stainless Steel

Heating Mode:: Electric Tablet

Application:: Food Processing Units

Packing:: Standard Wooden Case

Keywords:: Samosa Empanada Making Dumpling Machine

Shape:: Rectangular

Stuffing:: Meat Filling

After-sales Service Provided:: Field installation, commissioning and training

Product Description

Whole Line Processing:
Wrapper making machine ---- Slitting device---- Cooling conveyor belt ---- Cutting machine---- Delivery arrangement machine

Detailed Images

Technological Processing:

1. Put batter into pulp barrels, when heated to 160 ℃, open the slurry pump to send the batter to nozzle. 2. Then operating clutch operating lever, make the batter stick to the circular surface of the baking wheel. When the baking wheel rotates over 270-300 degrees, the batter matures and separates automatically from the baking wheel to form spring rolls with a fixed thickness or to be rolled immediately.

Advantage of Spring Roll Pastry Making Machine:

1. Production of product size, thickness, crisp, moisture, softness, hardness, can be controlled.

2. Machine is full automatic, Just need one worker, save label.

3. Machine is made of stainless steel material, safe and easy to clean.

4. If you want make different size, we can customized the mould according to your requirement.

Features:

1. Our spring roll wrapper machine is made of food grade stainless steel. The heating mode of the roasting wheel can be gas type of electric type. 2. The thickness of the end product can be 0.3-0.8 mm. The capacity can be 500-4000 pcs/h. Both the diameter and capacity can be customized. 3. It is the intelligent model machine, which has the high output, low energy consumption. 4. It can also save manpower, and reduce the production cost, improve market competitiveness, seize business opportunities.

SUS 304

1. Adopt SUS304 Stainless Steel.

2. Have round, rectangular and other speical SUD pipes.

3. Thickness is more than 2mm.

4. Also have carbon steel parts. such as roast wheel.

High technology manual welding

1. Excellent technical skills.

2. More than 8 years of welding experience.

3. Have 3 Professional Working Teams.For best quality, r aise the awareness of competition.

Scales welding

1. Ensure no leakage.

2. Beautiful appearance.

3. Improve service life.

Numerical control machine tool

1. Improve equipment quality.
2. Ensure productivity.
3. Reduce artificial interference.
4. Processing standard parts.

Mobile universal radial drilling machine

1 . Improve accuracy.
2. Standardization of main accessories.
3. Reduce artificial interference.
4. Improve productivity.

Exhibition Hall

1. Show the quality and quantity of equipment.
2. Conduct experiments for customers and check whether the equipment is qualified.
3. Showcase your company.
4. Stock can be delivered in time.

Technology Parameters:

Model	CPX 400-6	CPX400-8	CPX450	CPX450C
Sheet Width	400-420 mm	400-450mm	450mm	450mm
Capacity	226m/h	301m/h	452m/h	566m/h
Roast Wheel Speed	2 rounds/min	2 rounds/min	2 rounds/min	2.5rounds/min
Heating Mode	Electric Tablet	Electric Tablet	Electric Tablet	Electromagnetic
Heating Drum Diameter	600mm	800mm	1200	1200mm
3Voltage	3 Phases Electric Power				3 phases electric power
Power	24KW	30KW	57KW	50KW
Machine size(LWH)	5500 1300 1500 mm	550013001600mm	600014001800mm	600014001800mm
Weight	800KGS	900KGS	1500KGS	1500KGS

Application:

It can automatically produce spring roll pastry, samosa pastry lumpia wrapper, crepes pancake, njara and Pecking duck wrapperwith various recipe.

Packing&Shipping

Packing: Anti-rust oil, PE film and complete wooden case (standard export packing).

After Sales Service

Our Services:

1. Detailed installation manual and maintenance guideline are provided with the equipment.

2. Technical training and site commissioning and installationare available for you.

3. Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.

Company Introduction

Weifang Green Food Machinery Co., Ltd. is a comprehensive enterprise that is integrated with the ability of food machinery development, manufacture, technical advice and service. The company has a group of senior engineers engaged in the development and manufacture of food machinery with more than ten years experience, excellent managerial personnel and staff. The Green people begin with the slight place, constantly absorb the latest technology at home and abroad and learn widely from others' strong points. It ensures the products achieve leading position in the industry with exquisite technology and first-rate technology.

FAQ

1. What is the voltage/phase for this machine? 220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as the clients’ requirement. 2. What is the Mode of transportation? LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air. 3. How long can we get the goods? We usually delivery in 15-20 working days after deposit. 4. How long is the guarantee? We promise guarantee as one year for non-human damage factor. 5. How should I do if meet some trouble while using? We can supply English manual book and also take a video for showing how to resolve the problems. or dispatch our worker to your factory.
