Quick Details
-
Warranty:
-
2 Years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Color:
-
White
-
Material:
-
ABS Plastic
-
Warranty:
-
2 Years

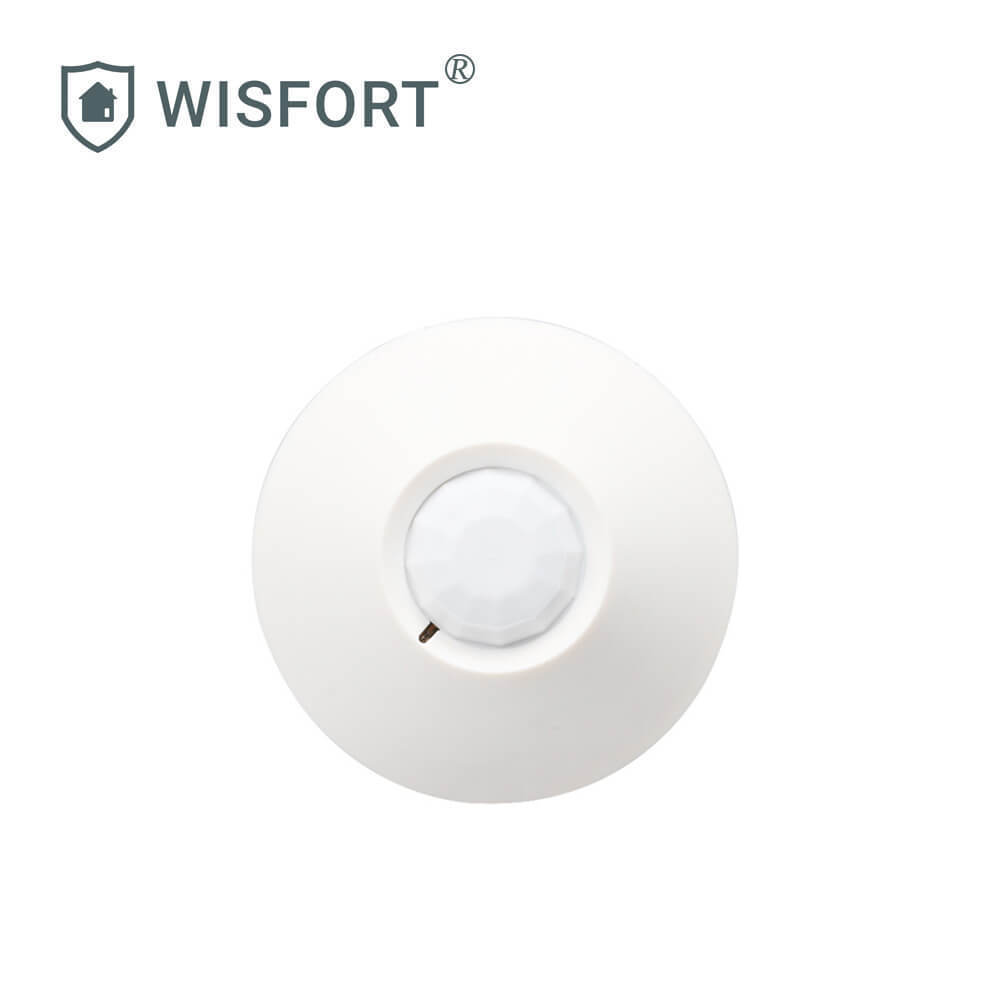

PIR Motion Sensor Detector Wired Ceiling Mounted Passive Infrared Detector
Wireless ceiling-absorbing infrared acquisition equipment, uses the fuzzy logic parsing technique, which is characterized by high detection sensitivity and low rate of false alarm. It is the best probe heads used in window and corridor.
- Operating frequency: 433MHz (315MHz optional)
- Operating Voltage: 9V-12V
- Modulation mode: ASK
- Quiescent current: 0uA
- Operating current: 8 – 15mA
- Transmitting power: 10 – 15mW
- Encoding type: Learning code (eV1527) [can be fixed code, PT2262]
- Transmitting Distance: 100-200 M (open space, receiver sensitivity: -108dBm)
Technical Specification
|
Electrical source: |
Hardwired 9-16V, Wireless (battery of DC9V) |
| Consumption of current: | 25mA |
| Warning time: | two seconds |
| Warm-up time: | five minutes |
| Angle of level: | 360 degrees |
| Alarm Output: | N.C or N.O, DC 28V, 100mA |
| Tamper Output: | N.C, DC 28V, 100mA |
| Detect distance: | 5-7 meters (diameter) |
| Radiate distance: | 300 meters (beeline without obstacle) |
| Radiate frequency: | 433MHZ±1MHZ |
| Optics lens: | 30 angle |
| Electron magnetism interference: | 30V/m 10MHz?1GH z |
| Working temperature: | -10°C~+50°C |
| Dimension: | 106mm * 36mm deep |
