Quick Details
-
Model Number:
-
KCD3-102/N
-
Max. Current:
-
16A/20A
-
Mechanical Life:
-
50000 Cycles
-
Insulation resistance:
-
≥100MΩ
-
Contact resistance:
-
≤50mΩ
-
Ambient temperature:
-
T105 55
-
Housing:
-
black and white
-
Safely approvals:
-
CQC,TUV,RoHS,CE
-
Item:
-
Illuminate Rocker Switch
-
Function:
-
ON-OFF
-
Material:
-
PA66/PC
-
Mounting size:
-
30*11mm
-
Certification:
-
ce,tuv
Quick Details
-
Max. Voltage:
-
125V/250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGHAN
-
Model Number:
-
KCD3-102/N
-
Max. Current:
-
16A/20A
-
Mechanical Life:
-
50000 Cycles
-
Insulation resistance:
-
≥100MΩ
-
Contact resistance:
-
≤50mΩ
-
Ambient temperature:
-
T105 55
-
Housing:
-
black and white
-
Safely approvals:
-
CQC,TUV,RoHS,CE
-
Item:
-
Illuminate Rocker Switch
-
Function:
-
ON-OFF
-
Material:
-
PA66/PC
-
Mounting size:
-
30*11mm
-
Certification:
-
ce,tuv

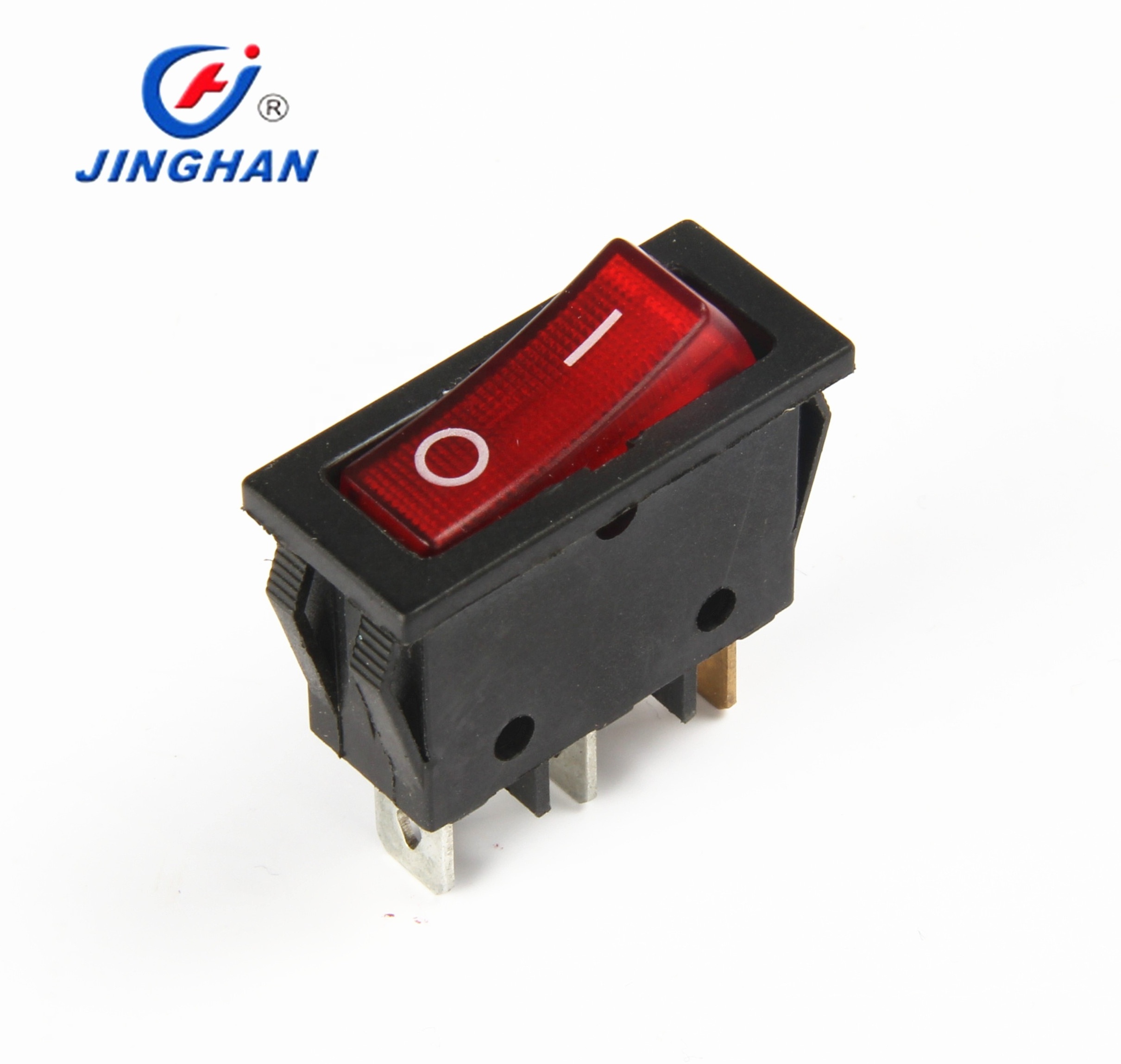

High quality KCD3-102/N 16a 250v SPST red led light rocker switch t105 55 Illuminate Rocker Switch
|
Rocker Switch |
|||||
|
Rating |
16A 250VAC 20A 125VAC |
Operating Temp. |
-25+85°C |
||
|
Contact Resistance |
≤ 50MΩ |
Electrical life |
≥ 10000 Cycles |
||
|
Insulation Resistance |
≥ 100MΩ |
Withstand Voltage |
1500VAC/5S |
||
|
Material |
Housing & Light bracket |
PA66 |
Contacts |
Copper with compound silver |
|
|
Push button |
PC |
Terminals & Mid pins |
Copper with silver plated |
||
|
Waterproof cover(Optional) |
PVC |
Side pins |
Brass with silver plated |
||
