Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000~6500k
-
Product Weight（kg）:
-
2.3
-
Input Voltage(V):
-
AC100-277V / 180~264V
-
Lamp Luminous Flux(lm):
-
100/125lm/w
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-25 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Alite
-
Model Number:
-
LT-panel
-
size:
-
595*595mm
-
input voltage:
-
100-277V
-
PF:
-
0.9
-
LED Light Source:
-
SMD 2835
-
Warranty(Years):
-
5
-
Certification1:
-
ce
-
Certification2:
-
EMC
-
Certification3:
-
LVD
-
Certification4:
-
RoHS
-
Certification5:
-
Reach
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100~125
-
Application:
-
Home, Office, Supermarket
-
Lamp Body Material:
-
Aluminum
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000~6500k
-
Product Weight（kg）:
-
2.3
-
Input Voltage(V):
-
AC100-277V / 180~264V
-
Lamp Luminous Flux(lm):
-
100/125lm/w
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-25 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Alite
-
Model Number:
-
LT-panel
-
size:
-
595*595mm
-
input voltage:
-
100-277V
-
PF:
-
0.9
-
LED Light Source:
-
SMD 2835
-
Warranty(Years):
-
5
-
Certification1:
-
ce
-
Certification2:
-
EMC
-
Certification3:
-
LVD
-
Certification4:
-
RoHS
-
Certification5:
-
Reach

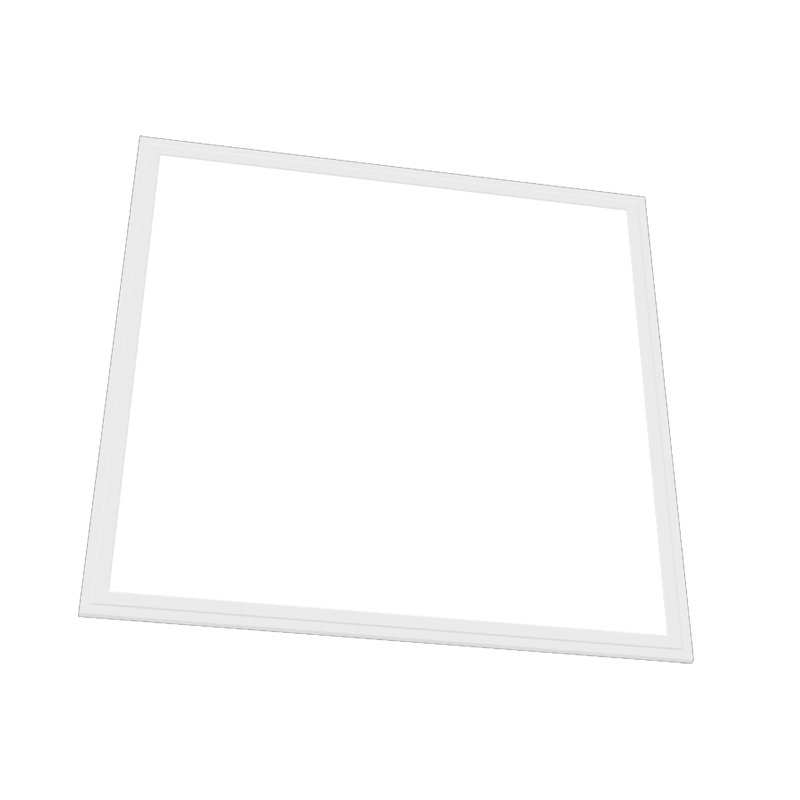

Panels Light Economy LED Backlit Panels 2x2 1x4 2x4 LED Surface Mounted Backlit Panel Flat Light Fixtures
Features:
120x60cm LED panel:
Details:
Back Side with two types driver option:
Datas of 60x60 led panel :
| Part No. | LP-0606-20W | LP-0606-36W | LP-1203-36W | LP-1206-40W |
| Input Voltage(V) | 100-277 | |||
| Lumen (lm) | 2500 | 4500 | 4500 | 5000 |
| Watt W) | 20 | 36 | 36 | 40 |
| Frequency | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz |
| Dimension | 597×597×10mm | 597 ×597×10mm | 1197×297×10mm | 1197 ×597 ×10mm |
Emergency:
- Ni-MH Battery,Emergency Lighting for 3Hrs,10-50% Optional Brightness
Motion Sensor:
- Microwave Sensor,5-10M dectection area,100% brightness when motion dectected, turns to 20% brightness if no motion detected afer 3 minutes, lights off after 5 minutes
Application Places of 60x60 led panel:
Hotels, conference/meeting room, factories & offices, Commercial Purpose, Residential / institution building, School, college, hospital, places where energy saving and high color rendering index lighting are need.
Warning and caution: Dont' use in completely enclosed fixture and damp area.
Installation Instructions of led panel light
New related product: Sky panel light
