Quick Details
-
Brand Name:
-
Fivemen
-
Voltage:
-
380V/220V/415v
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
900*600*1150
-
Weight:
-
650 kg
-
keyword:
-
oil filter centrifuge
-
name:
-
Marine diesel centrifugal purifier
-
application:
-
diesel oil, lube oil,fuel oil , mineral oil
-
Drum diameter:
-
315mm
-
Pump pressure:
-
≥0.2MPa
-
Vibration speed:
-
≤4.5 mm/s
-
Moisture in the material:
-
less than 1%-2%
-
Separation temperature:
-
95~98°C(heavy fuel oil)
-
materials:
-
304/ 316L SUS
-
discharge way:
-
automatical discharging
-
Certification:
-
ISO9000
Quick Details
-
Applicable Industries:
-
marine oil', diesel
-
Flow:
-
3000L/H
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Fivemen
-
Voltage:
-
380V/220V/415v
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
900*600*1150
-
Weight:
-
650 kg
-
keyword:
-
oil filter centrifuge
-
name:
-
Marine diesel centrifugal purifier
-
application:
-
diesel oil, lube oil,fuel oil , mineral oil
-
Drum diameter:
-
315mm
-
Pump pressure:
-
≥0.2MPa
-
Vibration speed:
-
≤4.5 mm/s
-
Moisture in the material:
-
less than 1%-2%
-
Separation temperature:
-
95~98°C(heavy fuel oil)
-
materials:
-
304/ 316L SUS
-
discharge way:
-
automatical discharging
-
Certification:
-
ISO9000

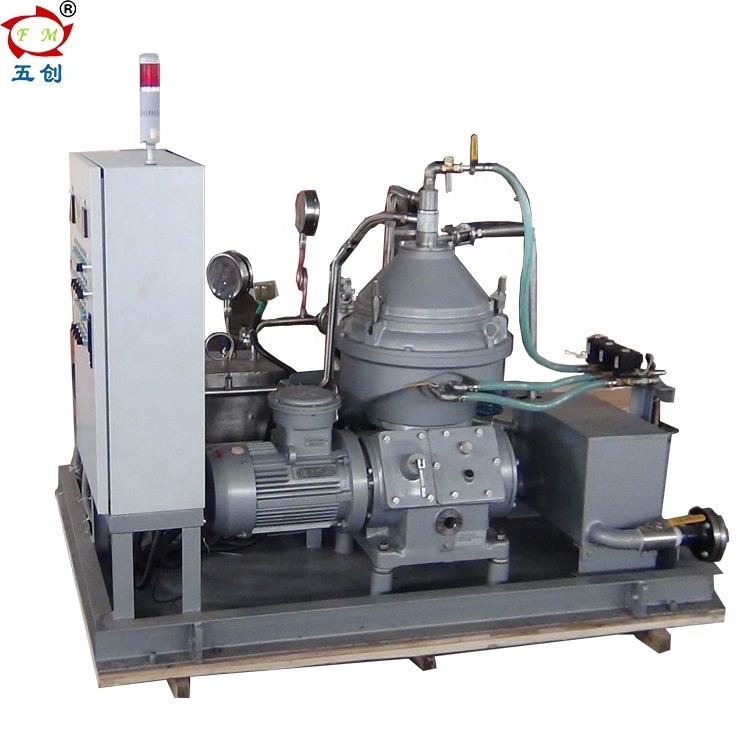

Marine diesel centrifugal purifier / oil centrifuge separator / oil filter centrifuge
More than ten years of successful industry experience
The best materials and strict control system
Equipment quality gaurantee
original design for customized service
Full refund money in case of bad quality.
| Product Description |
Introduction:
KYDH207SD-23 oil purifier are mainly applied in:
1.the purification and clarification of the diesel, light fuel oil, heavy fuel oil, transformer oil,
lube oil,Marine mineral oil.
2.other mineral oil.used to remove the water, moisture, mechanical impurities
3.some harmful substances of the oil.
This series is oil purifier and clarifier, we also have other clarifier series and concentrator series.
Main Feature:
Simple, compact and robust design
• Highest separation efficiency in removing solids and water
• No pre-filtration necessary
• Environmentally friendly sludge disposal (no cartridges)
• Automatic, unattended operation
• Easy maintenance
• Low operating cost
• Proven reliability and long lifespan
• Reliable process for maximum performance
Designing including as below
• Feed pump with electric motor
• Self-cleaning centrifugal separator with electric motor
• Control panel with local operator device
• Atmospheric sludge tank complete with sludge pump
• Instrument air distribution system
• Wired and piped to skid limit
• Module base frame with drip pan, lifting lugs and earthing
• Suitable offshore painting
• Tagging and marking
• Factory Acceptance Test (FAT)
• Documentation
Moled and Parameters of oil purifier:
|
No. |
Model |
Capacity (l/h) |
Drum diameter (mm) |
Drum speed |
Motor Power (KW) |
Discharge way |
Separator factor |
Weight(kg) |
Size(mm*mm*mm) |
|
1 |
KYDR203CD-23 |
1500 |
230 |
6930 |
2.2 |
Manual |
6170 |
245 |
850*625*985 |
|
2 |
KYDH204SD-23 |
2000 |
270 |
7200 |
4 |
Automatic |
6950 |
550 |
865*645*1100 |
|
3 |
KYDH206SD-23 |
3000 |
315 |
6500 |
5.5 |
Automatic |
7000 |
650 |
900*600*1150 |
|
4 |
KYDH207SD-23 |
4000 |
385 |
6500 |
7.5 |
Automatic |
7500 |
750 |
1100*1050*1250 |
|
5 |
KYDH209SD-23 |
5000 |
430 |
6000 |
11 |
Automatic |
8050 |
900 |
1200*950*1400 |
|
6 |
KYDH211SD-23 |
10000 |
500 |
5500 |
18.5 |
automatic |
8000 |
1200 |
1250*1000*1550 |
Speration conditions and actual productioivity of mineral oil:
|
Packing & Shipping |
The parts are bolted to the wooden cases. with layers of plastic and standard wooden cases
for packaging, it provide safe and convenient shippings.
