Quick Details
-
Description:
-

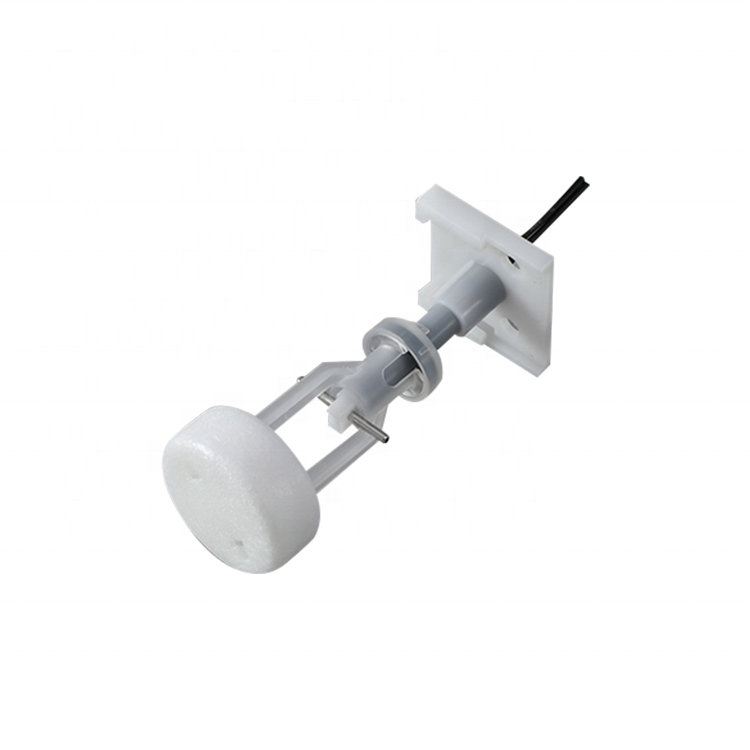

water level sensor, float switch
-
Model Number:
-
LS-77
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EXIN
-
Theory:
-
reed sensor
-
Output:
-
ON/OFF Control
-
Material:
-
PP Stem
-
Max Contact Rating:
-
10W/50W
-
Max Switch Current:
-
0.5A/1.5A
-
Max Switch Voltage:
-
100VDC/220VDC
-
Max Breakdown Voltage:
-
200VDC/300VDC
-
Operating Temperature:
-
-20-85℃
-
Contact Form:
-
A/B (NC or NO)
-
Color:
-
White
-
Installation:
-
customized
Quick Details
-
Usage:
-
Level measurement
-
Series:
-
LS
-
Mounting Type:
-
Thread
-
Description:
-
water level sensor, float switch
-
Model Number:
-
LS-77
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EXIN
-
Theory:
-
reed sensor
-
Output:
-
ON/OFF Control
-
Material:
-
PP Stem
-
Max Contact Rating:
-
10W/50W
-
Max Switch Current:
-
0.5A/1.5A
-
Max Switch Voltage:
-
100VDC/220VDC
-
Max Breakdown Voltage:
-
200VDC/300VDC
-
Operating Temperature:
-
-20-85℃
-
Contact Form:
-
A/B (NC or NO)
-
Color:
-
White
-
Installation:
-
customized
Product Description
Product introduction：
Float switch is a simple structure sensor, it can be used for detecting liquid level in many kinds of the liquid. reliable work,without power and complex circuit.
Specification
|
Body Material
|
PP
|
|
Float Ball Material
|
PP foaming
|
|
Max Contact Rating
|
10W/20W/50W
|
|
Max Switching Voltage
|
100VDC/220VDC
|
|
Max Switching Current
|
0.5A/1.5A
|
|
Max Contact Resistance (excluding wire)
|
100mΩ
|
|
Operating Temperature
|
-20~85℃
|
|
Wire Length/Wire type/Connector/Terminal
|
can be customized
|
Installation Instructions
Application Area
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
