Quick Details
-
Brand Name:
-
Sunlight/OEM
-
Model Number:
-
XLW26-20
-
Max. Current:
-
20A
-
Mechanical Life:
-
20000 times
-
layers:
-
4
-
handle:
-
R
-
color:
-
blue
-
structure 1:
-
spring return
-
Certificate:
-
CE
-
Application:
-
3 phase motors,gear,instrument
-
Type:
-
LW26 rotary switch
-
Position:
-
1-2-3-4-5-6
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sunlight/OEM
-
Model Number:
-
XLW26-20
-
Max. Current:
-
20A
-
Mechanical Life:
-
20000 times
-
layers:
-
4
-
handle:
-
R
-
color:
-
blue
-
structure 1:
-
spring return
-
Certificate:
-
CE
-
Application:
-
3 phase motors,gear,instrument
-
Type:
-
LW26 rotary switch
-
Position:
-
1-2-3-4-5-6
-
Certification:
-
CE
Specifications

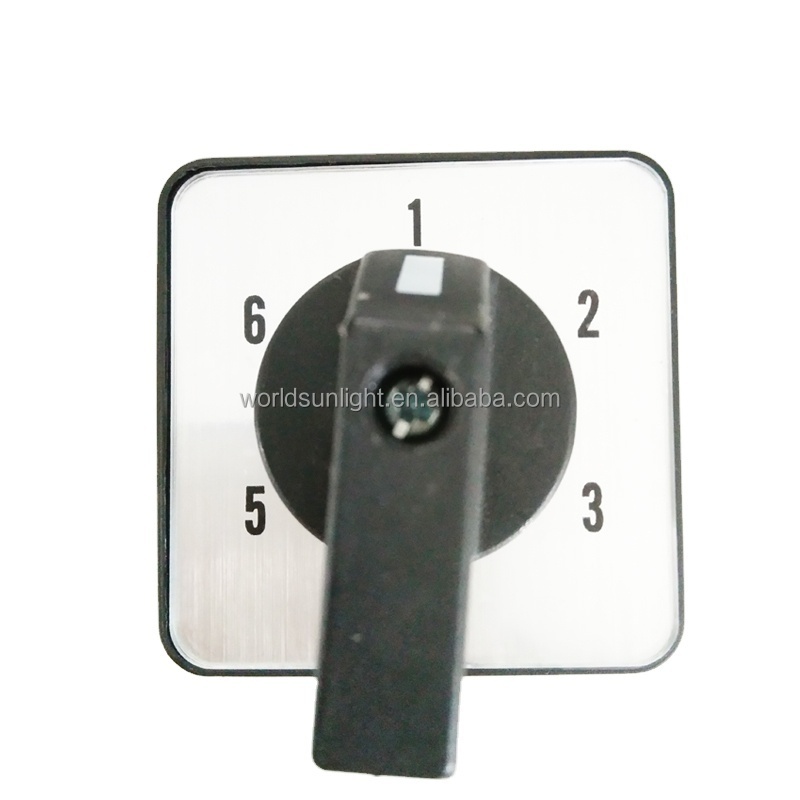

(1)LW26-20 20A 1-2-3-4-5-6 6 position rotary cam switch
(2)Spring return
(3)OEM
(4Current range:10A to 160A
(5)Certificate:CE
(6)IP class:IP65
LW26-20 20A 1-2-3-4-5-6 6 position rotary cam switch
1) rated current: 20A
2) function: Control switch of switchgear, motor, instrument, machinery and weldingmachine.
3) Limited movement with spring return
4) two layers
5) R handel
6) comply with the GB 14048.3, GB 14048.5 and IEC 60947-3, IEC 60947-5-1.
Output/year: 20million PCS;
Lead time: 1000PCS/ week;
Certificate: CCC,CE, RoHS;
1.LW26-20 20A 1-2-3-4-5-6 6 position rotary cam switch Introduction
|
The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,change-over of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and change-over switch of machinery and welding machine. The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1. The LW26 series have 7 current ratings:10A,20A,25A,32A,63A,125A and 160A. The LW26 series rotary switch were designed for multiple functions,wide variety of appli -cations. The LW26-10,LW26-20,LW26-25,and LW26-32F have finger protection terminals. LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5, HZ10,and HZ12. The LW26 series rotary switch has two derivatives,LW26GS Pad-lock and LW26S lock. Both of them are applicable in circuits when an physical control is required. We can equip protective box for 20A,25A,32A and 63A. |
2.LW26-20 20A 1-2-3-4-5-6 6 position rotary cam switch Type and meaning.
|
3.LW26-20 20A 1-2-3-4-5-6 6 position rotary cam switch Specifications and parameters
|
|
4.LW26-20 20A 1-2-3-4-5-6 6 position rotary cam switch Dimensions
|
5.LW26-20 20A 1-2-3-4-5-6 6 position rotary cam switch Pictures
6.LW26-20 20A 1-2-3-4-5-6 6 position rotary cam switch Diagram for the operation and position of handle
|
|
7. LW26-20 20A 1-2-3-4-5-6 6 position rotary cam switch Packing
8.LW26-20 20A 1-2-3-4-5-6 6 position rotary cam switch Shipping
9.LW26-20 20A 1-2-3-4-5-6 6 position rotary cam switch After sale services
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon
receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit to our company and technology communication.
