Quick Details
-
Model Number:
-
Extrusion lines
-
Design:
-
CAT 6 cable making machinery
-
Application:
-
Data cable
-
Color:
-
Customized
-
Warranty:
-
1 Year
-
Function:
-
Cable Extrusion Line
-
Wire material:
-
Copper,aluminum
-
Feature:
-
High speed
-
Brand:
-
SWAN
-
Advantage:
-
Long working life
Quick Details
-
Use:
-
Insulating layer extrusion for cable production
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SWAN INT'L
-
Model Number:
-
Extrusion lines
-
Design:
-
CAT 6 cable making machinery
-
Application:
-
Data cable
-
Color:
-
Customized
-
Warranty:
-
1 Year
-
Function:
-
Cable Extrusion Line
-
Wire material:
-
Copper,aluminum
-
Feature:
-
High speed
-
Brand:
-
SWAN
-
Advantage:
-
Long working life
Product Description
|
GSB-2 24-carrier high speed braider
|
|
|
|
Number of bobbin
|
24
|
|
|
Bobbin size
|
Ø75XØ22X70
|
|
|
Speed
|
100r.p.m.(Max.)
|
|
|
Braiding pitch
|
13.3-134.5mm
|
|
|
Max. braiding diameter
|
24mm
|
|
|
Braiding material
|
0.08-0.18mm , 4-12 lines
|
|
|
50 core wire extruder machine |
|
|
|
1
|
50PVC wire extruder
|
|
|
2
|
straightener |
|
|
3
|
50PVC extrusion host + adjustable nose
|
|
|
4
|
25kg dryer, automatic feeder
|
|
|
5
|
50 main control box
|
|
|
insulation and sheath extruding lines
|
|
|
|
1
|
Manufacturing line for electronic wire and cable , power cable core wire, building wire and cable insulation and sheath extruding
|
|
|
2
|
Extrusion materials: PVC, PE plasticization degree 100%.
|
|
|
3
|
Extruding line speed: 400m/min (depending on the outer diameter)
|
|
|
4
|
Applicable conductor: 1.0mm2-10.0mm2.
|
|
|
5
|
Finished wire diameter specification: 1.0-10.0mm.
|
|
|
6
|
Center height: 1000mm
|
|
|

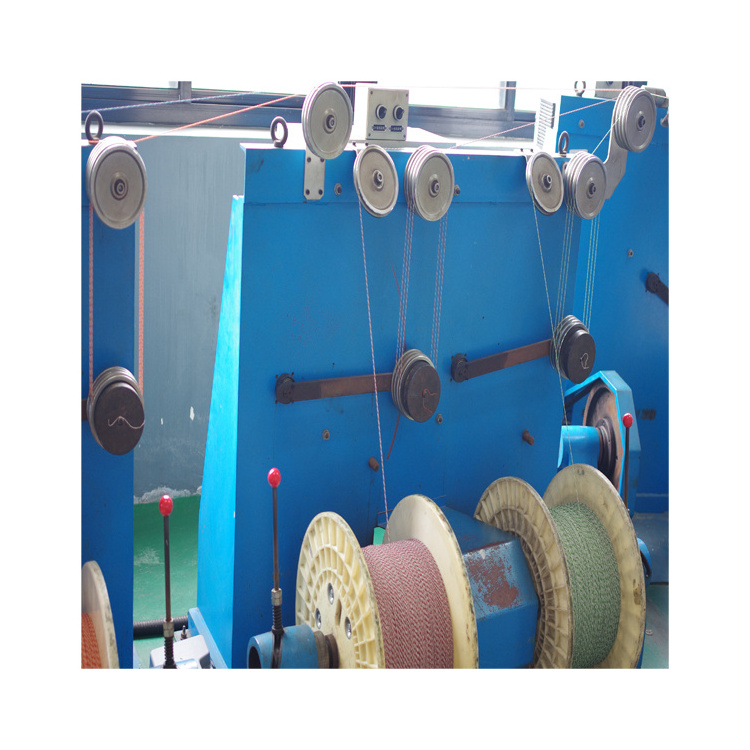

500 pairs of winches+
Vertical Torsion Removal Machine
|
|
|
|
1.1
|
Equipment type:500 pairs of winches
|
|
|
1.2
|
Maximum Speed 3000RPM (Rotation) or 6000TPM
|
|
|
1.3
|
Outer diameter of feeder core is 0.8-2.6 mm
|
|
|
1.4
|
Maximum external diameter of stranding 5.2mm
|
|
|
1.5
|
Copper loading MAX250kg
|
|
|
2.1
|
Detorsion rate: Max. 40% stepless adjustable
|
|
|
2.2
|
Feed Line Diameter: Max*2.0
|
|
|
2.3
|
External diameter of stranding: Max*4.0
|
|
|
2.4
|
Line Speed: 120M/min
|
|
|
2.5
|
Maximum rotation speed: Max. 1000rpm/min
|
|
|
SJ800Cabling machine
|
|
|
|
1
|
Size of feeder shaft: 500mm-630mm
|
|
|
2
|
Applicable diameter: 1.0mm-4.0mm
|
|
|
3
|
Maximum outside diameter of stranding: 12mm
|
|
|
4
|
Strand: 18mm-143mm sectional gear change pitch
|
|
|
5
|
Rotary speed: 600 rpm (maximum) / 1200 winches per minute
|
|
Factory finished product display
