ZSE40 Series Digital Pressure Switch
-
Body Material:
-
Aluminum Alloy + Plastic
-
Working Medium:
-
Filtered air, Non-corrosive gas / Non-flammable gas
-
Rated pressure range:
-
0.0 to -101.3 kPa
-
Display/Set pressure range:
-
10.0 to -105.0kPa
-
Withstand pressure:
-
500kPa
-
Current consumption:
-
45mA or less
-
Enclosure:
-
IP65
-
After Warranty Service:
-
Online Support
Quick Details
-
Weight (KG):
-
0.1
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VPC Pneumatic
-
Material:
-
Plastic
-
Product name:
-
ZSE40 Series Digital Pressure Switch
-
Body Material:
-
Aluminum Alloy + Plastic
-
Working Medium:
-
Filtered air, Non-corrosive gas / Non-flammable gas
-
Rated pressure range:
-
0.0 to -101.3 kPa
-
Display/Set pressure range:
-
10.0 to -105.0kPa
-
Withstand pressure:
-
500kPa
-
Current consumption:
-
45mA or less
-
Enclosure:
-
IP65
-
After Warranty Service:
-
Online Support
High Precision

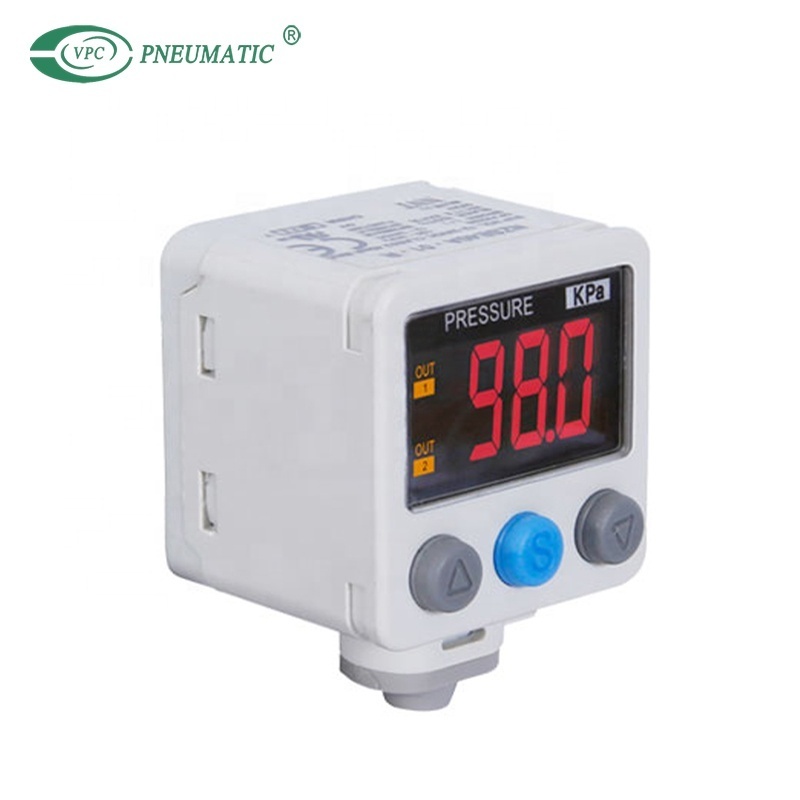

ZSE40A(F) Series 2 Colour Display Digital Pressure Switch
1. ZSE40A(F)/ISE40A series is a 2-color display high-precision digital pressure switch offering compatibility with both compressed air and non-corrosive liquids.
2. Z/ISE40 is for vacuum, positive and compound pressure. Can copy to up to 10 switches simultaneously, simpler setting and easier operation. The 4-digit display allows easy reading of displayed values.
3. Z/ISE40 is UL/CSA, CE, and RoHS compliant.
3. Z/ISE40 is UL/CSA, CE, and RoHS compliant.
Product Feature
1. 2-Color Display.
2. Power-saving.
3. Secret code setting function, designated operator while the keys are locked.
4. Resolution conversion function. The flickering on the display can be eliminated.
5. Vacuum, compound and/or positive pressure can be displayed in MPa or kPa.
2. Power-saving.
3. Secret code setting function, designated operator while the keys are locked.
4. Resolution conversion function. The flickering on the display can be eliminated.
5. Vacuum, compound and/or positive pressure can be displayed in MPa or kPa.
Product Specifications
|
Model
|
|
|
ZSE40A
(Vacuum pressure)
|
ZSE40AF
(Compound pressure)
|
ISE40A
(Positive pressure)
|
||||
|
Rated pressure range
|
|
|
0.0 to -101.3 kPa
|
-100.0 to 100.0kPa
|
-0.1 to 1.0MPa
|
||||
|
Display/Set pressure range
|
|
|
10.0 to -105.0kPa
|
-105.0 to 105.0kPa
|
-0.105 to 1.05MPa
|
||||
|
Withstand pressure
|
|
|
500kPa
|
500kPa
|
1.5MPa
|
||||
|
Display/Minimum unit setting
|
|
|
0.1kPa
|
0.1kPa
|
0.001MPa
|
||||
|
Working medium
|
|
|
Filtered air, Non-corrosive gas / Non-flammable gas
|
|
|
||||
|
Power supply voltage
|
|
|
DC12 to 24 V±10%, Ripple (p-p) 10% or less(with power supply polarity protection)
|
|
|
||||
|
Current consumption
|
|
|
45mA or less
|
|
|
||||
|
|
Standard
|
|
NPN or PNP open collector 1 output or 2 outputs
|
|
|
||||
|
|
Max. load current
|
|
80mA
|
|
|
||||
|
|
Max. applied voltage
|
|
28V (at NPN output)
|
|
|
||||
|
|
Residual voltage
|
|
1V or less
|
|
|
||||
|
|
Response time
|
|
2.5ms (with anti-chattering function: 20, 100, 500, 1000, 2000 ms)
|
|
|
||||
|
|
Short circuit protection
|
|
Yes
|
|
|
||||
|
Repeatability
|
|
|
±0.2% F.S. ±1 digit
|
|
|
||||
|
Hysteresis
|
Hysteresis mode
|
|
Variable (0 or above) *
1)
|
|
|
|||
|
|
Window comparator mode
|
|
|
|
|
|||
|
|
Voltage output*
2）
|
Output voltage
(Rated pressure)
|
1 to 5V ±2.5% F.S.
|
|
0.6 to 5V ±2.5% F.S.
|
|||
|
|
|
Linearity
|
±1% F.S.
|
|
|
|||
|
|
|
Output impedance
|
Approx. 1 kΩ
|
|
|
|||
|
|
Current output*
3）
|
Output voltage
(Rated pressure)
|
4 to 20mA ±2.5% F.S.
|
|
2.4 to 20mA ±2.5% F.S.
|
|||
|
|
|
Linearity
|
±1% F.S.
|
|
|
|||
|
|
|
Load impedance
|
Maximum load impedance: 300Ω(Power supply voltage 12V) : 600Ω(Power supply voltage 24V)
Minimum load impedance: 50Ω
|
|
|
|||
|
Auto-shift input
|
|
|
Non-voltage input (Reed or Solid state), Low level: 0.4V or less, 5 ms or longer input
|
|
|
||||
|
Display
|
|
|
3 1/2-digit, 7-segment, 2-color LCD (Red/Green)
|
|
|
||||
|
Display accuracy
|
|
|
±2% F.S. ±1 digit (Ambient temperature of 25 ±3℃)
|
|
|
||||
|
Indicator light
|
|
|
Lights up when switch output is turned ON.OUT1, OUT2: Orange
|
|
|
||||
|
|
Enclosure
|
|
IP65
|
|
|
||||
|
|
Working temperature range
|
|
Operation: -5 to 50°C, Storage:-10 to 60°C (No condensation or freezing)
|
|
|
||||
|
|
Ambient humidity range
|
|
Operation/Storage: 35 to 85% RH (No condensation)
|
|
|
||||
|
|
Withstand voltage
|
|
AC 1000V for 1 minute between terminals and housing
|
|
|
||||
|
|
Insulation resistance
|
|
50 MΩor more (500 VDC measured via megohmmeter) between terminals and housing
|
|
|
||||
|
Temperature characteristic
|
|
|
±2% F.S. (25℃ reference)
|
|
|
||||
|
Lead wire with connector
|
|
|
Oilproof heavy-duty vinyl cable, 5 cores
Φ3.5, 2m Conductor area: 0.15mm² (AWG26), Insulator O.D.: 0.95mm
|
|
|
||||
|
Standards
|
|
|
CE/RoHS, UL/CSA
|
|
|
||||
*2) When analog voltage output is selected, analog current output cannot be used together.
*3) When analog current output is selected, analog voltage output cannot be used together.
*4) UL temperature rating: The maximum ambient temperature is 50℃.
Analogue Output
Ordering Code ZSE40A(F)/ISE40A Series Digital Pressure Switch
ZSE40A
①
- 01
②
Y
③
-
M
④
- □
⑤
|
|
For vacuum pressure
|
ZSE40A
|
0 to -101.3kPa
|
|
|
For compound pressure
|
ZSE40AF
|
-100.0 to 100kPa
|
|
|
For positive pressure
|
ISE40A
|
-0.1 to 1.0MPa
|
|
②→ Piping specifications
|
01
|
R1/8(With M5 female threaded)
|
R1/8, NPT1/8 M5×0.8
|
|
|
N01
|
NPT1/8(With M5 female threaded)
|
|
|
Combination of piping specifications with option 1 and part numbers of options
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Option1
|
Piping specifications
|
|
|
|
|
|
|
|
Accessary
|
|||||||||
|
Description
|
Part no.
|
01
|
N01
|
W1
|
WF1
|
M5
|
C4
|
C6
|
|
|||||||||
|
|
ZS-24-A
|
○
|
○
|
○
|
○
|
×
|
×
|
×
|
Bracket A, with 2 mounting
screws each of M3×5L and
M4×5L
|
|||||||||
|
Bracket B
|
ZS-24-B
|
×
|
×
|
○
|
○
|
×
|
×
|
×
|
Bracket B, with 2 mounting
screws M4×5L
|
|||||||||
|
|
ZS-24-D
|
○
|
○
|
○
|
○
|
×
|
×
|
×
|
Bracket D, with 2 mounting
screws each of M3×5L and
M4×5L
|
|||||||||
|
Panel mount adapter
|
ZS-35-D
|
×
|
×
|
○
|
○
|
○
|
○
|
○
|
Panel mount adapter
(Piping: For W1/WF1/M5/C4/C6)
|
|||||||||
|
Panel mount adapter
+Front protective cover |
ZS-35-G
|
×
|
×
|
○
|
○
|
○
|
○
|
○
|
Panel mount adapter +
Front protective cover
(Piping: For W1/WF1/M5/C4/C6)
|
|||||||||
|
|
R: NPN open collector 2 outputs + Analogue voltage/Auto-shift switching
|
|
|
T: PNP open collector 2 outputs + Analogue voltage/Auto-shift switching
|
|
|
S: NPN open collector 2 outputs + Analogue current/Auto-shift switching
|
|
|
V: PNP open collector 2 outputs + Analogue current/Auto-shift switching
|
|
|
X: NPN open collector 2 outputs + Copy function
|
|
|
Y: PNP open collector 2 outputs + Copy function
|
|
|
Nil: With unit switching function
|
|
|
M: Fixed SI unit*
|
|
|
P: With unit switching function(Initial value psi)
|
|
|
* Fixed unit
For vacuum/compound pressure: kPa For positive pressure: MPa |
|
|
—: None
|
|
|
A1: Bracket A
|
|
|
A2: Bracket B
|
|
|
A3: Bracket D
|
Main Dimensions
