Quick Details
-
Brand Name:
-
TBM
-
Model Number:
-
go kart --0141
-
Engine:
-
300cc GY6 water cooled, 4 stroke, with CVT gear
-
Drive Mode:
-
chain drive
-
Wheel Size:
-
22*7-10 /22*10-10/23/10.5-12
-
Oil Tank Capacity:
-
11L
-
Maximum Speed:
-
65KM
-
Displacement:
-
300CC 400CC
-
Brake Type:
-
Disk brake
-
Product name:
-
off road RX buggy plus
-
Brake:
-
Hydraulic Disc Brake
-
Frame:
-
Strong Steel
-
Dimensions:
-
2340*1400*1530mm
-
Transmission:
-
CVT F-N-R
-
Engine type:
-
4 Stoke
-
Weelbase:
-
1800 MM
-
Net weight:
-
280 KGS
-
Fit for:
-
OFF ROAD DRIVE
-
Certification:
-
ce
Quick Details
-
Type:
-
Pedal Go Karts
-
Engine Capacity:
-
201-500cc
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TBM
-
Model Number:
-
go kart --0141
-
Engine:
-
300cc GY6 water cooled, 4 stroke, with CVT gear
-
Drive Mode:
-
chain drive
-
Wheel Size:
-
22*7-10 /22*10-10/23/10.5-12
-
Oil Tank Capacity:
-
11L
-
Maximum Speed:
-
65KM
-
Displacement:
-
300CC 400CC
-
Brake Type:
-
Disk brake
-
Product name:
-
off road RX buggy plus
-
Brake:
-
Hydraulic Disc Brake
-
Frame:
-
Strong Steel
-
Dimensions:
-
2340*1400*1530mm
-
Transmission:
-
CVT F-N-R
-
Engine type:
-
4 Stoke
-
Weelbase:
-
1800 MM
-
Net weight:
-
280 KGS
-
Fit for:
-
OFF ROAD DRIVE
-
Certification:
-
ce

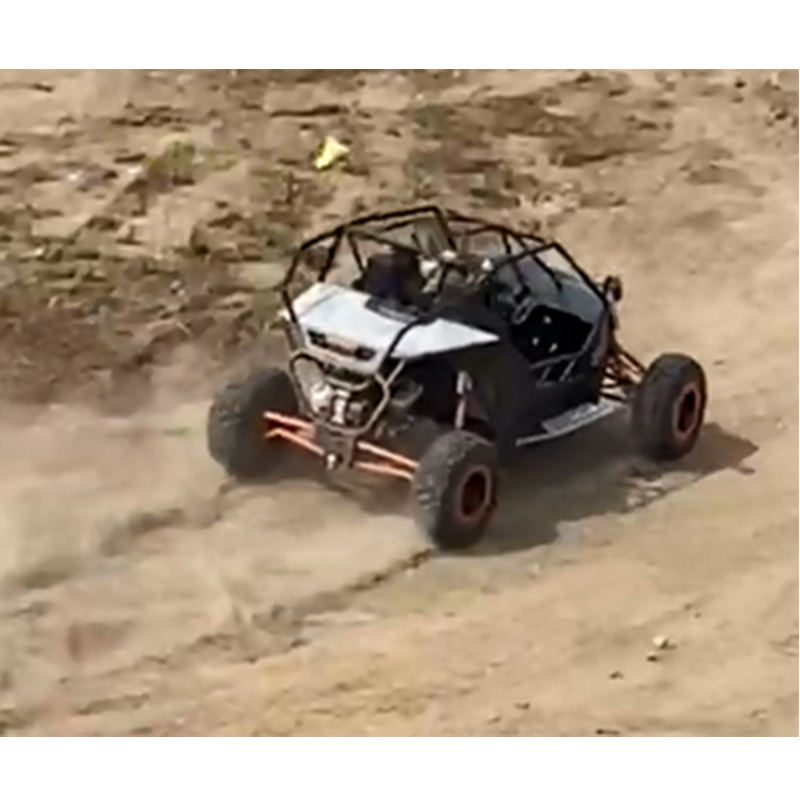

TBM GO KART RX OFF ROAD GO KART BUGGY EPA EEC APPROVED
| ENGINE INFORMATION: | |
| EPA certificated EPA USA / CANADA MARKET | |
| Engine type | 173MN, 4-STROKE,SINGLE CYLINDER,WATER COOLED |
| Displacement | 275.6CC |
| Output Max. | 13KW/6500RPM |
| Max torque | 22Nm/5000RPM |
| Bore x stroke | INCHES (72.5 X 66.8 MM) |
| Max speed | 60KM/H |
| Climbing ability | 15° |
| Ignition | C.D.I |
| Starting system | ELECTRIC START |
| Battery | YTX12-BS 12V10AH |
| Carburetor Item | Y28V1L |
| Engine oil | SAE 10W/40 |
| General Information | |
| Clutch | AUTOMATIC CVT |
| Gears | D-N-R |
|
Driveline / Driving wheel
|
CHAIN / DUAL WHEEL DRIVE |
|
Suspension, F / R
|
DUAL A-ARM / THRU-SHAFT WITH DUAL SHOCKS AND DUAL A-ARM |
| Brakes, F / R | DISC |
| Tires, F / R | 22*7-10 /22*10-10 |
| Fuel capacity | 2.25 GAL (8.516L) |
|
Weight, G.W. / N.W.
|
330 KGS/280 KGS |
| Max load | 599 LBS (247) |
| Dimension Information | |
| Wheelbase | 1800 MM |
| OA L x W x H | 2340*1400*1530mm |
| Height to seat | 470 MM |
|
Min. ground clearance
|
150 MM |
|
Pedal to seat back
|
920-1060 MM |
|
Shipping information
|
30UNITS / 40HQ |
| package size | 2300*1200*860 MM |
