Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DR AIRE
-
Model Number:
-
DGRH-K-3500-30
-
Voltage:
-
AC 110-220V 50hz(60hz), AC 110-240V 50Hz (60Hz)
-
Product Name:
-
Ventilating Exhaust Fan
-
Cabinet Material:
-
carbon steel plate finish: power coated
-
Electric field material:
-
stainless steel, anti-corrosion aluminum alloy and 2pcs UV light
-
Certification:
-
ASHRAE 52.2,CE, ROHS,ISO9001
-
Fume removal rate:
-
over 98%
-
Airflow:
-
3000-3500CMH
-
Application:
-
Commercial kitchen, Coffee Roaster fume
-
Power:
-
240W
-
Payment:
-
T/T,L/C
Quick Details
-
Applicable Industries:
-
Hotels, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, commercial kitchen
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DR AIRE
-
Model Number:
-
DGRH-K-3500-30
-
Voltage:
-
AC 110-220V 50hz(60hz), AC 110-240V 50Hz (60Hz)
-
Product Name:
-
Ventilating Exhaust Fan
-
Cabinet Material:
-
carbon steel plate finish: power coated
-
Electric field material:
-
stainless steel, anti-corrosion aluminum alloy and 2pcs UV light
-
Certification:
-
ASHRAE 52.2,CE, ROHS,ISO9001
-
Fume removal rate:
-
over 98%
-
Airflow:
-
3000-3500CMH
-
Application:
-
Commercial kitchen, Coffee Roaster fume
-
Power:
-
240W
-
Payment:
-
T/T,L/C
Air pollution is cutting global life expectancy by an average of 1.8 years per person, making it the world’s top killer. While we cannot control outdoor air quality, we can choose to protect us and create a clean commercial kitchen. DR.AIRE Electrostatic Precipitator ESP 's mission is to create healthy indoor commercial kitchen for people.
Removal Efficiency Rate:
Single Pass ESP series: >95% designed for high altitude air emission level . Double Pass ESP series: >99% designed for low altitude air emission leve.
ASHRAE 52.2 Std
WORKING PRINCIPLE
1. The dirty air first passes through a pre-filter. Large particles of oil are filtered.
2. The air then passes into the high voltage ionise section where the particulates are charged to a positive potential. And then the air passes into low voltage collector cell
section where the particulates are charged to a negative potential. So the particulates are attracted to the collector plates effectively.
3. The particulates remain on the plates or drain down in to the sump.
4 UVC-ultraviolet light produces OZONE and undergoes chemical processes such as Photolysis and Ozonolysis that breaks down grease and odour containing compounds
produced during cooking.
5. The cleaned air exits through the cabinet.

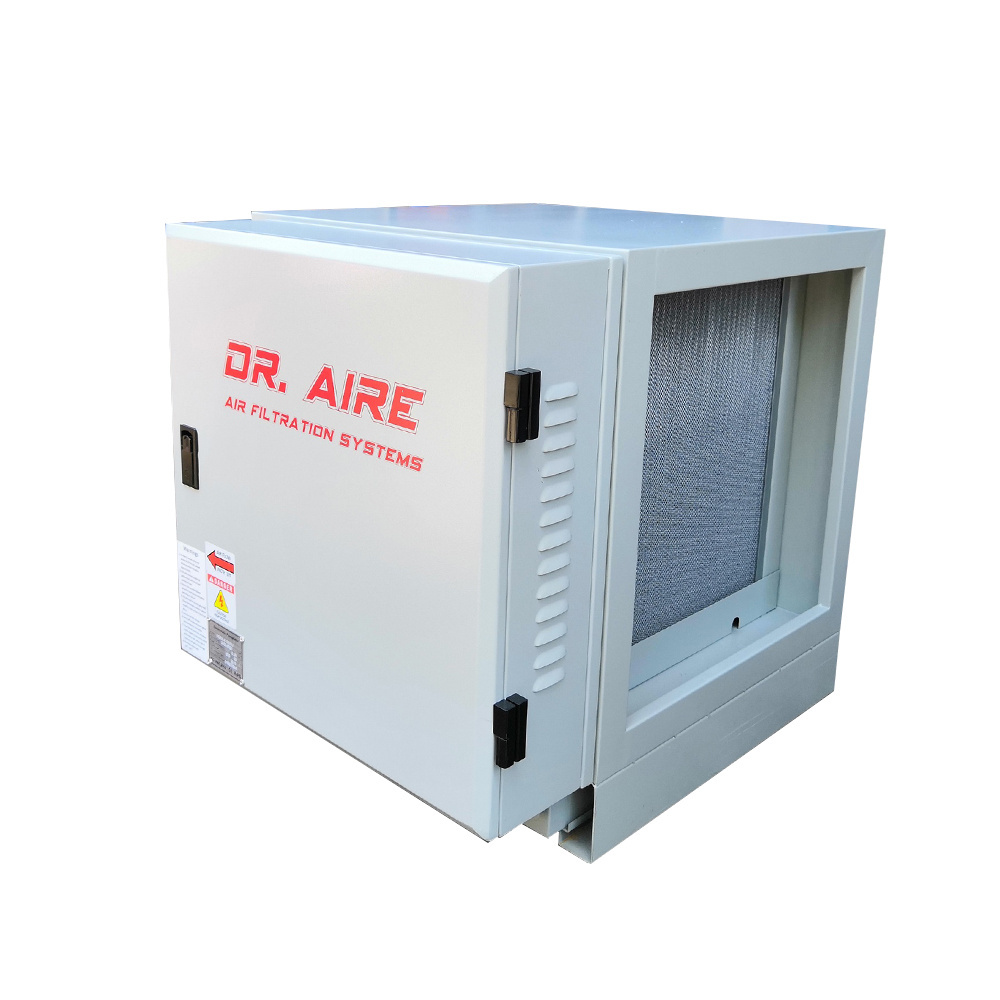

DGRH-K Single Pass ESP parameter
| NO. | Model |
Air Flow
(CMH) |
Cabinet Size
L*W*H (mm) |
Flange Size
W*H(mm) |
Removal efficiency Rate |
Power
(Watt) |
| 1 | DGRH-K-3500(U) | 3000-3500 | 640*765*690 | 485*530 | 93-98% | 110 |
| 2 | DGRH-K-7000(U) | 6000-7000 | 640*1300*690 | 1020*530 | 93-98% | 176 |
| 3 | DGRH-K-10500(U) | 9000-10500 | 640*1835*690 | 1560*530 | 93-98% | 242 |
| 4 | DGRH-K-14000(U) | 12000-14000 | 640*1300*1380 | 485*1210 | 93-98% | 330 |
| 5 | DGRH-K-21000(U) | 18000-21000 | 640*1835*1380 | 1020*1210 | 93-98% | 484 |
| 6 | DGRH-K-31500(U) | 27000-31500 | 640*1835*2070 | 1560*1890 | 93-98% | 726 |
Product Advantage
1. Odor, smoke, oil control efficiently
2. Modular in design:
Modular units allow to vertical/horizontal stacking combination as per different air flow or removal efficiency rate request.
3. Intellegent electrostatic power control system
Electric intensity auto-co
ntrol function ensures the Kitchen ESP Collector unit maintains a high purification rate after a long time service.
4. Photolysis and odor removal: High power UV tube will remove food odor more efficiently.
