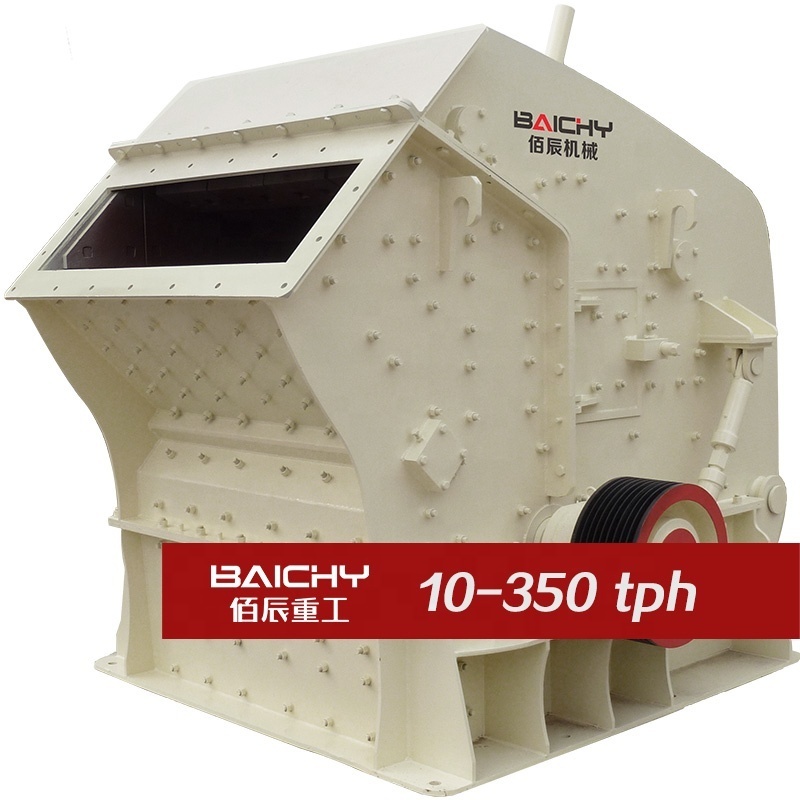

The impact crusher can crush large, medium, and small particle-size materials (granite, limestone, concrete, etc.) The maximum feed particle size is less than 500mm, and the compressive strength is less than 350MPa. It is widely used in all kinds of ore crushing, railway, highway, and construction industry artificial sand and gravel production.
The equipment for crushing particle size includes a jaw crusher, impact crusher, cone crusher, hammer crusher, and other crushing equipment. At present, through practice, its comprehensive performance is better than that of cone crusher and hammer crusher. Traditional crushing equipment has many models and large output and is the first choice for mine crushing.

Baichy impact crusher is widely used in metallurgy, mining, cement, chemical industry, refractory materials, ceramics, and other industrial sectors, as well as highway construction, water conservancy engineering, construction gravel, machine-made sand processing, and other fields.

The main crushed materials are river pebbles, granite, basalt, iron ore, limestone, quartz stone, diabase, etc.

There are many models of impact crushers, among which the most popular models are PF-1007, PF-1010, PF-1210, and so on.

Application: Used for coarse crushing, medium crushing, and fine crushing of materials.
Feed Size: various materials from 250 mm-500 mm.
Output Size: 10mm-80mm, the discharge port can be adjusted in a wide range.

Baichy impact crushers are commonly used throughout the industry to crush materials into various required sizes and impart fineness to the crushed materials with high quality and high efficiency. Rocks, sandstones, river pebbles, and other materials can be made into various particle sizes to meet the requirements of construction sand, with high compressive strength, which is more in line with construction requirements and improves construction quality.

W orking P rinciple

The impact crusher consists of a casing, a rotor, and an impact plate.

Impact crushers use impact energy to crush material. When working, driven by the motor, the rotor rotates at a high speed. When the material enters the action area of the blow bar, it collides with the blow bar on the rotor and breaks, and then is thrown to the impact device to be crushed again, and then bounces back from the impact liner. Re-crushing in the action area of the blow bar, this process is repeated, the material enters the first, second, and third counter-attack chambers from large to small and repeats crushing until the material is crushed to the required particle size and discharged from the discharge port. Adjusting the gap between the impact frame and the rotor can achieve the purpose of changing the material discharge granularity and material shape.

20 national service mileage:

Service mileage for local customers to provide equipment installation, commissioning and after-sales service

Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standardized workshops. There are more than 200 sets of various large and medium-sized metal processing lathes, riveting machines, welding equipment, and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focused on 4 series of products: stone crusher machines, sand-making equipment, powder grinding mills, mineral processing equipment, and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.

1. Are you manufacture or trading company?

We are factory, established in 2003.

2. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

3. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

4. How long is the warranty? Does your company supply the spare parts?

One year. Spare parts for you at lowest cost.

5. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
