Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Changjiang electric
-
Model Number:
-
LA38-**CX2(3)/206A
-
Material:
-
flame-retardant plastic
-
Mechanical Life:
-
200000 times
-
Electrical Life:
-
100000 times
-
Mounting hole diameter:
-
22mm
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP54
-
Max. Current:
-
5A
-
Max. Voltage:
-
300V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Changjiang electric
-
Model Number:
-
LA38-**CX2(3)/206A
-
Material:
-
flame-retardant plastic
-
Mechanical Life:
-
200000 times
-
Electrical Life:
-
100000 times
-
Mounting hole diameter:
-
22mm
-
Certification:
-
CE

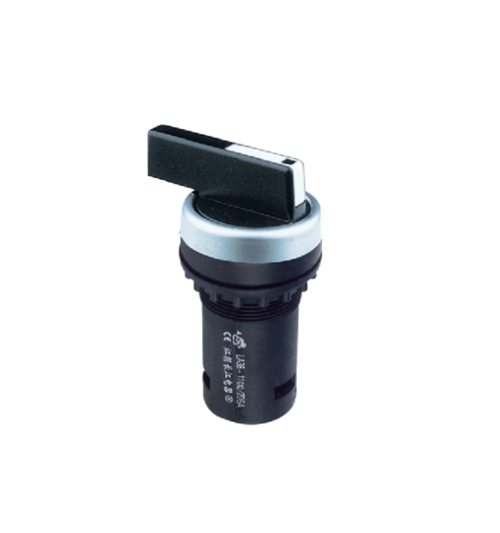

LA38 series economical rotary selector push button switch with long handle
China Shanghai institute of electrical science carried out a strict full set type tests for our push button switch products.Products are identified by the experts in the industry.Finally we got the LA38 product model in October 17, 1996 . When you are purchasing, please identify the LA38 series button switch produced by Jiangyin Changjiang electric appliance co.,ltd
Outline Size of mounding hole
|
LA38-**CX2(3)/206A |
|||||||||||
|
Name |
Push button switch,Knob |
||||||||||
|
Products Standard |
GB/T14048.5-2008 |
||||||||||
|
Operation Condition |
Altitude height |
Environment temperature |
Storage temperature |
Relative humidity |
Pollution class |
Install type |
|||||
|
≤2000m |
-25℃~+55℃ |
-40℃~+70℃ |
≤90% |
3 |
Ⅲ |
||||||
|
Main technical index |
|
Rated insulated Voltage |
300V |
||||||||
|
Rated impulse withstand voltage |
4000V |
||||||||||
|
Contact resistance |
≥50MΩ |
||||||||||
|
Front protect class |
Push button switch IP65 |
Knob IP54 |
|||||||||
|
Withstand Voltage |
1.89KV/5S |
||||||||||
|
button parameter |
Stipulated hot current Ith |
5A |
|||||||||
|
Contact resistance |
≤50mΩ |
||||||||||
|
Rated working Voltage /Current |
AC-15 |
DC-13 |
|||||||||
|
220V/3A |
24V/3A |
||||||||||
|
Electrical life |
Push button switch |
500000 times |
Knob |
100000 times |
|||||||
|
Mechanical life |
Push button switch |
1000000 times |
Knob |
200000 times |
|||||||
|
lamps parameter |
Rated working Voltage /Current |
None |
|||||||||
|
Life of signal lamps |
None |
||||||||||
