Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
YINUO-LINK
-
Place of Origin:
-
Guangdong, China
-
Ports:
-
1WAN/LAN, 1 SIM Card Slot, 1 Reset,1 DC Port
-
Product name:
-
4g lte router
-
Chipset:
-
MTK7628
-
RAM/Flash:
-
64MB/8MB
-
LTE Modem:
-
EC200A
-
Dimensions:
-
194.5x125.2x24.2mm
-
Wireless Speed:
-
300Mbps 2.4G
-
Power supply:
-
12V 1A
-
Certification:
-
FCC CE ROHS
-
VPN Server:
-
L2TP, OpenVPN, IPsec
Quick Details
-
Max. LAN Data Rate:
-
100Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
YINUO-LINK
-
Place of Origin:
-
Guangdong, China
-
Ports:
-
1WAN/LAN, 1 SIM Card Slot, 1 Reset,1 DC Port
-
Product name:
-
4g lte router
-
Chipset:
-
MTK7628
-
RAM/Flash:
-
64MB/8MB
-
LTE Modem:
-
EC200A
-
Dimensions:
-
194.5x125.2x24.2mm
-
Wireless Speed:
-
300Mbps 2.4G
-
Power supply:
-
12V 1A
-
Certification:
-
FCC CE ROHS
-
VPN Server:
-
L2TP, OpenVPN, IPsec

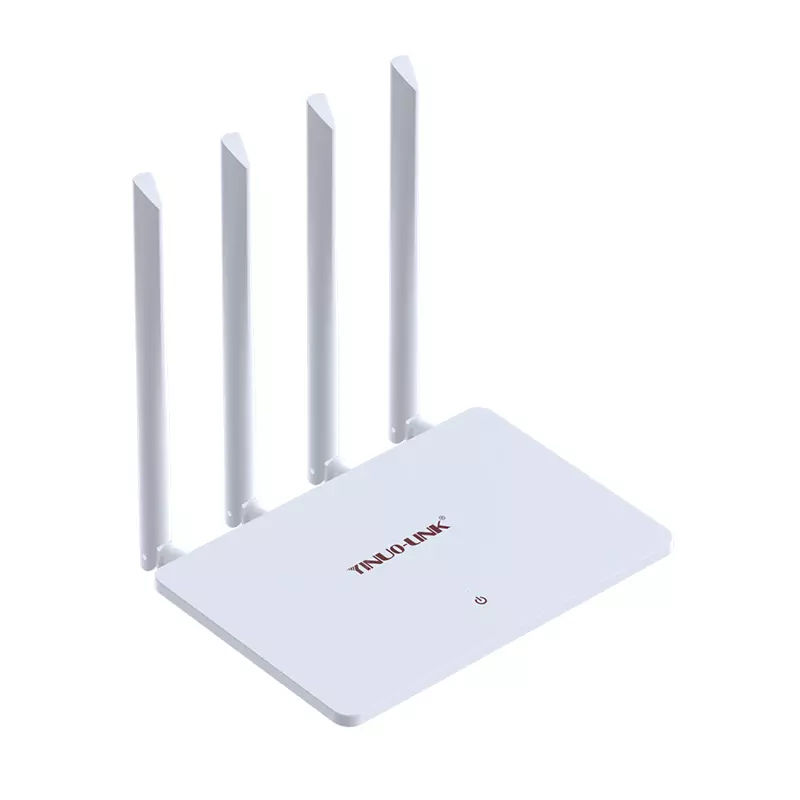

Y6 300Mbps Wi-Fi 4G Router
· Cutting-edge 4G Network: share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps.
· Plug a SIM Card and Play: No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests.
· Four High-Gain External LTE Antennas: Enjoy a stable and efficient connection to every device with four external antennas.
· Simplified Setup: Easily set up/SIM Card Plug and Play.
· Plug a SIM Card and Play: No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests.
· Four High-Gain External LTE Antennas: Enjoy a stable and efficient connection to every device with four external antennas.
· Simplified Setup: Easily set up/SIM Card Plug and Play.
|
Hardware
1 10/100 Mbps WAN/LAN ports, 1 10/100 Mbps LAN ports, 1 Nano SIM Card Slot
Button
:RESET Button
Antennas : 2xWifi Antennas+2x4G Antennas External Power Supply : 12V/1A Dimensions : 194.5x125.2x24.2mm
Wireless
Network Type : 4G: FDD-LTE:B1/B3/B7/B8/B20(2100/1800/2600/900/800 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS:B1/B8 (2100/900 MHz) Wireless Standards : IEEE 802.11b, 802.11g, 802.11n Frequency : 2.4 GHz Signal Rate : 300 Mbps , 2.4 GHz CE EIRP :<20 dBm (2.4 GHz) Reception Sensitivity :11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -67 dBm Wireless Function :Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security
:
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Software
Operation Modes : 3G/4G Router, Wireless Router WAN Type : Dynamic IP/Static IP/PPPoE DHCP : Server, Client, DHCP Client List, Address Reservation Quality of Service : WMM,QoS Port Forwarding : Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS : DDNS, DynDns, NO-IP
VPN Server
:
L2TP, OpenVPN, IPsec
Access Control :Parental Controls, Local Management Control, Host List, Access Control Firewall Security :DoS Protection, SPI Firewall, IP and MAC Address Binding Protocols :IPv4, IPv6
Others
Certification : FCC, CE, RoHS Requirements : Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browser or higher, or other Java-enabled browsers Nano SIM Card Environment :Operating Temperature:0℃~40℃ (32℉ ~104℉) Operating Humidity:10%~90% non-condensing Storage Humidity:5%~90% non-condensing |
Ordering Information:
| Model |
<Y6>4G |
<WMNN>:Cellular Type | <W>Wi-Fi |
|
Y6 Y6<W> |
L: 4G LTE |
(North America)
|
Supported |
|
Y6 Y6<W> |
L: 4G LTE |
(China/India)
LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 WCDMA: B1/B5/B8 GSM/EDGE: B3/B8 |
Supported |
|
Y6 Y6<W> |
L: 4G LTE |
(Europe/Asia Pacific)
|
Supported |
Kindly note this matches the EC200A modem, if you need another LTE modem, please contact us.
