Quick Details
-
Brand Name:
-
HUISIDUN
-
Product name:
-

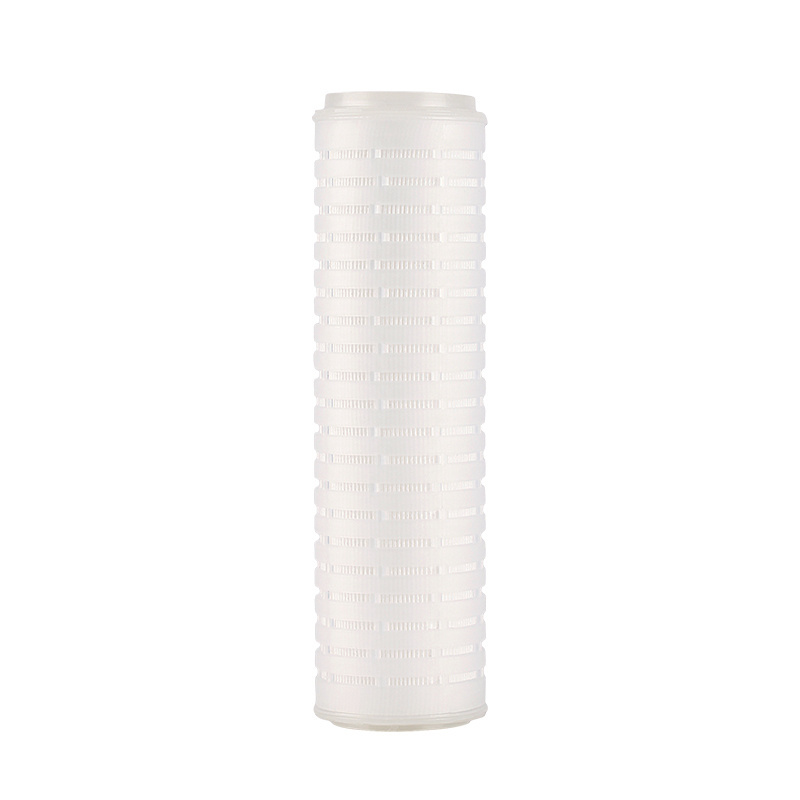

Hydraulic Filter
-
Application:
-
Liquid Filtration
-
Material:
-
Customized
-
Usage:
-
Filtering Impurities
-
Structure:
-
Catridge
-
Filter media:
-
0.22 Micron Hydrophobic PTFE Membrane
-
Model:
-
Customied
-
Feature:
-
Excellent Filtration Performance
-
Connection:
-
Code 0 Code7
-
Product Type:
-
Alcohol Filter
Quick Details
-
Weight (KG):
-
1
-
Core Components:
-
pp, pe, membrane
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUISIDUN
-
Product name:
-
Hydraulic Filter
-
Application:
-
Liquid Filtration
-
Material:
-
Customized
-
Usage:
-
Filtering Impurities
-
Structure:
-
Catridge
-
Filter media:
-
0.22 Micron Hydrophobic PTFE Membrane
-
Model:
-
Customied
-
Feature:
-
Excellent Filtration Performance
-
Connection:
-
Code 0 Code7
-
Product Type:
-
Alcohol Filter
Product Description
|
Brand
|
HuiSiDun
|
|
|
|
|||
|
Filter medium
|
PES Fibre Membrane/PP Polypropylene
|
|
|
|
|||
|
Support layer
|
Polypropylene (PP)
|
|
|
|
|||
|
Filter cage
|
Polypropylene (PP)
|
|
|
|
|||
|
Pore size
|
0.1,0.2,0.45,0.65,1µm
|
|
|
|
|||
|
Length
|
5/10/20/30/40 inches
|
|
|
|
|||
|
OD/ID
|
69 mm-34 mm
|
|
|
|
|||
|
Gasket / O - rings
|
Silicone, NBR, EPDM, Viton
|
|
|
|
|||
|
Interface
|
DOE,215,222,226flat/fins
|
|
|
|
|||
|
End caps
|
DOE,0050,0050A,0050B
|
|
|
|
|||
|
Sealing method
|
thermal bonding technique
|
|
|
|
|||
|
Effective filtration area
|
0.6 m2/10"
|
|
|
|
|||
|
Max. operating temperature
|
PES Fibre Membrane:140℃, 0.28 Mpa/PP Polypropylene:85℃/0.2 MPa; 25 ℃ (≥ 0.4 MPa)
|
|
|
|
|||
|
Max. forwarder differential pressure
|
0.42 Mpa (25℃)
|
|
|
|
|||
|
Max. reverse differential pressure
|
0.21 Mpa (25℃)
|
|
|
|
|||
|
Sterilizing temperature
|
121℃ 30min
|
|
|
|
|||
|
PVDF for liquid filtration
|
PVDF membrane for liquid filtration.
|
|
Absolute Rating
|
Filtration effective is ≥99.99%
|
|
|
Minimum pore size is 0.1um, suitable for critical liquid filtration
|
|
Wide Chemical
|
Suitable for strong alkaline and acid enviroment
|
|
compatability
|
Resistance to the halogens and oxide
|
|
High viscosity liquid filter
|
Best choice for critical filtration of high viscosity liquid.
|
|
|
|
|
Materials
|
Filter Media: PVDF Membrane
|
|
|
PVDF Membrane: Polypropylene
|
|
|
Inner core: Polypropylene /SUS304
|
|
|
Outer Support: Reinforced Polypropylene Cage
|
|
|
Adapter: Polypropylene
|
|
Operating Conditions(操作条件）
|
Normal Operating Temperature: Up to 65℃ (149℉) ）
|
|
|
Max.Operating Temperature.: 90℃ (194℉)at P≤1.0 bar (14psi)
|
|
|
|
|
|
Normal Flow direction 4.2 bar (60 psi) at 25℃ (77℉);
|
|
|
Reverse flow direction 2.1 bar (30psi) at 25℃ (77℉)
|
|
|
PH Value compatibility: 1-13
|
