Quick Details
-
Model:
-
IP to Analog RF Modulator
-
IP Input:
-
2 GE ports (max 64 IP input)
-
Output Channel:
-
32
-
transport protocol:
-
UDP/RTP, unicast and multicast
-
Connector:
-
F Type, 50Ω impedance
-
output level:
-
maximum 112dBμV
-
data:
-
Teletext, Teletext subtitles, DVB Subtitling
-
TV Standard:
-
PAL B/G/D/K/M/N, NTSC
-
RF Range:
-
47-862MHz
-
Support:
-
H.264/AVC, MPEG-2 TS Decapsulation
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Shineco
-
Model Number:
-
SNK6388C
-
Model:
-
IP to Analog RF Modulator
-
IP Input:
-
2 GE ports (max 64 IP input)
-
Output Channel:
-
32
-
transport protocol:
-
UDP/RTP, unicast and multicast
-
Connector:
-
F Type, 50Ω impedance
-
output level:
-
maximum 112dBμV
-
data:
-
Teletext, Teletext subtitles, DVB Subtitling
-
TV Standard:
-
PAL B/G/D/K/M/N, NTSC
-
RF Range:
-
47-862MHz
-
Support:
-
H.264/AVC, MPEG-2 TS Decapsulation
Multi Channel IP to Analog RF Modulator
---
Latest Price please contact
Tina Skype:
shineco.tina
Outline
Shineco 32 (or 16/48/64) standard PAL or NTSC or SECAM TV programs output via 32 (or 16/48/64) non-adjacent or adjacent carriers output within 400MHz
Key features
- 2 GE input, SFP interface
- Supports up to 1024 channels TS over UDP/RTP, unicast and multicast, IGMP v2v3
- Max 840Mbps for each input
- Supports accurate PCR adjusting
- Supports PID remapping and PSI/SI editing
- Supports up to 180 PIDs remapping per channel
- Support 8 multiplexed TS over UDP/RTP/RTSP output
- 8 DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard
- Supports RS (204,188) encoding
- Support Web-based Network management
Specification
|
Input |
Interface/rate |
2 GE ports (max 64 IP input) Max 840Mbps for each GE input |
|
Stream |
UDP, UDP / RTP, 1-7 packets, FEC, SPTS, MPTS |
|
|
Transport Protocol |
UDP/RTP, unicast and multicast, IGMP V2/V3 |
|
|
Packet Length |
188 / 204 Bytes |
|
|
Decoding Parameters |
Video |
H.264/AVC Level 4.1 HP, MPEG-2 MP@HL |
|
Audio |
MPEG-1/2 Layer 1/2, (HE-)AAC |
|
|
Data |
Teletext, Teletext subtitles, DVB Subtitling |
|
|
Resolutions |
480I, 576I, 720P, 1080I, 1080P |
|
|
Aspect ratio |
4:3/16:9 |
|
|
Modulation Parameters |
Number of channels |
up to 32 |
|
Connectors |
75Ω, F-jack |
|
|
Frequency range |
47 – 862MHz, digital modulation process |
|
|
Output level |
maximum 112dBμV |
|
|
Return loss |
≥ 14dB |
|
|
Spurious frequency dist. |
≥ 60dB |
|
|
Stereo cross talk |
> 55dB |
|
|
Residual carrier accuracy |
1% |
|
|
TV standard |
PAL B/G/D/K/M/N, NTSC, SECAM (under development) |
|
|
Video-signal to noise ratio |
≥ 60dB |
|
|
Network Interface |
Management |
1 x 100 Base-T Ethernet (RJ 45) |
|
Data |
2 x 1000 Base-T Ethernet (RJ 45) |
|
|
Protocol |
IEEE802.3 Ethernet, RTP, ARP, IPv4, TCP/UDP, HTTP, IGMPv2/v3 |
|
|
Others |
Image resolution |
up to 1080i |
|
CNR |
60 dB (after internal combining) |
|
|
SNR |
> 53 dB (after internal combining) |
|
|
Sampling frequency |
48, 44.1, 32 |
|
|
Output volume adjustment |
0 - 100 % |
|
|
General |
Demission |
420mm×440mm×44.5mm (WxLxH) |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz |

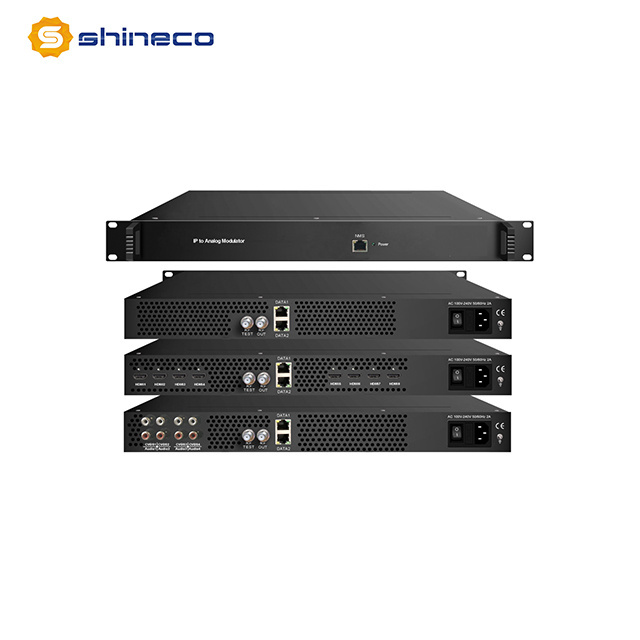

Front and Rear Panel of IP to Analog modulator
How to operation the encoder and managment page?
By Web managment:
C onnect the PC and the device with net cable, and use ping command to confirm the y are on the same network segment.
