Quick Details
-
Brand Name:
-
CNC
-
Model Number:
-
DTSY726
-
Accuracy Class:
-
1.0
-
Output Voltage:
-
3*220/380,3*230/240,3*240/415V
-
Operating Temperature:
-
30℃~70℃
-
Dimensions:
-
228*144*72mm
-
Phase number:
-
Three Phase
-
Rate Current:
-
1.5(6)A,10(40)A,15(60)A,10(60)A,20(80)A,20(100)A
-
Rate voltage:
-
3*220/380,3*230/240,3*240/415V
-
Display:
-
LCD
-
Accuracy class:
-
1.0
-
Frequency:
-
50/60HZ
-
Connection mode:
-
CT type or Direct type
-
IP Grade:
-
IP51
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
1.5-60A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNC
-
Model Number:
-
DTSY726
-
Accuracy Class:
-
1.0
-
Output Voltage:
-
3*220/380,3*230/240,3*240/415V
-
Operating Temperature:
-
30℃~70℃
-
Dimensions:
-
228*144*72mm
-
Phase number:
-
Three Phase
-
Rate Current:
-
1.5(6)A,10(40)A,15(60)A,10(60)A,20(80)A,20(100)A
-
Rate voltage:
-
3*220/380,3*230/240,3*240/415V
-
Display:
-
LCD
-
Accuracy class:
-
1.0
-
Frequency:
-
50/60HZ
-
Connection mode:
-
CT type or Direct type
-
IP Grade:
-
IP51
Product Category
Product Description

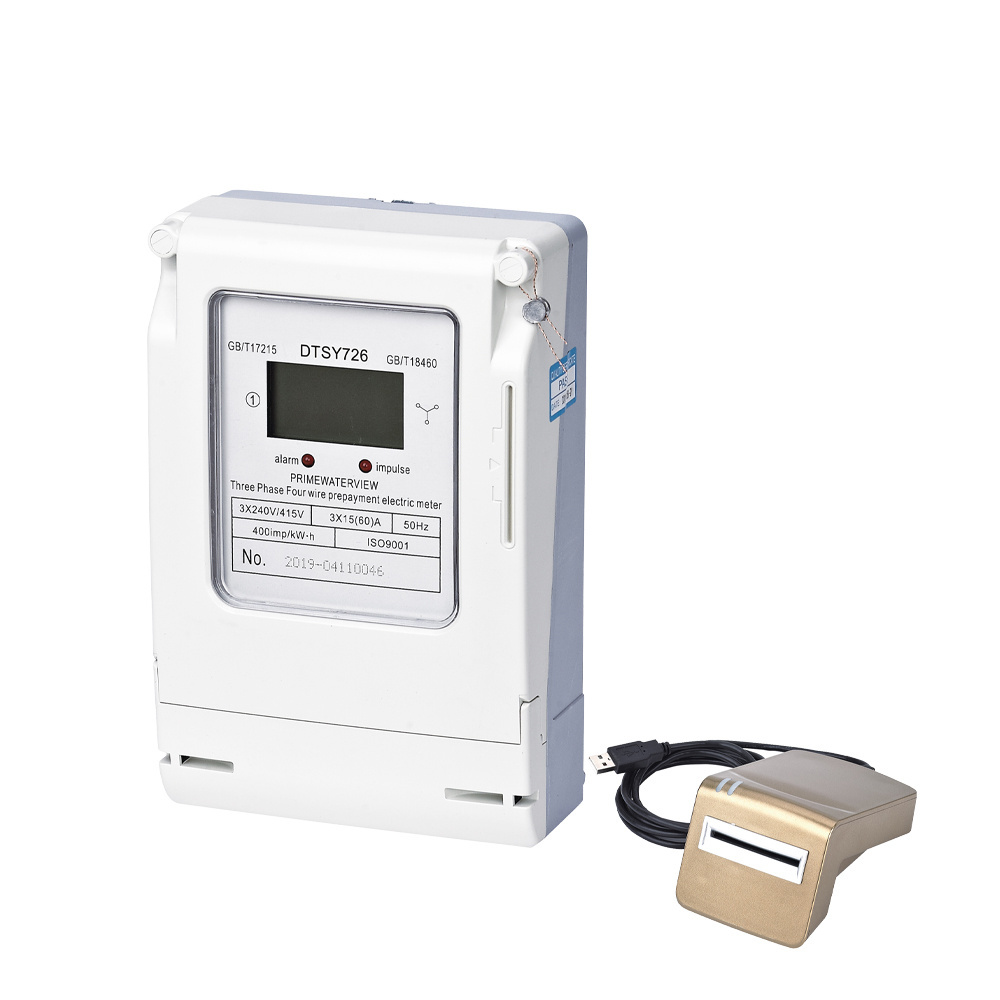

Three Phases Electric Prepaid meter software prepaid energy meter
Product Detail
| Phase number | Three Phase |
| Rate Current | 1.5(6)A,10(40)A,15(60)A,10(60)A,20(80)A,20(100)A |
| Rate voltage | 3*220/380,3*230/240,3*240/415V |
| Display | LCD |
| Accuracy class | 1.0 |
| Frequency | 50/60HZ |
| Connection mode | CT type or Direct type |
| IP Grade | IP51 |
| Product Keywords | electric meter,prepaid energy meters,electricity prepaid meter |
General
The DTSY726 type three phase prepayment meter is a new type IC card prepayment
meter which has such function as power metering, load control and customer
information management. It is an ideal product when reforming electric-use system,
achieving electrical energy to commercialize , setting charge and adjusting load
stage in the power network. It adopt LSI and SMT technology , the key component
are long life international brand product. All of its functions comply with the relative
technical requirement for class 1 single phase watt hour meter in IEC62053-21.
Function
1.LCD display 6+2
2.Bi-directional total active energy measurement ,reverse active energy measure in
the total active energy
3.Each user responds to a card , well protect from forgery
4.Once the electric consumption is used up , it should be cut off automatically
5.Auto cut-off for overload
6.The IC card power selling control system has the function as power selling and
using control
7.Pulse LED indicates working of meter, Pulse output with optical coupling isolation
8.Two type of cases (protective-class I and II) are available
