Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
mw
-
Model Number:
-
OIC-S01
-
Type:
-
Gate Operators
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
mw
-
Model Number:
-
OIC-S01
-
Type:
-
Gate Operators
Product Description

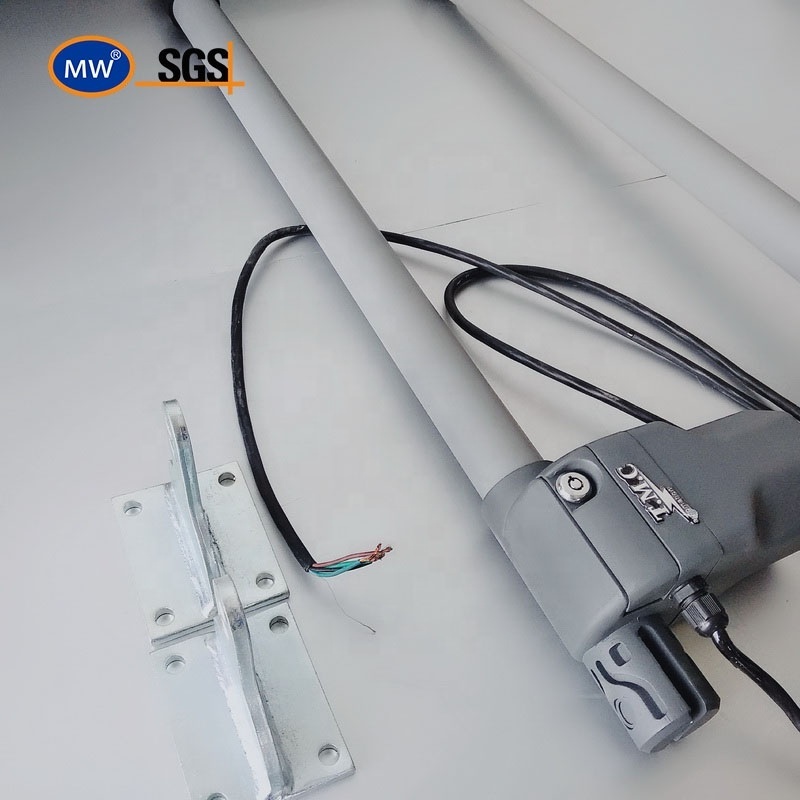

dual swing gate opener
Soft start and soft stop;
Emergency release key in case of power failure;
Dual/single gate running mode;
Adjustable opening/closing inteval between master and slave gate;
Stop/Reverse in case of obstruction during gate opening/closing;
Built in adjustable auto-close
Digital display indicates the running situation and setting menu;
Reliable electromagnetism limit for easy adjustment;
Bulit in max Motor running time(MRT) adjustable for multiple safety protection
AC Swing Gate Opener | |
OIC-5-1-230 | |
Supply Power | 230VAC/50Hz |
Absorbed Power | 320W |
Current | 1.5A |
Motor Speed | 1800RPM |
Thrust | 2800N |
Travel | 400MM |
Operating Environment Temperature | -20ºC~50ºC |
Protection Class | Ip45 |
Certificates | CE |
Max Gate Width | 3.5M |
Max Gate Weight | 500KG |
OIC-5-2-230 | |
Supply Power | 230VAC/50Hz |
Absorbed Power | 320W |
Current | 1.5A |
Motor Speed | 1800RPM |
Thrust | 2800N |
Travel | 600MM |
Operating Environment Temperature | -20ºC~50ºC |
Protection Class | Ip45 |
Certificates | CE |
Max Gate Width | 4M |
Max Gate Weight | 500KG |
