Quick Details
-
Function:
-
Filling Sealing Coding
-
Material:
-
Stainless Steel 304/316
-
Usage:
-
Chemical,Commodity,Food,Medical
-
Filling material:
-
powder(tea, coffee)
-
Filling speed:
-
2400-3000 /H
-
Filling head:
-
4 Heads
-
Filling capacity:
-
5-30ml
-
Temperature range:
-
0-300℃
-
Certification:
-
CE SGS
Quick Details
-
Packaging Material:
-
Plastic
-
Place of Origin:
-
Shanghai, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Field maintenance and repair service
-
Function:
-
Filling Sealing Coding
-
Material:
-
Stainless Steel 304/316
-
Usage:
-
Chemical,Commodity,Food,Medical
-
Filling material:
-
powder(tea, coffee)
-
Filling speed:
-
2400-3000 /H
-
Filling head:
-
4 Heads
-
Filling capacity:
-
5-30ml
-
Temperature range:
-
0-300℃
-
Certification:
-
CE SGS
coffee powder filling machine/coffee nespresso capsules/k cup filling machine

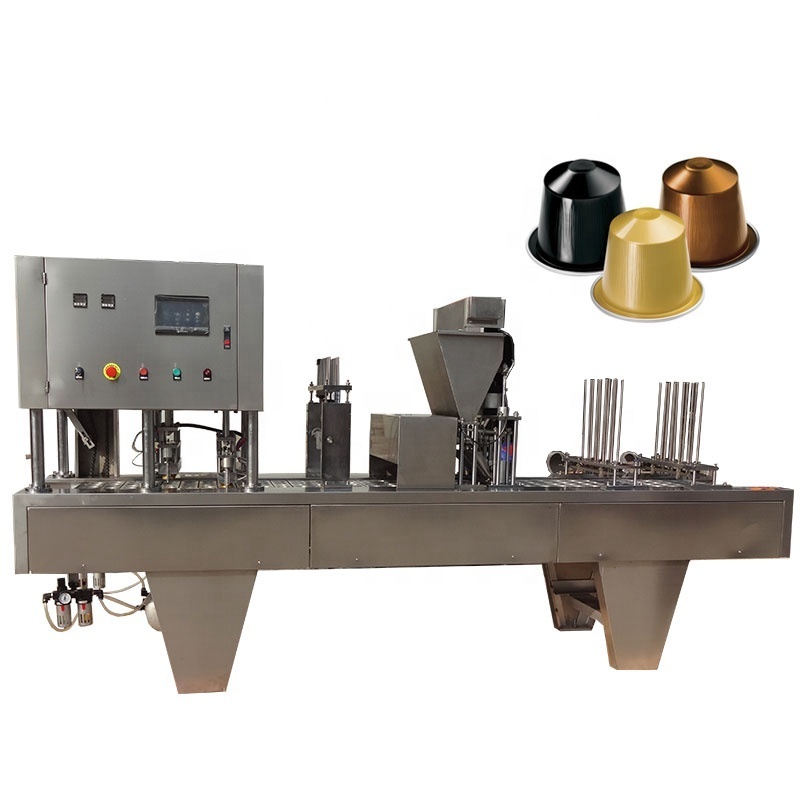

Linear Coffee Capsule Filling & Sealing Machine
is automatic high-speed sealing machine. From drop cups, filling, put the film, print dates, twice sealing to out are all automatic operation. The electrical and pneumatic components are all using famous brands ( can be also customized by customers' requirements), with stable quality, long life. It is mainly used in the products packing like: coffee powder, milk powder, rice, wheat powder and so on.
Features:
1. The whole machine with advanced design, reasonable structure, reliable performance.
2. Automatic operation, the production rate can be adjustable, simple and safe operation, increase productivity, reduce labor costs.
3. Photocell eye calibration, ensure the accuracy of filling.
4. Twice of sealing, the pressure of sealing can be adjustable. Can be sealed according to customer' requirements for easy to tear and not easy to tear, which embodies a higher level of human design.
5. The sealing edges are smooth and flawless.
6. The machine can be customized according to customer' needs and add other auxiliary functions.
| Item | coffee powder filling machine/coffee nespresso capsules/k cup filling machine | ||||
| Model | NC-4/KC-4 | NC-6/KC-6 | NC-8/KC-8 | NC-10/KC-10 | NC-12/KC-12 |
| Capacity | 3000-4000cups/h | 4000-5000cups/h | 5000-6000cups/h | 6000-7000cups/h | 7000-8000cups/h |
| Filling Capacity | 5-30ml | 5-30ml | 5-30ml | 5-30ml | 5-30ml |
| Total Power | 4KW | 4.5KW | 5KW | 5.5KW | 6KW |
| Air Consumption | 0.65 cubic meters/min | 0.68 cubic meters/min | 0.70 cubic meters/min | 0.73 cubic meters/min | 0.78 cubic meters/min |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Temperature Range | 0-300℃ | 0-300℃ | 0-300℃ | 0-300℃ | 0-300℃ |
| Machine Weight | 800KG | 900KG | 950KG | 1000KG | 1100KG |
| Size | 3500*800*1750 | 3500*1100*1750 | 3900*800*1750 | 3900*1100*1750 | 3900*1300*1750 |
