Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Langir
-
Model Number:
-
V12
-
IP level:
-
IP65
-
Color:
-
Red Yellow Green Blue White Black
-
Transport Package:
-
50PCS/Box
-
Operation type:
-
Momentory
-
Material:
-
Aluminum/Stainless steel/Nickel plated brass
-
Protection:
-
IK09/ IP65
-
Mounting Hole Size:
-
Dia 12mm
-
Keyword:
-
Standard Light Switch
-
Name:
-

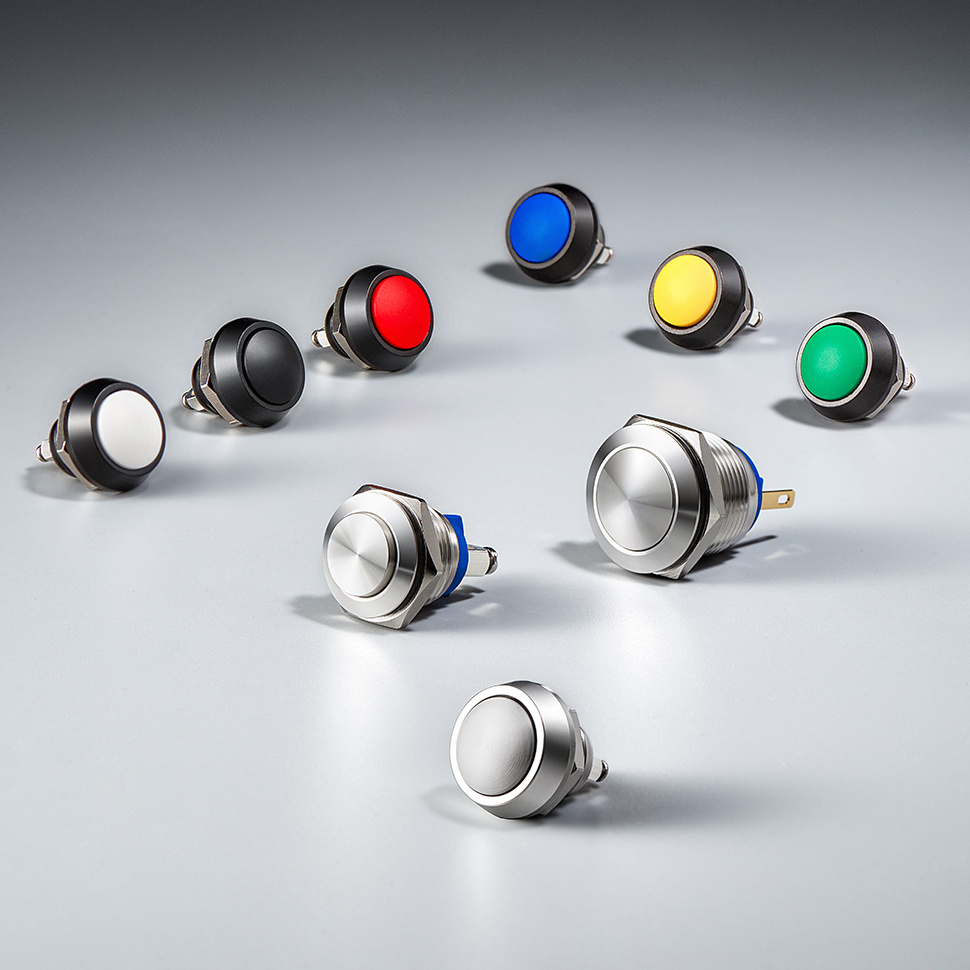

12mm Mushroom Push Button Switch
-
Specification:
-
0.6kgs/box
-
Product name:
-
Pushbutton Switch
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
2A
-
Max. Voltage:
-
48VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Langir
-
Model Number:
-
V12
-
IP level:
-
IP65
-
Color:
-
Red Yellow Green Blue White Black
-
Transport Package:
-
50PCS/Box
-
Operation type:
-
Momentory
-
Material:
-
Aluminum/Stainless steel/Nickel plated brass
-
Protection:
-
IK09/ IP65
-
Mounting Hole Size:
-
Dia 12mm
-
Keyword:
-
Standard Light Switch
-
Name:
-
12mm Mushroom Push Button Switch
-
Specification:
-
0.6kgs/box
-
Product name:
-
Pushbutton Switch
Product Information
|
Type
|
V12
|
|
|
|
|||
|
Actuator Options
|
Round
|
|
|
|
|||
|
Function
|
Momentary NO
|
|
|
|
|||
|
Number of Switch
|
Single Control Switch
|
|
|
|
|||
|
Max. Panel Thickness
|
0.236″ (6.0mm)
|
|
|
|
|||
|
Terminal
|
Screw / Solder lug (2.8 x 0.5)
|
|
|
|
|||
|
Max. Switch Rating
|
2A/ 48VDC
|
|
|
|
|||
|
Contact Resistance
|
50mΩ
|
|
|
|
|||
|
Insulation Resistance
|
1000mΩ
|
|
|
|
|||
|
Dielectric Strengh
|
2000VAC
|
|
|
|
|||
|
Operation Temp.
|
-20°C ~ +55°C
|
|
|
|
|||
|
Mechanical Life
|
>1,000,000cycles
|
|
|
|
|||
|
Electrical Life
|
>200,000cycles
|
|
|
|
|||
|
Torque
|
5 ~ 14Nm
|
|
|
|
|||
|
Operation Pressure
|
~5.5N
|
|
|
|
|||
|
Operating Stroke
|
~2.5mm
|
|
|
|
|||
|
Protection
|
IP65
|
|
|
|
|||
|
Contact
|
Silver Alloy
|
|
|
|
|||
|
Actuator
|
Stainless Steel/ Brass/ PBT
|
|
|
|
|||
|
Body
|
Stainless steel/Nickel plated brass/Zin-Al Alloy
|
|
|
|
|||
|
Base
|
PBT
|
|
|
|
|||
Products Description
IP65 Waterproof
As it is full metal appearance and with a rubber ring, the switch achieves IP65 waterproof degree. It can used in wet environment,such as boat control panel, kitchen, outdoors etc. Note that this switch can be used under water.
Long Work Life
The metal shell and push part is not easy to damage. The Mechanical work Life is 1,000,000 times The switch use Silver Alloy contact to make the Electrical Work Life more than 50,000 times.
Pure Led Lights
Switch use Light-lasting lamp beads, bright and dazzling brightness, long service life.
The work life of the led light is morethan 40,000 hours.
Use bidirectional lamp bead: + and - wires can inversed without any risk
Auto Refit
Use this switch to replace the light switch, horn switch or other control switches in the cars/ boats/ trucks. Bright and comfortable Led and metal appearance make the switch very cool.
Door Bell/ Entrance Guard Push Button
It can use as a door bell, entrance guard push button switch in the outdoors. As it is IP65, it can work relatively harsh
environment.
environment.
Household Applicances Control
It is also a good choice to use it as a replacement switch of household Appliances. Such as table lamp switch, PC switch, Audio
switch.
switch.
