1、
Flame cutting
： Suitable for cutting carbon steel larger than 20mm；
2、
Plasma cutting
：Plasma cutting cost is 1/3~1/2 of flame cutting；So the plasma is suitable for cutting carbon steel within 20mm；
3、Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting
。
|
Mechanical Components
|
Description
|
|
Horizontal rail Width
|
3m
|
|
Effective cutting width
|
2.5m
|
|
Longitudinal rail Length
|
5m
|
|
Effective cutting length
|
4m
|
|
CNC Cutting torch
|
flame,plasma,flame & plasma
|
|
CNC Oxy-fuel cutting torch
|
Wuhan lansun
|
|
Auto-ignitiondevice
|
Wuhan lansun
|
|
Torch height controller
|
Automatci height controller
|
|
Plasma source
|
China brand LGK100A LGK120A or USA brand .
|
|
CNC plasma cutting torch
|
According to plasma power source
|
|
Plasma cutting speed
|
50-6500mm/min
|
|
Oxy-fuel cutting thickness
|
5—120mm
|
|
Oxy-fuel cutting speed
|
50-3500mm/min
|
|
Cutting torch lifting distance
|
120mm
|
|
Drive Mode
|
dual drive
|
|
Interface
|
7 inch True color Display with Spanish language
|
|
CNC control system
|
Beijing Start control system
|
|
Programming and nestling software
|
Fastcam
|
|
Driving motor
|
Stepper Motor
|

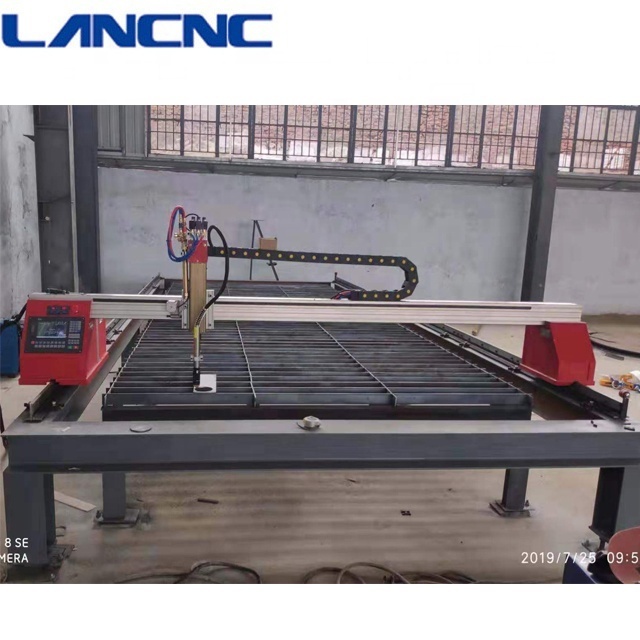

1. Gantry structure, large cutting width: the horizontal width is 3M, the effective cutting width is 2.5m, the longitudinal track is 5 m, effective cutting length is 4m.
2. The cross beam with oblique braces and distal support, good stiffness, high precision.Installation is direct insertion, it’s portable and convenient to move.
3.It can be configured as flame cutting, plasma cutting or flame and plasma dual function.
4. flame cutting is automatic ignition, plasma cutting adjust height automatically by arc pressure.
5. After disassembling, the whole machine is only two packages,Easy to transportation and storage.
6. Providing detailed videos of installation, operation and maintenance of machines.
>High-reliability, Prevents system from strong plasma disturbs and lightning strike etc;
>Chinese and English , Russian , Spanish ,
more than 10 languages
can switch easily;
>Adopt USB disk to Read/Write program to upgrade software.
Plasma with automatic arc voltage height controller
.
|
Packaging
|
|
|
|
Size
|
227 (L) * 46(W) * 26 (D)
49 (L) * 54(W) * 58 (D)
|
|
|
Weight
|
160KG - 260KG
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). The wooden box will be fumigated.
|
|
