Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
CSSGO-12-DC 600mm
-
Product Name:
-
Swing Gate Operator
-
Keyword:
-
Gate Opener Swing,automatic gate opener swing,gate opener
-
Power supply:
-
DC24V
-
Motor Power:
-
DC 80W;AC180W
-
Max.Gate Weight:
-
DC Type 350kg/Leaf
-
Max.Leaf Length:
-
DC 3m
-
Working Temperature:
-
-45°C~+70°C
-
Use Frequency:
-
Continuously
-
Stroke:
-
600mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
CSSGO-12-DC 600mm
-
Product Name:
-
Swing Gate Operator
-
Keyword:
-
Gate Opener Swing,automatic gate opener swing,gate opener
-
Power supply:
-
DC24V
-
Motor Power:
-
DC 80W;AC180W
-
Max.Gate Weight:
-
DC Type 350kg/Leaf
-
Max.Leaf Length:
-
DC 3m
-
Working Temperature:
-
-45°C~+70°C
-
Use Frequency:
-
Continuously
-
Stroke:
-
600mm
Specification
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Application
|
Villa
|
|
Design Style
|
Modern
|
|
Place of Origin
|
China
|
|
Brand Name
|
CHISUNG
|
|
Model Number
|
CSSGO-12
|
|
Product Name
|
Swing Gate Operator
|
|
Application
|
Home
|
|
Power supply
|
DC24V;Optional Ac220V/110V
|
|
Motor Power
|
DC 80W;Optional AC180W
|
|
Max.Gate Weight
|
DC Type 350kg/Leaf;Optional AC Type 300kg/Leaf
|
|
Max.Leaf Length
|
DC 3m;Optional Ac 400mm Stroke 2.5m,Ac 600m Stroke 3m
|
|
Working Temperature
|
-45°C~+70°C
|
|
Use Frequency
|
Continuously(DC);25%(AC)
|
|
Stroke
|
600;Optional 400mm
|
Product Description

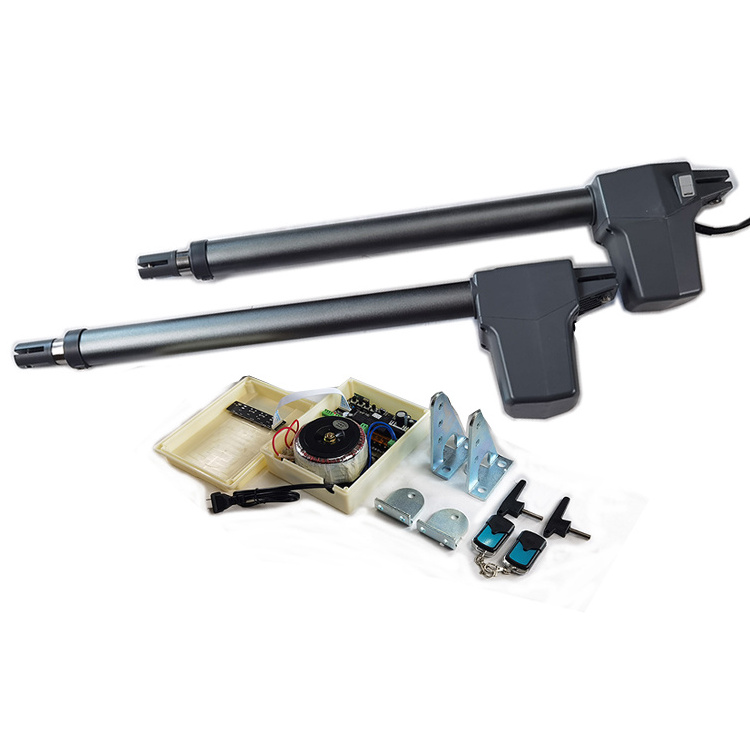

Standard dual arms gate opener kit
1.two arms with dc24v motors
2.one pcb circuit board motherboard
3.one transformer
4.one control box
5.two remote controls
6.two wrenches
7.Install hardware accessories
Details Images
Function&Features
1.Four Models Available
CSSGO-12 swing gate opener according to different requirements,there are four models available,
AC ordinary model(400mm stroke),AC extra long(600mm stroke),DC ordinary model(400mm stroke),
DC extra long(600mm stroke)
2.Electronic Protection
Anti-crushing protecting is ensured by an electroic device installed on the equipment,which directly controls drive torque,in case of an emergency,manual operation is assured by a special lever release stystem with cusomized wrench
3.Low Noise
Precision mechanical structural,electrical motor with high precision bass,ensure that the entire system is running low noise
-45°C~+70°C.
Packing & Delivery
carton
