Food industry Chicken Duck Hatchery Slaughtering Cooling chiller Air cooled water chiller

Food industry Chicken Duck Hatchery Slaughtering Cooling chiller Air cooled water chiller

FOB Reference Price: Get Latest Price

≥1 Pieces

US $8220

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V/50hz as standard, others available

Dimension(L*W*H):: 4680x2100x2250mm

Weight:: 4120 KG

Power:: 141.6 kW

Working Temperature Range:: 0deg C ~50deg C

Product name:: Air cooled screw chiller

Compressor type:: Semi-hermetic Screw

Compressor brand:: Hanbell, Bitzer

Condenser:: Finned copper tube

Evaporator:: Shell and tube

Solenoid valve:: Danfoss

Expansion valve:: Danfoss

Control System:: PLC/ Microcomputer

Refrigerant type:: R-22/R407C/R134A/R404A

Working industry:: Plastic,rubber, chemical, food, plating

Quick Details

Condition:: New

Place of Origin:: Guangdong, China

Brand Name:: SCY

Voltage:: 380V/50hz as standard, others available

Dimension(L*W*H):: 4680x2100x2250mm

Weight:: 4120 KG

Power:: 141.6 kW

Working Temperature Range:: 0deg C ~50deg C

Product name:: Air cooled screw chiller

Compressor type:: Semi-hermetic Screw

Compressor brand:: Hanbell, Bitzer

Condenser:: Finned copper tube

Evaporator:: Shell and tube

Solenoid valve:: Danfoss

Expansion valve:: Danfoss

Control System:: PLC/ Microcomputer

Refrigerant type:: R-22/R407C/R134A/R404A

Working industry:: Plastic,rubber, chemical, food, plating

Product Overview

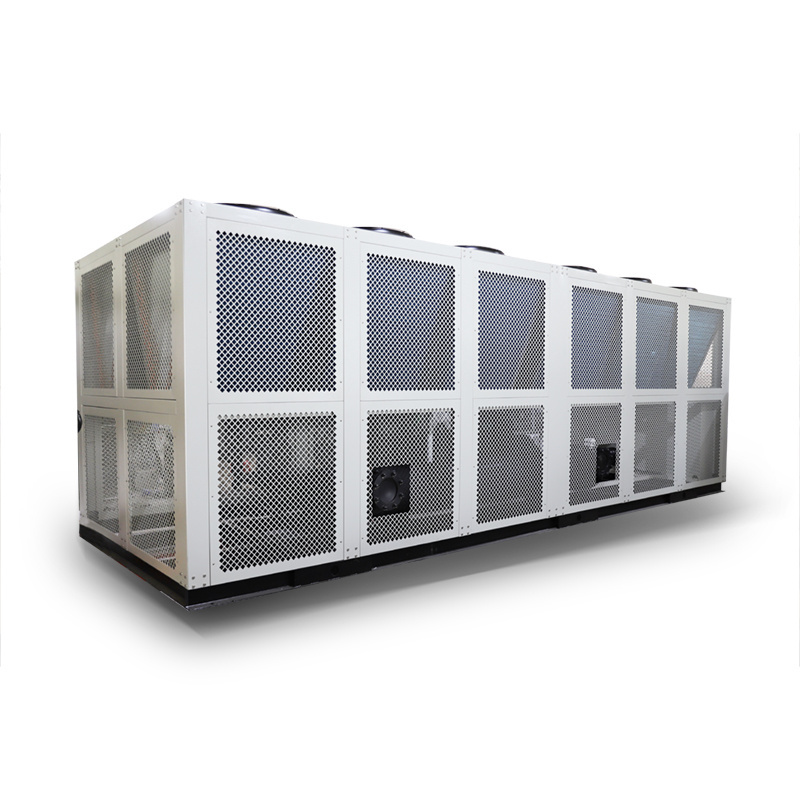

Food Industry Air Cooled Screw Chiller

Water chillers are integral to the poultry industry, ensuring the safety, quality, and freshness of chicken and duck products from hatchery to distribution. These systems contribute to the efficient processing of poultry products while meeting stringent food safety standards and regulations, widely applied to Hatchery Egg Cooling,Incubator Cooling, Slaughtering Pre-Slaughter Cooling, Stunning and Bleeding,Post-Slaughter Processing.

FEATURES AT A GLANCE

1) Air cooled screw chiller cooling capacity : 87kW~800kW /25Ton~230Ton

2) Adopt reliable screw compressor, brand Bitzer/ Hanbell/Fusheng

3) Temperature control: 5deg C~35deg C

4) Air cooled finned copper tube condenser

5) Closed shell and tube evaporator

6) Modbus485 or Ethernet internet interface

7) Easy installation, no need cooling tower

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Model			SCY-160AS	SCY-180AS	SCY-200AS
Power supply			380-420V,440-480V,50Hz or 60Hz, 3phase
Cooling capacity	kw	433	506	557
		TONS	123.12	143.87	158.37
		Kcal/h	372380	435160	479020
Running current	A	204.8	240	247.5
Power consumption	kW	120.5	141.6	145.6
Freeze water flow	m³/h	79	90	101
Compressor	Type	Semi-hermetic screw type
		Start method	Y-△ start
		Volume control	0,33,66,100 OR 0,25,50,100 OR Stepless
		Input power(kw)	108.5	126.6	130.6
Refrigerating oil	Type	HBR-A01
Refrigerating oil		Filling volume(L)	24	24	28
Refrigerant	Type	R22, R134a, R407c
		Control method	External balanced thermostatic expansion valve
		Filling volume(kg)	80	92	103
Evaporator	Type	Shell and tube
Evaporator		Pipe diameter(mm)	DN150
Condenser	Type	Effective Finned Copper Tube+Low Noise Axial Fans
Condenser		Air volume(m³/h)	160000	180000	200000
Safty protector			Dual pressure switch, frost-proof protection, soluble pin/safety valve, overload protective device, coil over-heating protection system, temperature automatic protection switch.
Dimension	Length(mm)	4250	4680	6090
		Width(mm)	2100	2100	2100
		Height(mm)	2250	2250	2250
Weight(kg)			3980	4120	4230

Model			SCY-240AS	SCY-260AS	SCY-300AS
Power supply			380-420V,440-480V,50Hz or 60Hz, 3phase
Cooling capacity	kw	672	730	842
		TONS	191.07	207.56	239.41
		Kcal/h	577920	627800	724120
Running current	A	282	309.4	364.5
Power consumption	kW	165.5	182	214.4
Freeze water flow	m³/h	119	130	152
Compressor	Type	Semi-hermetic screw type
		Start method	Y-△ start
		Volume control	0,33,66,100 OR 0,25,50,100 OR Stepless
		Input power(kw)	150.5	167	199.4
Refrigerating oil	Type	HBR-A01
Refrigerating oil		Filling volume(L)	32	32	36
Refrigerant	Type	R22, R134a, R407c
		Control method	External balanced thermostatic expansion valve
		Filling volume(kg)	121	126	150
Evaporator	Type	Shell and tube
Evaporator		Pipe diameter(mm)	DN200
Condenser	Type	Effective Finned Copper Tube+Low Noise Axial Fans
Condenser		Air cooling volume(m³/h)	223000	245000	285000
Safty protector			Dual pressure switch, frost-proof protection, soluble pin/safety valve, overload protective device, coil over-heating protection system, temperature automatic protection switch.
Dimension	Length(mm)	5230	5630	6550
		Width(mm)	2100	2100	2210
		Height(mm)	2260	2320	2350
Weight(kg)			4650	5570	7420

PRODUCT CONFIGURATION

Air-cooled screw chiller-compressor features: • Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. one or two compressors applied to one chiller according to the customer's request or cooling capacities.

• Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.

• Most advanced patented highest precision manufacturing process.

• Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.

Bitzer Compressor

Germany Imported brand Bizter compressor

Hanbell Compressor

China Taiwan brand Compressor

Evaporator

1) Highly efficient closed loop shell and tube type heat exchanger, outer with 30mm insulation ,less cooling loss.

2) The U-shaped structure of the heat exchange tube bundle can be used to extract and clean the internal scale as a whole, which is convenient for maintenance.

Air cooled Condenser

1) Fin type air-cooled condenser adopts imported high purely, seamless screw thread copper and special aluminum fin after mechanical expanding joint closely.

2) special aluminum fin after mechanical expanding joint closely. It ensures fin type condenser work in best efficiency;

Big LED Touch Screen;

With temperature display and status running inquiry

PLC control board programmed

Schneider electric elements for breaker, relay and contactors

Axial fans to dissipate heat to air;

Low noise and small vibration
