Name:
-
LED Matrix Artnet DMX Controller BC-216
-
Supply Voltage:
-
DC5V DC12V-DC24V
-
Output Current:
-
3A X 16CH(Built-in 5A fuse)
-
Input Ethernet control protocol:
-
ArtNet
-
Support IC:
-
2811/2801/6803/3001/8806/9813/TM1814/SK6812 Series
-
Control Pixels:
-
RGB:680 Pixels X4CH RGBW:512 Pixels X4CH
-
Output DMX512:
-
Two port(2X512 Channels)
-
Packing Size:
-
L258xW145xH41mm
-
Gross Weight:
-
1100g
-
Certification:
-
CE & RoHS
Quick Details
-
Warranty(Year):
-
2-Year
-
Type:
-
MANUAL SWITCH
-
Max. Load Power:
-
576W/12V 1152W/24V
-
Product Weight（kg）:
-
1.5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PILEDS
-
Connection Mode:
-
ARTNET
-
Name:
-
LED Matrix Artnet DMX Controller BC-216
-
Supply Voltage:
-
DC5V DC12V-DC24V
-
Output Current:
-
3A X 16CH(Built-in 5A fuse)
-
Input Ethernet control protocol:
-
ArtNet
-
Support IC:
-
2811/2801/6803/3001/8806/9813/TM1814/SK6812 Series
-
Control Pixels:
-
RGB:680 Pixels X4CH RGBW:512 Pixels X4CH
-
Output DMX512:
-
Two port(2X512 Channels)
-
Packing Size:
-
L258xW145xH41mm
-
Gross Weight:
-
1100g
-
Certification:
-
CE & RoHS

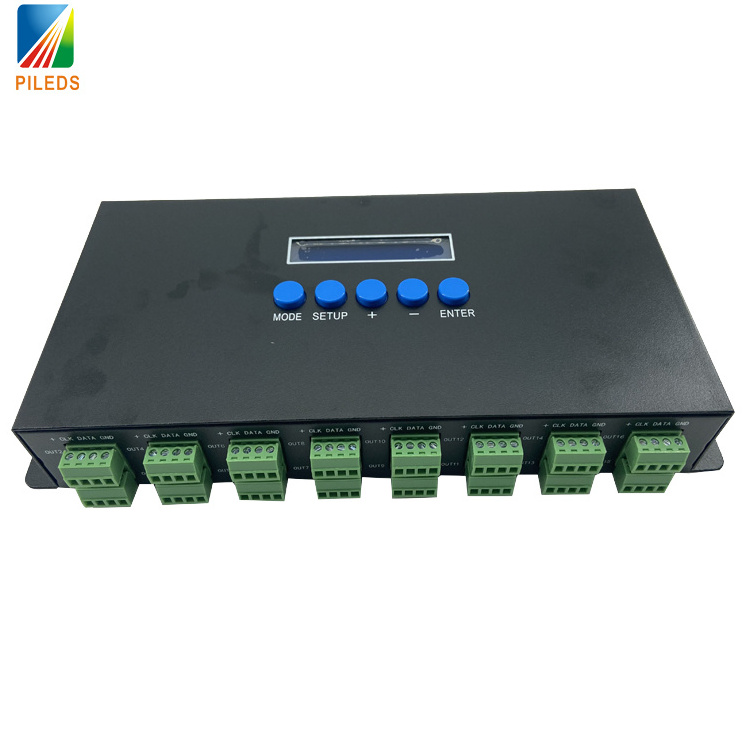

LED Matrix Artnet DMX Controller BC-216/Ethernet SPI Ethernet To SPI/DMX Pixel Light Controller/16Channel DMX Digital Controller
16Channel DMX Digital Controller Ethernet SPI Ethernet To SPI/DMX Pixel Light Controller LED Matrix Artnet DMX Controller BC-216
|
Features |
1. With LCD display and built-in WEB SERVER setting interface,easy operation
2. Support Ethernet DMX protocal ArtNet,can be expanded to other protocols.
3. Multi SPI(TTL) signal output, up to 5440 pixels control.
4.Output DMX512 signal at the same time, convenient for the connection of different types LED lamp.
5. Support various LED driving IC, flexible control.
6. Support online firmware upgrade
7. Adopt DIP plug-in design for the easily-worn parts,Users can repair the damage caused by worng wiring or short circuit
8. Built-in test mode,using a networking interface with indicator light,work status is clear when at a glance.
|
Images |
|
Specications |
Instruction of interface and ports:
Wiring instruction of SPI output:
To output LPD6803/LPD8806/P9813/WS2801 controlling signal, it requires at least three lines:
| DATA | 6803/8806/9813/2801 DATA |
| CLK | 6803/8806/9813/2801 CLK |
| GND | GND, connect with the chip GND |
To output WS2811/TLS3001 controlling signal, it requires at least two lines:
| DATA | Ws2811/ TLS3001 DATA-CLK |
| GND | GND, connect with the chip GND |
|
