Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
KN
-
Model Number:
-
KN-Gabion
-
Wire Gauge:
-
2.0- 4.0 mm
-
Product name:
-
Iron Wire Mesh Galvanized/PVC Coated Gabion
-
Hole size:
-
60*80/80*100/100*120 mm
-
Wire diameter:
-
2.0mm-4.0mm
-
Feature:
-
Easily Assembled, Anti-rust
-
Surface treatment:
-
Galvanized+PVC Coated
-
Gabion Box Size:
-
1*1*1m / 1*1*2m/1*1*3m
-
Weave Style:
-
Hexagonal Double Twisted Weaving
-
Packing:
-
Bundle
-
MOQ:
-
100 PCS
-
lifespan:
-
20 years
Quick Details
-
Material:
-
Low-Carbon Iron Wire
-
Type:
-
Chain Link Mesh
-
Application:
-
Gabions,Retaining wall protection,
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
KN
-
Model Number:
-
KN-Gabion
-
Wire Gauge:
-
2.0- 4.0 mm
-
Product name:
-
Iron Wire Mesh Galvanized/PVC Coated Gabion
-
Hole size:
-
60*80/80*100/100*120 mm
-
Wire diameter:
-
2.0mm-4.0mm
-
Feature:
-
Easily Assembled, Anti-rust
-
Surface treatment:
-
Galvanized+PVC Coated
-
Gabion Box Size:
-
1*1*1m / 1*1*2m/1*1*3m
-
Weave Style:
-
Hexagonal Double Twisted Weaving
-
Packing:
-
Bundle
-
MOQ:
-
100 PCS
-
lifespan:
-
20 years
Product Description
The gabions are made of high corrosion resistant, high strength, ductile low carbon steel wire or PVC coated steel wire woven together using machinery. The diameter of the low carbon steel wire used varies according to ASTM and EN standards, depending on the design requirements. The tensile strength of the wire is not less than 38kg/m2 and the metal coating weight is generally higher than 245g/m2. The length of the twisted part of the double wire must not be less than 50 mm to ensure that the metal plating and PVC plating of the twisted part of the wire are not damaged.
|
Gabion basket specification
|
value
|
|
|
Material
|
Galvanized low carbon steel wire
|
|
|
Wire diamater |
Mesh wire: 2.0mm-4.0mm
|
|
|
|
Selvadge wire:3.4mm,3.8mm
|
|
|
|
Lacing wire:2.2mm,2.5mm
|
|
|
Mesh size
|
60*80mm, 80*100mm, 100*120mm
|
|
|
Gabion size
|
1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m
|
|
|
Surface treatment
|
Hot dipped galvanized, PVC coated
|
|
|
Characteristics
|
Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported.
|
|
|
Usage
|
Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.
|
|
Product Information
Application

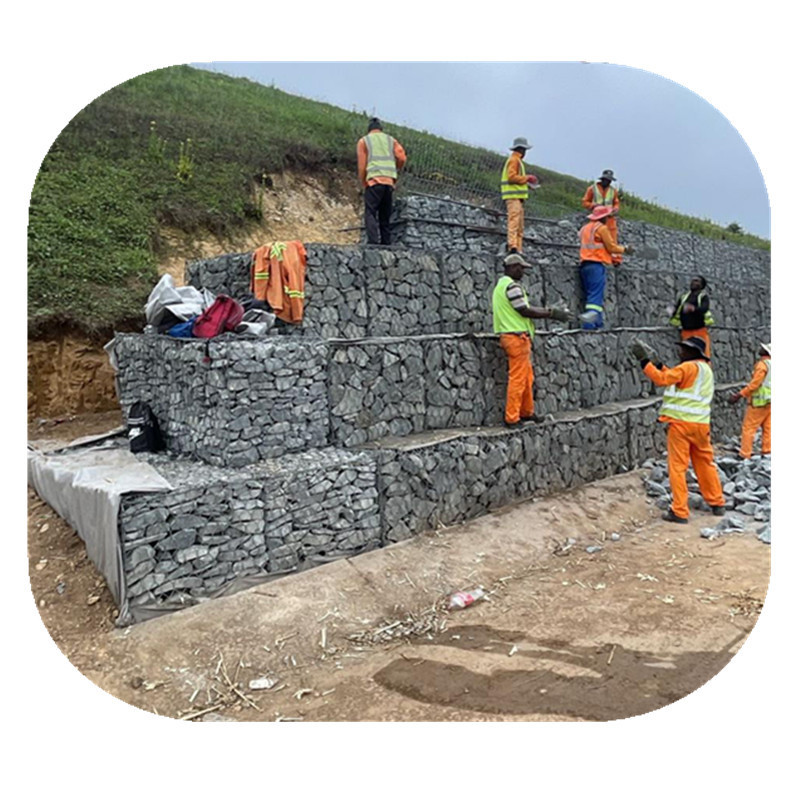

Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.
Packing & Delivery
one 20 feet container can loading around 1000 pc gabion, 11000 square maters
one 40 feet container can loading full of 1500 pc gabion , 16000 square meters
