Quick Details
-
Dimension(L*W*H):
-
2180*1505*2285mm
-
Power (kW):
-
4
-
Weight (KG):
-
3000 KG
-
Name:
-
verticalslotting machine for metal
-
Max.slotting length:
-
200mm/320mm
-
Max.dimensions of workpiece(:
-
600*320mm
-
Max.weight of workpiece:
-
500kg
-
Max.cutting force:
-
7500n
-
No.of strokes per minute:
-
20.32.50.80.r.p.m
-
Vertical ajustment of ram:
-
315mm
-
Inclination of ram:
-
0-8°
-
Rotating speeed of main drive motor:
-
1430rpm
-
Power of rapid drive motor:
-
3/4kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNI-TECH
-
Voltage:
-
220/380/400
-
Dimension(L*W*H):
-
2180*1505*2285mm
-
Power (kW):
-
4
-
Weight (KG):
-
3000 KG
-
Name:
-
verticalslotting machine for metal
-
Max.slotting length:
-
200mm/320mm
-
Max.dimensions of workpiece(:
-
600*320mm
-
Max.weight of workpiece:
-
500kg
-
Max.cutting force:
-
7500n
-
No.of strokes per minute:
-
20.32.50.80.r.p.m
-
Vertical ajustment of ram:
-
315mm
-
Inclination of ram:
-
0-8°
-
Rotating speeed of main drive motor:
-
1430rpm
-
Power of rapid drive motor:
-
3/4kw

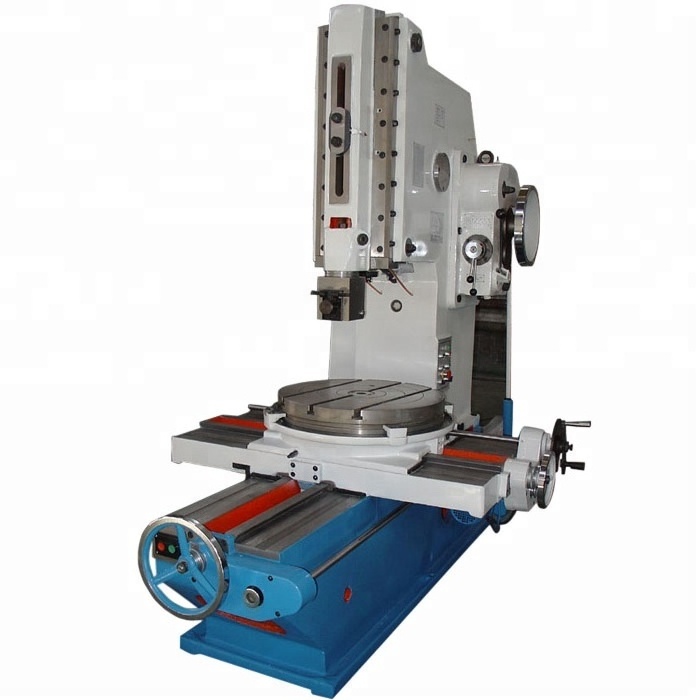

B5032 vertical metal planer slotting machine for metal
Vertical slotting machine Main features:
1. This machine is used for slotting the flat and formed surface keyways, etc.
2. It is suitable for either single piece of small batch production
3. The main transmission mechanism is used for converting the rotating motion of the crank gear into reciprocating motion of rain
4. The worktable Is designed for longitudinal, cross and rotary feeding both automatically (only for D type model) and manually
5. The feed is stopped automatically, when the worktable is in case of trou ble
| MODEL | B5020 |
B5032
|
| Max.slotting length | 200mm | 320mm |
| Max.dimensions of workpiece(L*H) | 485*200mmm | 600*320mm |
| Max.weight of workpiece | 400kg | 500kg |
| Max.cutting force | 5500N | 7500N |
| No.of strokes per minute | 32,50,80,125,r ,p,m | 20.32.50.80.r.p.m |
| Vertical ajustment of ram | 230mm | 315mm |
| Inclination of ram | 0-8° | 0-8° |
| Distance between tool holdingsurface and column front | 485mm | 600mm |
| Max.tool shank size (W*H) | 25*40mm | 25*40mm |
| Table diameter | 500mm | 630mm |
| Distance between table surface and low end of ram | 320mm | 490mm |
| Max.longitudinal travel of table | 400/450mm | 480/620mm |
| Max.cross travel of table | 450/500mm | 480/560mm |
| Max.Rotary angle of table | ±360° | ±360° |
| Range of table longitudinal and cross power feeds | 0.08-1.21mm | 0.08-1.21mm |
| Range of table power feeds | 0.052-0.783 | 0.052-0.783 |
| Power of rapid drive motor | 3kw | 4kw |
| Rotating speeed of main drive motor | 1430r.p.m | 960r.p.m |
| Overall dimensions (L*W*H) | 18355*1305*1980mm | 2180*1505*2285mm |
| Weight(approx) | 2400kg | 3500kg |
| PACKING LIST FOR SLOTTING MACHINE MODEL:B5020 B5032 | ZD | |||||
| 2 | page 2 | |||||
| symbol | Name | Specification | Quantity | Material | Remarks | |
| 20 | 32 | |||||
| B5020 | Slotting | 200mm | 4 V-belts | |||
| B5032 | Machine | 320mm | ||||
| Testing oertificate | 1 | 1 | ||||
| Operation manual | 1 | 1 | ||||
| TS2-5A | Inner hexayen spanner | 12 | 1 | 1 | 35 | |
| GB6170-86 | Hexagon nuts style I grades A | M16 | 4 | 6 | 35 | |
| GB799-88 | Eyelet bolts | M16x400 | 4 | 6 | A3 | |
| GB97.1-85 | Flain washers-grade A | 16-140HV | 4 | 6 | A3 | |
| S91-1 | Double end panner | 10x12 | 1 | 1 | 45 | |
| S91-2 | Single end spanner | 19 | 1 | 1 | 45 | |
| S91-2 | Ditto | 24 | 1 | 1 | 45 | |
| S91-2 | Ditto | 30 | 1 | 1 | 45 | |
| S91-2 | Ditto | 36 | 1 | 1 | 45 |
If you are interested in vertical slotting machine, pls contact me
