Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OEM&ODM
-
Model Number:
-
1/8"-4"
-
Product name:
-

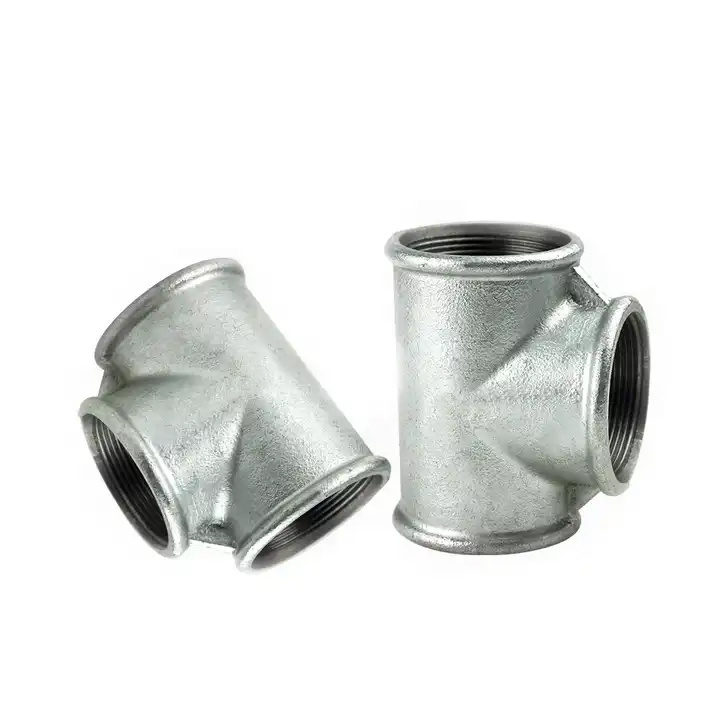

Malleable iron pipe fittings
-
Standard:
-
ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME, ANSI B16.5/DIN/EN1092/UN/BS/AS
-
Surface:
-
Hot-dipped galvanized, Normal black, Shining black
-
Keyword:
-
Elbows,Tees,Crosses,Sockets,plugs,caps,nuts,Unions,bushings,nipples
-
Color:
-
Sliver/Black
-
Certificate:
-
GB/T19001-2008-ISO 9001:2008
-
Application:
-
Steam, air, gas and oil pipes or for many
-
Threaded:
-
ISO7/1, DIN2999, NPT
-
Packaging Details:
-
plywood cases, pallets, nylon bags
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal&Reducing
-
Head Code:
-
round square
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OEM&ODM
-
Model Number:
-
1/8"-4"
-
Product name:
-
Malleable iron pipe fittings
-
Standard:
-
ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME, ANSI B16.5/DIN/EN1092/UN/BS/AS
-
Surface:
-
Hot-dipped galvanized, Normal black, Shining black
-
Keyword:
-
Elbows,Tees,Crosses,Sockets,plugs,caps,nuts,Unions,bushings,nipples
-
Color:
-
Sliver/Black
-
Certificate:
-
GB/T19001-2008-ISO 9001:2008
-
Application:
-
Steam, air, gas and oil pipes or for many
-
Threaded:
-
ISO7/1, DIN2999, NPT
-
Packaging Details:
-
plywood cases, pallets, nylon bags
Product Description
Specification
|
MALLEABLE IRON PIPE FITTINGS
|
|
|
|
|
||||
|
Material
|
Black heart malleable iron
|
|
|
|
||||
|
American Standard
|
Threads : ANSI B1.20.1
|
|
|
|
||||
|
|
Dimension: ASME B 16.3, B16.14. Union: B 16.39
|
|
|
|
||||
|
British Standard
|
Threads :ISO 7/1
|
|
|
|
||||
|
|
Dimension: BS EN 10242, BS 143&1256
|
|
|
|
||||
|
DIN Standard
|
Threads : ISO 7/1
|
|
|
|
||||
|
|
Dimension : ISO 49, DIN2950, EN10242
|
|
|
|
||||
|
Chemical property
|
(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
|
|
|
|
||||
|
Physical property
|
Tensile strength >=350MPa, Elongation >=10%, Hardness <=150HB
|
|
|
|
||||
|
Testing pressure
|
2.5MPa, 100% test before shipment
|
|
|
|
||||
|
Working pressure
|
1.6MPa
|
|
|
|
||||
|
Type
|
Banded without ribs,Beaded with ribs,Beaded without ribs
|
|
|
|
||||
|
Surface
|
Galvanized
|
|
|
|
||||
|
|
Normal black/Shining black
|
|
|
|
||||
|
Series
|
Heavy, standard, medium, light
|
|
|
|
||||
|
Model
|
Elbows, Tees, Crosses, Bends, Unions, Bushings
|
|
|
|
||||
|
|
Lateral Y Braches, Sockets, Nipples, Hexagon/Round
|
|
|
|
||||
|
|
Caps, Plugs, Locknuts, Flanges, Side Outlet Tees
|
|
|
|
||||
|
|
Side Outlet Elbows, etc.
|
|
|
|
||||
|
Related products
|
1. Carbon steel nipples and sockets
|
|
2. Flanges
|
|
||||
|
|
3. Carbon steel butt-welding fittings
|
|
4. Pipes
|
|
||||
|
|
5. High-pressure fittings
|
|
6. Valves
|
|
||||
|
|
7. P.T.F.E .thread seal tapes
|
|
8. Brass fittings
|
|
||||
|
|
9. Ductile iron pipe fittings
|
|
9. Ductile iron pipe fittings
|
|
||||
|
|
11. Grooved fittings
|
|
12. Sanitary fittings, etc.
|
|
||||
|
Connection
|
Male, Female
|
|
|
|
||||
|
Shape
|
Equal, Reducing
|
|
|
|
||||
|
Certificate
|
BSI, ANAB, ISO9001,FM
|
|
|
|
||||
|
Applications
|
Suitable for Pipe lines connect of steam, air, gas, oil and so on.
|
|
|
|
||||
|
Package
|
1. Cartons without pallets
|
|
|
|
||||
|
|
2. Cartons with pallets
|
|
|
|
||||
|
|
3. Double woven bags
|
|
|
|
||||
|
|
Or as buyer’s requirements
|
|
|
|
||||
