Quick Details
-
Brand Name:
-
OEM/solar charge controller
-
Model Number:
-
PC1600F
-
Work Time (h):
-
24 Hours
-
Max PV Voltage:
-
48V
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
Rated Voltage:
-
48V
-
Charge mode:
-
MPPT(maximum power point tracking)
-
Rated voltage:
-
48V-384
-
Rated current:
-
50A
-
MPPT efficiency:
-
>98%
-
PV maximum voltage:
-
≤350V/ set
-
Input channels:
-
1 set
-
PV maximum power:
-
10KWp
-
Over charge protection voltage:
-
223V/ set
-
High temperature protection:
-
Yes
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Collector Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
OEM/solar charge controller
-
Model Number:
-
PC1600F
-
Work Time (h):
-
24 Hours
-
Max PV Voltage:
-
48V
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
Rated Voltage:
-
48V
-
Charge mode:
-
MPPT(maximum power point tracking)
-
Rated voltage:
-
48V-384
-
Rated current:
-
50A
-
MPPT efficiency:
-
>98%
-
PV maximum voltage:
-
≤350V/ set
-
Input channels:
-
1 set
-
PV maximum power:
-
10KWp
-
Over charge protection voltage:
-
223V/ set
-
High temperature protection:
-
Yes
Factory Price 120A Mppt Charging Controller Solar Inverter Charge Controller Solar Mppt 60A 100 Amps
| Models:30A 40A 50A 60A | 30A | 40A | 50A | 60A | |
| Maximum PV input power | 12V system | 400W | 480W | 600W | 720W |
| 24V system | 720W | 960W | 1200W | 1440W | |
| 36V system | 1000W | 1400W | 1800W | 2100W | |
| 48V system | 1200W | 1700W | 2200W | 2800W | |
|
PV open circuit voltage requirement(Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than bettery, then it's best
efficiency.)
|
12V system | DC20V-DC80V | |||
| 24V system | DC37V-DC105V | ||||
| 36V system | DC50V-DC160V | ||||
| 48V system | DC72V-DC160V | ||||
| Maximum PV open circuit voltage (Voc) | 12V/24V/36V/48V system |
DC190V(The controller can't work at this voltage of long duration that will break controller.Please refer to input voltage from PV |
|||
| Basic Parameter | |||||
| MPPT controller | 12V system | 24V system | 36V system | 48V system | |
| Overcharging protection voltage | 15v | 30V | 45V | 60V | |
| System voltage automatic recognition | DC9V-DC15V | DC18V-DC29V | DC30V-DC39V | DC40V-DC60V | |
| Max efficiency | >98.1%(Voc is 1.5 or 2 times than baattery, then it's best efficiency) | ||||
| PV utilization | d>99% | ||||
| Protection function | |||||
| Temperature function | 75℃ | ||||
| Fan-on temperature | >40℃ | ||||
| Fan-off temperature | <35℃ | ||||
| Properties | |||||
| Size | 235*188*100mm | ||||
| Net weight(kg) | 1.1 | ||||
| Gross weight(kg) | 1.6 | ||||

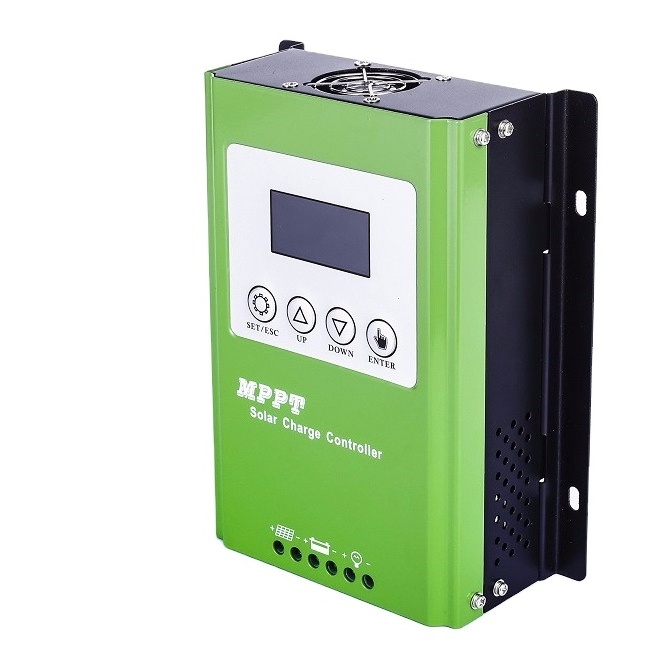

Introduction:
MPPT (Maximum Power Point Tracking)Solar Charge Controller offer an efficient, safe, multi-stage recharging process
that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized
battery recharging.
Feature:
30A/40A/50A/60A MPPT solar charge controller(Fan cooling)
12V/24V or12V/24V//36V/48V auto work
Built-in DSP controlle with high performance
3 stage charging optimizes battery performance
Overcharge protection and input PV polarity reverse protection
Suitable for battery types such as sealed lead acid vented gel and lithium battery
Can be mounted easily
1.Q: Are you trading company or manufacturer ?
A: We are factory, welcome to visit our factory at any time.
2.Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. 15-20 days if the goods are not in stock, it is according to quantity.
3.Q: Do you provide samples ?
A: Yes, we could offer the sample with the best discount.
4.Q: What is the MOQ ?
A: We don't have MOQ for first order.
5.Q: What is your terms of payment ?
A: Payment < 5000USD, 100% in advance. Payment ≥ 5000USD, 30% T/T in advance ,balance before shippment.
6.Q: stead of using In1)
24 volt battery
, Can I use (2)
12 volt batteries
wired in series?
A: this is OK. Yes, two 12V battery packs in series are 24V.
7.Q:Can work with lead acid battery ?
A:Yes you can use lead acid but why would you; LiFePO4 Is much cheaper in the longer run; with larger useable capacity and cycle life
8.Q:Can this be use as primary source of electricity or is it just as a backup source?
A:This is determined by the size of the load you are using.
This is an off-grid inverter, mainly used to connect
solar panels
and batteries to supply power to the load or to charge the batteries
