Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Engine:
-
Water Cooled
-
Transmission:
-
Auto Gears
-
Brake:
-
front/rear hydraulic disc brake
-
MAX SPEED:
-
80km/h
-
Piston displacement:
-
150cc/200cc/250cc
-
Starting system:
-
CDI Electric Start
-
Certification:
-
EC CE ISO9001
Quick Details
-
Displacement:
-
250cc
-
Brand Name:
-
SIHAO
-
Tire Size:
-
12inch
-
Place of Origin:
-
Zhejiang, China
-
Engine:
-
Water Cooled
-
Transmission:
-
Auto Gears
-
Brake:
-
front/rear hydraulic disc brake
-
MAX SPEED:
-
80km/h
-
Piston displacement:
-
150cc/200cc/250cc
-
Starting system:
-
CDI Electric Start
-
Certification:
-
EC CE ISO9001

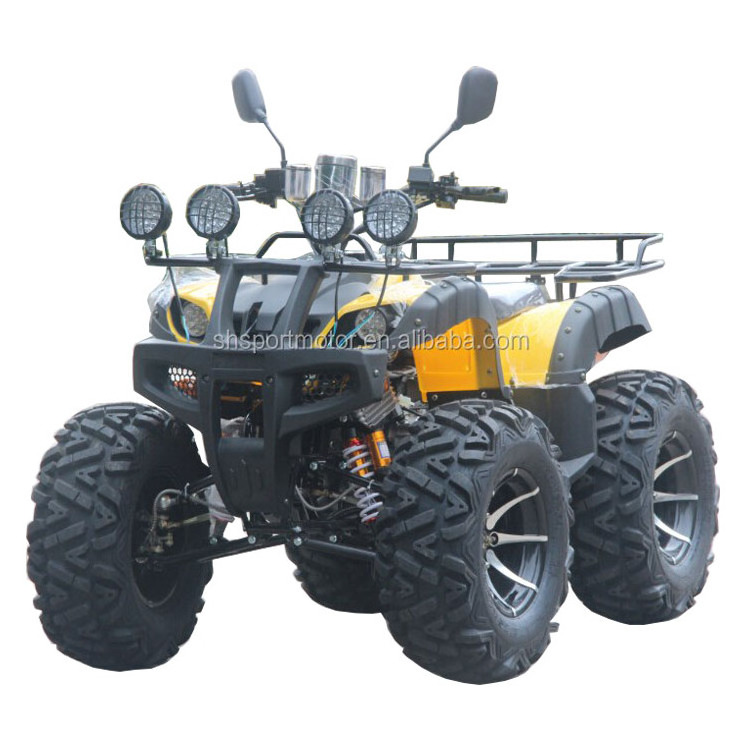

bashan atv 250cc and atv frame paint 250cc
|
1.Engine Type |
|
|
Displacement |
250cc single cylinder |
|
Starting System |
Electric start |
|
Bore&Stroke |
67*65mm |
|
Stroke |
4 stroke and ignition:CDI |
|
Cooling |
water-cooled |
|
Max.power Output |
12kw/(6500r/min) |
|
Maximum Torque |
17.5N.m/(5500r/min) |
|
2.Transmission |
|
|
Gear shift |
5-speed(4 forward gears and 1 reverse gear,plus neutral gear) |
|
Drive |
Shaft drive with rear axle differential mechanism |
|
3.Tires&Wheels |
|
|
Front tire/Wheel |
AT 25x8-12 (12 inch alloy rim) |
|
Rear tire/Wheel |
AT 25x10-12 (12 inch alloy rim) |
|
4.Brakes |
|
|
Type |
Front/rear Double hydraulic disc brakes |
|
Fuel Capacity |
8L,plastic tank |
|
5.Suspension |
|
|
Front |
Independent double-wishbone and double airbag shock |
|
Rear |
Swing arm with single oil shock |
|
6.Dimensions |
|
|
LengthxWidthxHeight |
1860x1150x1440 (includes mirror) |
|
Ground clearance |
270mm |
|
Maximum Rider Weight |
120kg |
|
Gross/Net Weight |
245/225kg |
|
Front Tread |
960mm |
|
Seat to Footstep(mm) |
460mm |
|
Rear Tread |
780mm |
|
Wheelbase(mm) |
1190mm |
|
Seat Height(mm) |
850mm |
|
7.Package |
|
|
Carton Size |
1520*820*830mm(12inch wheel are loaded one by one) |
|
Container |
20PCS/42PCS/48PCS; 20PCS/42PCS/47PCS (with spare wheel) |
Carton Size:1520*820*840mm
Container:20pcs/42pcs/48pcs
Shipping:
By express as DHL or FedEx,or by sea for sample or mass products,and can as your requested
Usually send out within 5-7days; The time for mass production relys on the stock, usually 7-20days
- 1. OEM Manufacturing welcome: Product, Package...
- 2. Sample order
- 3. We will reply you for your inquiry in 24 hours.
- 4. after sending, we will track the products for you once every two days, until you get the products.
When you got the goods, test them, and give me a feedback.If you have any questions about the problem,
contact with us, we will offer the solve way for you
