Quick Details
-
Brand Name:
-
EPEVER
-
Model Number:
-
VS2024BN
-
Work Time (h):
-
24H
-
Max PV Power:
-
480W
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE
-
Warranty:
-
2years, 2 Years
-
Product name:
-
Pwm Solar Charge Controller
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Solar System Controller
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
EPEVER
-
Model Number:
-
VS2024BN
-
Work Time (h):
-
24H
-
Max PV Power:
-
480W
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE
-
Warranty:
-
2years, 2 Years
-
Product name:
-
Pwm Solar Charge Controller
Products Description

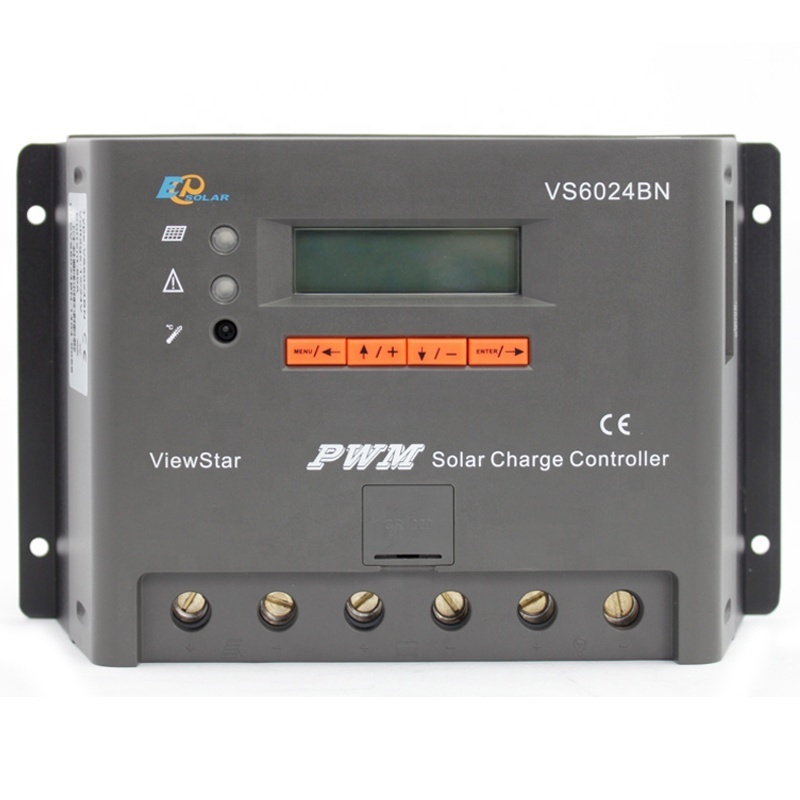

1. Series PWM charging mode
2. Dot-matrix LCD display, integrated menu display and operation
3. Excellent EMC design
4. Multiple load control modes
5. Real-time energy statistics
6. Extensive electronic protection
7. Real-time data monitoring and parameters setting
8. Standard Modbus communication protocol with RS485 interface
Details Images
Wiring order & Accessories
Connect the system in the order of ❶battery ❷ load ❸PV array in accordance with ”Schematic Wiring Diagram” and disconnect the system in the reverse order❸❷❶.
Product Paramenters
|
Model
|
VS1024BN
|
VS2024BN
|
VS3024BN
|
VS4524BN
|
VS6024BN
|
||||
|
System nominal voltage
|
12/24 VDC Auto
|
|
|
|
|
||||
|
Battery Input Voltage Range
|
9V～32V
|
|
|
|
|
||||
|
Rated charge current
|
10A
|
20A
|
30A
|
45A
|
60A
|
||||
|
Rated discharge current
|
10A
|
20A
|
30A
|
45A
|
60A
|
||||
|
Max. PV open circuit voltage
|
50V
|
|
|
|
|
||||
|
Battery Type
|
Sealed(Default) / Gel / Flooded/User
|
|
|
|
|
||||
|
Equalize Charging Voltage※
|
Sealed:14.6V/ Gel: No/ Flooded:14.8V/User:9-17V
|
|
|
|
|
||||
|
Boost Charging Voltage※
|
Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V/User:9-17V
|
|
|
|
|
||||
|
Float Charging Voltage※
|
Sealed/Gel/Flooded:13.8V/User:9-17V
|
|
|
|
|
||||
|
Low Voltage Reconnect Voltage※
|
Sealed/Gel/Flooded:12.6V/User:9-17V
|
|
|
|
|
||||
|
Low Voltage Disconnect Voltage※
|
Sealed/Gel/Flooded:11.1V/User:9-17V
|
|
|
|
|
||||
|
Self-consumption
|
≤15mA@12v; ≤10mA@24v
|
|
|
|
|
||||
|
Temperature compensation coefficient
|
-3mV/℃/2V（25℃）
|
|
|
|
|
||||
|
Charge circuit voltage drop
|
≤0.53V
|
|
|
|
|
||||
|
Discharge circuit voltage drop
|
≤0.16V
|
|
|
|
|
||||
|
LCD temperature range
|
-20℃～+70℃
|
|
|
|
|
||||
|
Working environment temperature
|
-25℃～+55℃
|
|
|
|
|
||||
|
Relative humidity
|
≤95%, N.C.
|
|
|
|
|
||||
|
Enclosure
|
IP30
|
|
|
|
|
||||
|
Grounding
|
Common Negative
|
|
|
|
|
||||
|
Communication
|
RS485 / RJ45 interface
|
|
|
|
|
||||
|
Overall dimension(mm)
|
162*85*40
|
162*100*50
|
200*103*58
|
205*109*59
|
205*129*67
|
||||
|
Mounting dimension(mm)
|
150×55
|
150×70
|
191×70
|
191×80
|
195*90
|
||||
|
Mounting hole size
|
Φ4.2mm
|
Φ4.2mm
|
Φ4.2mm
|
Φ4.5mm
|
Φ5mm
|
||||
|
Terminals
|
4mm2
|
10mm2
|
16mm
2
|
35mm
2
|
35mm
2
|
||||
|
Weight
|
0.2kg
|
0.4kg
|
0.7kg
|
0.9kg
|
1.3kg
|
||||
|
Model
|
VS2048BN
|
VS3048BN
|
VS4548BN
|
VS6048BN
|
|||
|
System nominal voltage
|
12/24/36/48VDC Auto
|
|
|
|
|||
|
Battery Input Voltage Range
|
9V～64V
|
|
|
|
|||
|
Rated charge current
|
20A
|
30A
|
45A
|
60A
|
|||
|
Rated discharge current
|
20A
|
30A
|
45A
|
60A
|
|||
|
Max. PV open circuit voltage
|
96V
|
|
|
|
|||
|
Battery Type
|
Sealed(Default) / Gel / Flooded/User
|
|
|
|
|||
|
Equalize Charging Voltage※
|
Sealed:14.6V/ Gel: No/ Flooded:14.8V/User:9-17V
|
|
|
|
|||
|
Boost Charging Voltage※
|
Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V/User:9-17V
|
|
|
|
|||
|
Float Charging Voltage※
|
Sealed/Gel/Flooded:13.8V/User:9-17V
|
|
|
|
|||
|
Low Voltage Reconnect Voltage※
|
Sealed/Gel/Flooded:12.6V/User:9-17V
|
|
|
|
|||
|
Low Voltage Disconnect Voltage※
|
Sealed/Gel/Flooded:11.1V/User:9-17V
|
|
|
|
|||
|
Self-consumption
|
≤15mA@12v; ≤10mA@24v; ≤9mA@36v; ≤8mA@48v
|
|
|
|
|||
|
Temperature compensation coefficient
|
-3mV/℃/2V（25℃）
|
|
|
|
|||
|
Charge circuit voltage drop
|
≤0.53V
|
|
|
|
|||
|
Discharge circuit voltage drop
|
≤0.16V
|
|
|
|
|||
|
LCD temperature range
|
-20℃～+70℃
|
|
|
|
|||
|
Working environment temperature
|
-25℃～+55℃
|
|
|
|
|||
|
Relative humidity
|
≤95%, N.C.
|
|
|
|
|||
|
Enclosure
|
IP30
|
|
|
|
|||
|
Grounding
|
Common Negative
|
|
|
|
|||
|
Communication
|
RS485 / RJ45 interface
|
|
|
|
|||
|
Overall dimension(mm)
|
200*103*58
|
201*109*59
|
205*119*67
|
205*174*64
|
|||
|
Mounting dimension(mm)
|
191×70
|
191×80
|
195×80
|
195*130
|
|||
|
Mounting hole size
|
Φ4.2mm
|
Φ4.2mm
|
Φ4.5mm
|
Φ5mm
|
|||
|
Terminals
|
16mm
2
|
35mm
2
|
35mm
2
|
35mm
2
|
|||
|
Weight
|
0.7kg
|
0.8kg
|
1.2kg
|
1.6kg
|
|||
Product packaging
