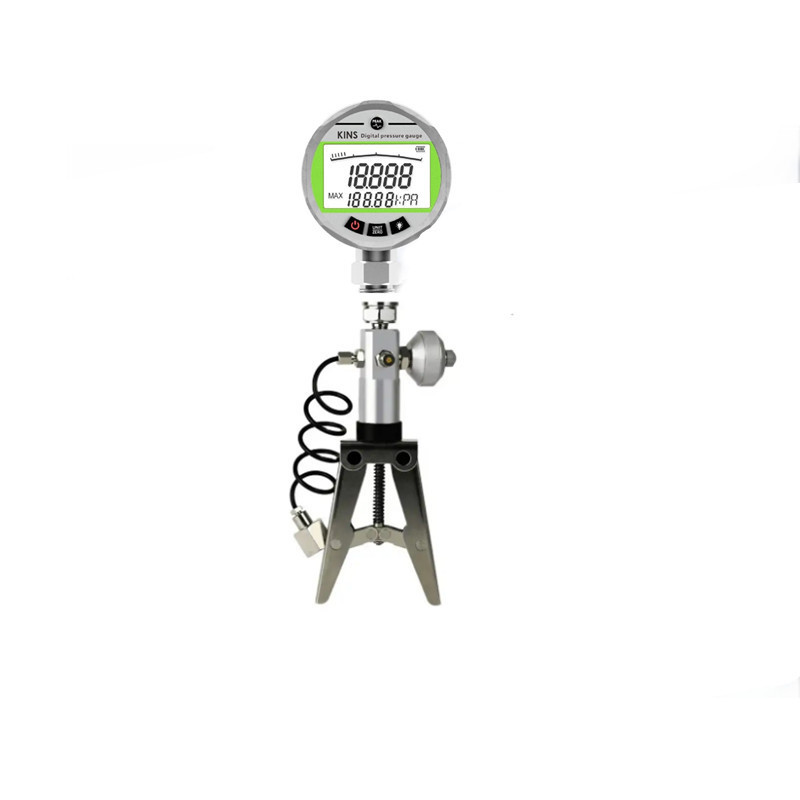

digital pressure calibrator YFP16 -0.088~1.6MPa Hand Vacuum Pump

digital pressure calibrator YFP16 -0.088~1.6MPa Hand Vacuum Pump

FOB Reference Price: Get Latest Price

≥5 Pieces

US $350

≥10 Pieces

US $340

≥50 Pieces

US $320

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: YFP 16/20/25

Product name:: YFP Vacuum Pressure Hand Pump

Pressure Range:: -0.088~1.6MPa(-0.88~16bar)/2.0/2.5Mpa

Medium:: vacuum pressure hand pump

Power:: handheld

Model:: YFP 16/20/25

Usage:: Process Calibrator Machine

Feature:: easy to carry

Dimension:: 220*110*60mm

weight:: ≤ 0.8Kg

Temperature::: 0 ~ 40 °C

Quick Details

Warranty:: 1 years

Place of Origin:: SHN

Brand Name:: LINO

Model Number:: YFP 16/20/25

Product name:: YFP Vacuum Pressure Hand Pump

Pressure Range:: -0.088~1.6MPa(-0.88~16bar)/2.0/2.5Mpa

Medium:: vacuum pressure hand pump

Power:: handheld

Model:: YFP 16/20/25

Usage:: Process Calibrator Machine

Feature:: easy to carry

Dimension:: 220*110*60mm

weight:: ≤ 0.8Kg

Temperature::: 0 ~ 40 °C

Product Description

YFP Vacuum Pressure Hand Pump

YFP type vacuum pressure hand pump is a quick hand pressure source, by adjusting the pressure vacuum valve can realize the vacuum
pumping and positive pressure, suitable to calibrate kinds of differential pressure, vacuum, vacuum pressure and pressure
instrument, and also can be used as vacuum pressure source of the above pressure instrument. Characteristic of compact size, light
weight, easy to operate, hand held, can can be matched to vacuum pressure instrument.

Structure and working principle

Note: When adjust pressure through trimmer, the trimmer should not exceed the red ring sign on the cylinder.

Usage:
1. After connect the instrument, close the pressure relief valve, then hold the handle to pressure.
2. To push the vacuum pressure valve from directional sign "V" to the other side, can easily achieve vacuum convenient; to push the vacuum pressure valve from directional sign "P" to the other side, can easily achieve positive pressure.
3. In order to obtain accurate pressure valve during positive pressure process, can be fine-tuning by trimmer.
4. After add the positive pressure, firstly relief the pressure through pressure relief valve, then remove the instrument.

Specification

Output pressure	1-0.088~1.6MPa(-0.88~16bar) -0.088~2.0MPa(-0.88~20bar) -0.088~2.5MPa(-0.88~25bar)
Working temperature	0~40℃
Dimension	220x110x55mm
Weight	0.5kg
Accessory	adapter: 1/4NPT (Male) to M14x1.5 (Female) 1 piece

Related Product

Model Number	Pressure Range	Medium
Y039	0 ~ 1.6Mpa	Pneumatic/Barometric Pressure
Y061	-0.1 ~ 0Mpa	Pneumatic/Barometric Pressure
Y060	0 ~ 25Mpa	Hydraulic Pressure
YFP-1.6	-0.1 ~ 1.6Mpa	Pneumatic/Barometric Pressure
YFP-2.0	-0.1 ~ 2.0Mpa	Pneumatic/Barometric Pressure
YFP-2.5	-0.1 ~ 2.5Mpa	Pneumatic/Barometric Pressure
XYSB60	0 ~ 60Mpa	Hydraulic Pressure
