Function: for washing, screening and separating the minerals
Mesh size: 12mm and 6mm or according to clients requirement
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Clients Local Standard
-
Dimension(L*W*H):
-
Diffrent Model
-
Weight:
-
4150 KG
-
Marketing Type:
-
Hot Product
-
Name:
-
gold ore sand washing plant
-
installation:
-
Engineer Guide
-
price:
-
negotiable
-
Application:
-
Gold
-
Usage:
-
alluvial gold washing plant
-
Recovery rate:
-
90-99%
-
Capacity:
-
10-6000t/d
-
Feeding size:
-
0-300mm
-
Keywords:
-
gold washing plant for sale
-
Color:
-
Customers' Requirements
Quick Details
-
Production Capacity:
-
97%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xinhai
-
Voltage:
-
Clients Local Standard
-
Dimension(L*W*H):
-
Diffrent Model
-
Weight:
-
4150 KG
-
Marketing Type:
-
Hot Product
-
Name:
-
gold ore sand washing plant
-
installation:
-
Engineer Guide
-
price:
-
negotiable
-
Application:
-
Gold
-
Usage:
-
alluvial gold washing plant
-
Recovery rate:
-
90-99%
-
Capacity:
-
10-6000t/d
-
Feeding size:
-
0-300mm
-
Keywords:
-
gold washing plant for sale
-
Color:
-
Customers' Requirements
Note!!!
The current price is not the actual price, the specific price is subject to the sales quotation.
Process Description

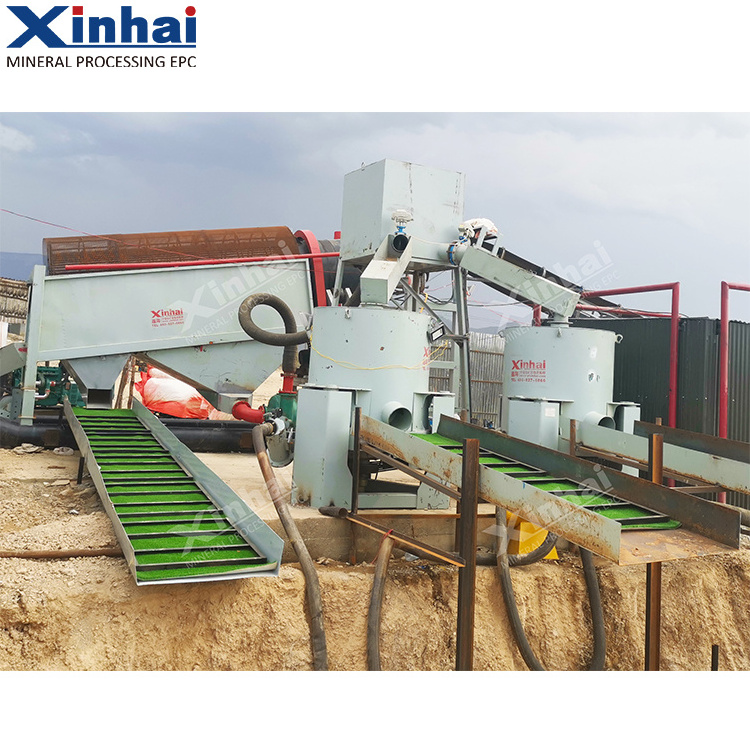

Small scale alluvial gold washing plant
1) Gold washing plant are designed according to your specific mining conditions and requirements.
2) Feeding system with grizzly hopper feeder.
3) Heavy duty clay scrubber with inside high pressure water spray pipes for breaking off hard clay (if required).
4) trommel screen with NSK bearings and high pressure water spray pipes on both sides for washing, screening and separating.
5) Double gold recovery systems to ensure highest recovery rate of gold (up to 98%).
6) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc.
7) Gold processing plant to make final product of gold.
8) Easy for installation, operation and maintaining.
9) One-Stop gold mining solutions
Product Structure
Gold Trommel Screen
Size (mm): φ1500*3500 or according to processing capacity
Advantage:
1.Customized capacity and strong power scrubbing, large capacity can reach 200-250tons per hour.
2.Long washing drum of the scrubber retains material for longer, more vigorous washing for complete separation.
3.One high output electrical motor driving a rubber wheel system providing efficient torque.
4.Rotation speed can be adjusted by advanced reducer.
5.The water with high pressure flushed the inwall of drum.
6.Can accept material up to 230mm.
Sluice Box
Size: 800mm*6000mm or according to processing capacity
Function: for coarse gold recovery
Recovery rate: 99%
Shaking Table
Shaking table is a gravity separation equipment of separation different weight mineral by asymmetric reciprocating motion.
The Shaking Table further processes small-sized concentrators form sluices or concentrates.
Centrifugal Concentrator
Centrifugal Gold Concentrator is a new type of gravity concentration equipment for concentrating gold and other high density minerals. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings. Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times.
[Introduction]: The principle of alluvial gold mining beneficiation is to maximize the recovery rate of gold and the associated heavy minerals from gangues first and then separate gold from the associated heavy minerals by joint mining solutions such as gravity separation, flotation, amalgamation, magnetic separation, and electrostatic separation.
[Application]: Alluvial gold processing solution mainly applies to processing alluvial gold with a large volume of gangue minerals. Alluvial gold processing is a set of mining processes, including crushing and screening, desliming stage, separating stage, etc.
[Application]: Alluvial gold processing solution mainly applies to processing alluvial gold with a large volume of gangue minerals. Alluvial gold processing is a set of mining processes, including crushing and screening, desliming stage, separating stage, etc.
Technical Parameters
|
Model
|
Capacity
|
Power
|
Screen Diameter
|
Screen Length
|
Discharge Size
|
Input Size
|
Dimension
(L×W×H) |
Weight
|
|
|
(t/h)
|
(kw)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(kg)
|
|
GTS1015
|
50
|
3.0
|
1000
|
1500
|
0~100
|
≤300
|
2600×1400×1700
|
2200
|
|
GTS1020
|
100
|
4.0
|
1000
|
2000
|
|
|
3390×1400×2140
|
2800
|
|
GTS1225
|
160
|
5.5
|
1200
|
2500
|
|
|
4146×1600×2680
|
4200
|
|
GTS1530
|
250
|
7.5
|
1500
|
3000
|
|
|
4460×1900×2820
|
5100
|
|
GTS1545
|
350
|
11
|
1500
|
4500
|
|
≤400
|
5960×1900×3080
|
6000
|
|
GTS1848
|
450
|
15
|
1800
|
4800
|
|
|
6500×2350×4000
|
7500
|
|
GTS2055
|
600
|
22
|
2000
|
5500
|
|
|
7500×2550×4800
|
9600
|
|
GTS2265
|
800
|
30
|
2200
|
6500
|
|
|
8500×2750×5000
|
12800
|
