Quick Details
-
Brand Name:
-
SHTG
-
Model Number:
-
STCT-2
-
Product name:
-
STCT-2 Dynamic Cone Penetrometer Testing Equipment
-
Model:
-
STCT-2
-
Usages:
-
the rapid in-situ measurement of the structural properties
-
The dropping weight:
-
8kg
-
a drop of:
-
575mm.
-
Application:
-
existing road pavements constructed with unfound materials
-
Brand:
-
SHTG
-
Certificate:
-
CE
-
Package:
-
Wooden case
Quick Details
-
Warranty:
-
1 year, 1 Year
-
Power:
-
Hydraulic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SHTG
-
Model Number:
-
STCT-2
-
Product name:
-
STCT-2 Dynamic Cone Penetrometer Testing Equipment
-
Model:
-
STCT-2
-
Usages:
-
the rapid in-situ measurement of the structural properties
-
The dropping weight:
-
8kg
-
a drop of:
-
575mm.
-
Application:
-
existing road pavements constructed with unfound materials
-
Brand:
-
SHTG
-
Certificate:
-
CE
-
Package:
-
Wooden case
STCT-2 Dynamic Cone Penetrometer Testing Equipment/Cone Penetration Test/CPT
Wechat:yzf310922 whatsapp:+86 18516697269
ASTM D 6951-03
This apparatus has been designed for the rapid in-situ measurement of the structural properties of existing road pavements constructed with unfound materials.
Dynamic cone penetrometer (DCP) TRL = TRANSPORT RESEARCH LABORATORY, UK.
This portable hand operated equipment is designed to obtain a direct and rapid in-situ evaluation of the structural strength of road pavement layers constructed with unbound materials.
The DPC Penetrometer results can be compared and interpreted with CBR (California Bearing Ratio) as per sperimental Kleyn 1982 studies.
The test is performed with continuous penetrations at approx. 800 mm depth with max. depth of 2 m by using extension rods.

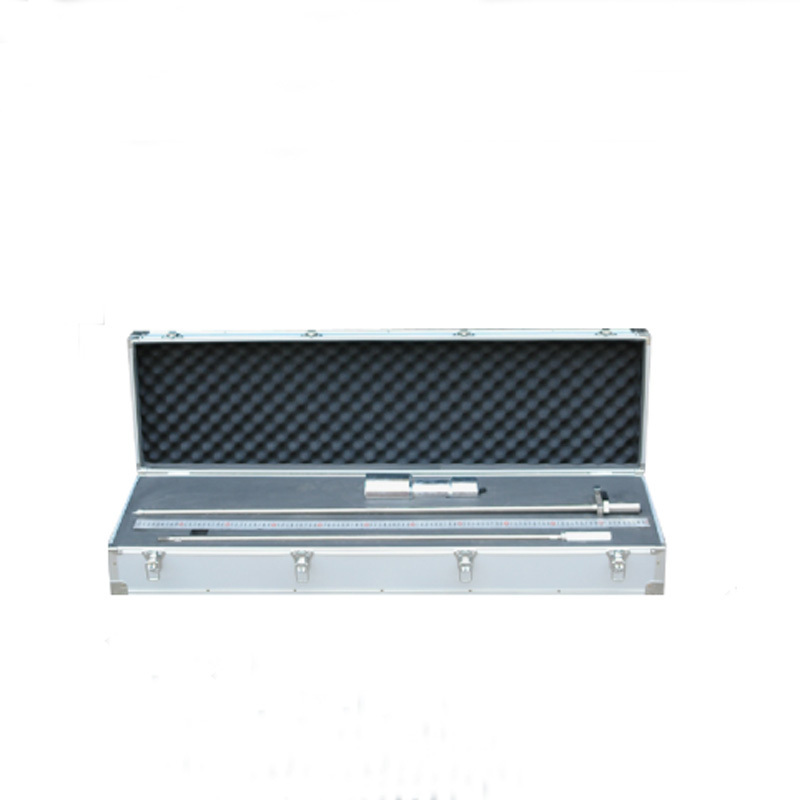

The equipment consists of:
1.Drop sliding hammer 8 kg weight, falling height of 575 mm
2.Impact anvil with driving rod
