Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
Lan Network Cable Tester SC8108
-
power:
-
Electronic, 4*1.5V Size AA batteries
-
Function:
-
Test & Measure Lan cable
-
Certificate:
-
CE & RoHS
-
operation:
-
Easy
-
Display:
-
LCD (Wiremap)
-
cable type:
-
STP UTP Ca5e Cat6
-
working Ambient Temperature:
-
-10C to 60C
-
Power supply2:
-
4 x AAA batteries
-
type:
-
STP/UTP twin twisted
Quick Details
-
Power:
-
Electronic, 4*1.5V Size AA batteries
-
Use:
-
Lan Network Cable Tester SC8108
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Model Number:
-
Lan Network Cable Tester SC8108
-
power:
-
Electronic, 4*1.5V Size AA batteries
-
Function:
-
Test & Measure Lan cable
-
Certificate:
-
CE & RoHS
-
operation:
-
Easy
-
Display:
-
LCD (Wiremap)
-
cable type:
-
STP UTP Ca5e Cat6
-
working Ambient Temperature:
-
-10C to 60C
-
Power supply2:
-
4 x AAA batteries
-
type:
-
STP/UTP twin twisted
Network Cable Tester LAN Cable Tester SC8108
- Device type: network tester
- Interface: USB
- Properties: measuring wire
-
UTP STP Cat5E/Cat6 RJ45 Lan Network Cable Length Tester DK-8108
1. Measure network cable length to an end or broken point.
2. Check wiring error in STP UTP 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
3. Display by big LCD, with clear wiremap.
4. Automatically time-delay shut off.
5. Length Calibration: User can set self-calibration factor by a given length cable (The length of calibrating cable needs to be more than 5M )
6. Self-checking and automatically compensate any change in battery capacity or ambient temperature.
The main function characteristics:
- 1.The cable connectivity test can be achieved by one person
- 2.Detects 5 e, 6 e coaxial cable and telephone line connection failure, including: open circuit, short circuit, jumper, reverse connection and series wound
- 3.Wiring/connection error of positioning
- 4.Measure the cable length, the location of the short circuit and locating open
- 5.The length of the cable dynamic calibration function, make the length measurement accuracy up to 98%
- 6.Easy to use, large screen display to make test results at a glance
- 7.Easy to carry
- 8.Automatic delay shutdown
- 9.Whether on distal recognizer can length measurement
- 10.Cable positioning, eight remote passive test socket (identification number ID1 standard)
- 11.Remote identification instrument audio prompt functions
-
DK-8108
Indicator
LCD 61.5x25.2 mm
Type of cable tested
Lan cable (5E, 6E), coaxial cable
Compatible connectors
RJ45
Tone frequency
225 Hz
Max. distance of cable map
1-305m (3-1000ft) for twisted pair
Calibration accuracy
97% (± 0.5m or ± 1.5 ft) (calibrating cable > 5 M)
Calibration accuracy
5% (± 0.5m or ± 1.5 ft) (AMP, AT&T Class 5 cable)
Max. working current
Less than 70mA
Display
LCD display
Unit of Measurement
Meter (M) or Feet (FT)
Low battery display
LCD ( 6.5V)
Voltage protection
AC 60V/DC 42V
Battery Type
DC 4x1.5v
Working Ambient Temperature
-10°C to 60°C
Automatic Time-delay Shut Off Time
30 minutes
Dimension of Transmitter
18.4*8.4*4.6 cm (7.2*3.3*1.8 in)
Dimension of Remote Unit
7.8*3.3*2.2 cm (3.1*1.3*0.9 in)

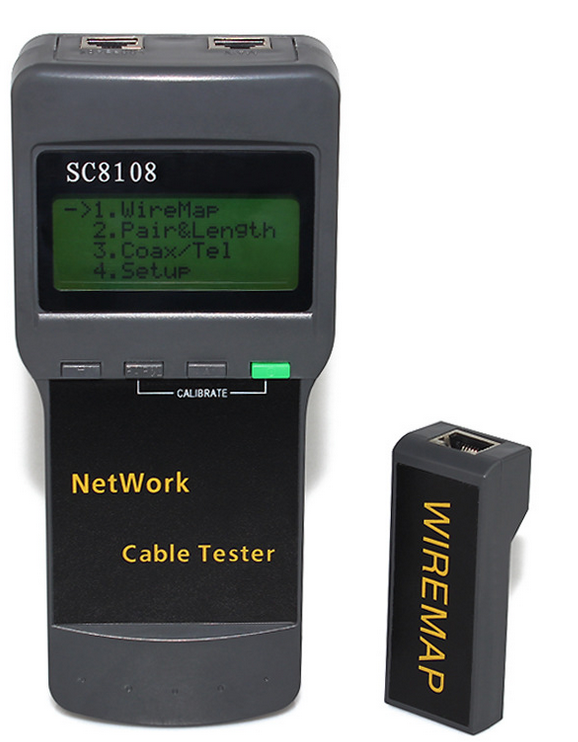

Picture:
