Quick Details
-
Model Number:
-
TXE034
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
5 ports Gigabit Switch
-
Device Type:
-
network products
-
Keywords:
-
Fast ethernet switch
-
Chipset:
-
MT7530D
-
Port number:
-
5 port 10/100M/1000M Auto MDI-MDIX RJ45
-
Standard:
-
IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az
-
Forwarding rate:
-
10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps, 1000Mbps/1488000pps
-
Power Input:
-
DC5V/1000mA
-
Power Consumption:
-
Max4.5W
-
Dimension:
-
100*69*24mm
-
Certification:
-
FCC, ce
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
TXIC
-
Model Number:
-
TXE034
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
5 ports Gigabit Switch
-
Device Type:
-
network products
-
Keywords:
-
Fast ethernet switch
-
Chipset:
-
MT7530D
-
Port number:
-
5 port 10/100M/1000M Auto MDI-MDIX RJ45
-
Standard:
-
IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az
-
Forwarding rate:
-
10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps, 1000Mbps/1488000pps
-
Power Input:
-
DC5V/1000mA
-
Power Consumption:
-
Max4.5W
-
Dimension:
-
100*69*24mm
-
Certification:
-
FCC, ce

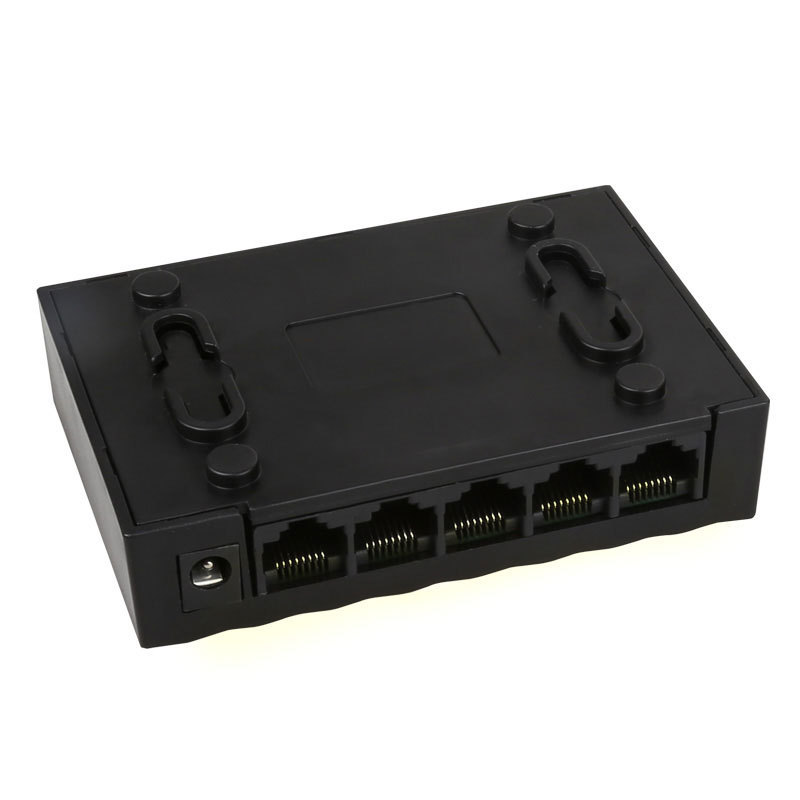

5 Ports 10/100/1000Mbps Fast Switch Plastic Shell Gigabit Ethernet Switches MediaTek /MTK7530 Chipset for Desktop
Product specification
|
Model number |
TXE 034 |
|
Chipset |
MT7530D |
|
Port number |
5 port 10/100M /1000M Auto MDI-MDIX RJ45 |
|
Standard |
IEEE 802.3 , IEEE 802.3u , IEEE 802.3x , IEEE 802.3az |
|
Network media |
10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP |
|
Data rate |
10/100M /1000M |
|
Forwarding rate |
10 Mbps / 14,880 pps , 100 Mbps / 148,800 pps , 1000Mbps/1488000pps |
|
LED Indicator |
10/100M /1000M bps(Link/Act),Power |
|
Dimension |
100*69* 24 mm |
|
Power Input |
DC5V/ 10 00mA |
|
Power Consumption |
Max 4 .5W |
|
Environment |
Operating Temperature: 0 ℃ - 5 0 ℃ |
|
Relative Humidity: 10%-90%(non-condensing) |
|
|
Storage Temperature: -40 ℃ -70 ℃ |
|
|
Relative Humidity: 5%-90%(non-condensing) |
Product Show Room :
