Quick Details
-
Model Number:
-
273
-
Brand Name:
-
QS MOTOR, QSMOTOR
-
Product name:
-

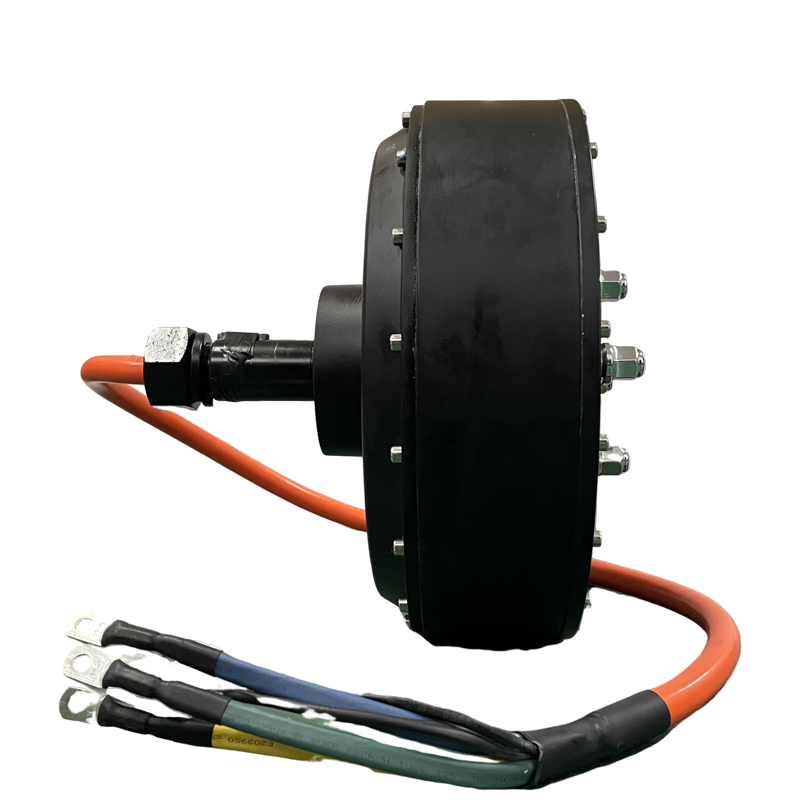

Hub Motor
-
Power:
-
6000W
-
Application:
-
E-car
-
Motor Type:
-
Electric Hub Wheel Motor
-
Brake type:
-
Disk Brake
-
Color:
-
Black
-
Motor:
-
6000w Brushless DC Motor
-
Rated voltage:
-
72v
-
Warranty:
-
1.5 Year
Quick Details
-
Voltage:
-
72V
-
Style:
-
Four rounds
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
273
-
Brand Name:
-
QS MOTOR, QSMOTOR
-
Product name:
-
Hub Motor
-
Power:
-
6000W
-
Application:
-
E-car
-
Motor Type:
-
Electric Hub Wheel Motor
-
Brake type:
-
Disk Brake
-
Color:
-
Black
-
Motor:
-
6000w Brushless DC Motor
-
Rated voltage:
-
72v
-
Warranty:
-
1.5 Year
Product Description
Specification
|
item
|
value
|
|
Voltage
|
72V
|
|
Design
|
Brushless
|
|
Style
|
Four rounds
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Model Number
|
QS273
|
|
Brand Name
|
QSMOTOR
|
|
Application
|
Electric Car
|
|
Color
|
Black
|
|
Magnet height
|
45H
|
|
Certification
|
CE
|
Motor Specification:
1.Motor Type: BLDC Hub Motor with Permanent Magnet
2.Motor design: Single axle out without rim
3.PCD for rim installation: 4 x100mm, 5x114.3mm
4.CB:60MM/70MM
5.Magnet Height:45MM
6.No. of Pole Pairs: 16pairs
7.Rated Power: 6000W V3
8.Peak Power: 10390W(Peak 12000W)
9.Rated Voltage: 72V( 60V-144V Can be optional)
10.Speed: 100km/h (40-100km/h can be customized)
11.Max No-load RPM: 1000RPM
12.Max Torque: 250N.M
13.Max Efficiency: 90%
14.Continuous current:88A
15.Max current:120A (Peak 170A in short time)
16.Brake type: Disc brake
17.Winding Core material: Aluminium
18.Cross Section of Phase wire: 16 mm2
19.Hall sensor phasing angle: 120 degree
20.Temperature Sensor: Optional
21.Max. Working Temperature: 70 degree, Peak 120 degree
22.Waterproof Grade: IP54
23.Color: Black
24.N.W./ G..W. : 25kgs /26kgs
25.Package Size: 44*43*34CM
Packing & Delivery
Foam and Carton package
