Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yakir
-
Model Number:
-
HJ
-
Min Height:
-
16mm
-
Product name:
-
hydraulic bottle Jack Claw Jack 5 ton 30 ton Hydraulic Toe Jack
-
Color:
-
Yellow
-
Application:
-
Lifting Truck
-
Material:
-
Steel
-
Weight:
-
11~60kg
-
Packing:
-
Carton or wooden case
-
Shipping:
-
By sea
Quick Details
-
Warranty:
-
1 year, 1 Year
-
Type:
-
Mechanical Jack
-
Max Height:
-
158mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yakir
-
Model Number:
-
HJ
-
Min Height:
-
16mm
-
Product name:
-
hydraulic bottle Jack Claw Jack 5 ton 30 ton Hydraulic Toe Jack
-
Color:
-
Yellow
-
Application:
-
Lifting Truck
-
Material:
-
Steel
-
Weight:
-
11~60kg
-
Packing:
-
Carton or wooden case
-
Shipping:
-
By sea
Lifting Tool hydraulic bottle Jack Claw Jack 5 ton 30 ton Hydraulic Toe Jack
1. Appliance of hydraulic toe jack :
(1). Ideal for automotive, truck, farm, industrial and construction work.
(2). Operates in vertical or horizontal positions.
(3). Fabricated from hard cast steel Base for Increased Strength and Stability
(4). 2-Piece Handle Provides Maximum Results with Minimal Effort.
(5). Heavy duty saddle for secure lifts .Heat-treated, large diameter extension screw Extends Range and Allows Easy Height Adjustment.
(6). High tonne models have carrying handle.
2. Features of hydraulic toe jack:
1.Carbon steel base with automatic welding makes stable quality.
2.Hydraulic bottle jack with stable quality, 100 degree high temperature test, static electricity painting for perfect look.
3. A full range of capacity from 5 to 50 ton.
4.Chrome plated plunger with self-return resiste corrsion and extends life.
5.For heav y equipment lifting or check level with minimum avaliable access.
Product Parameter of hydraulic toe jack :
|
Model |
Lifting Load on the toe (T) |
Lifting Load on the top (T) |
Min Toe Height (mm) |
Lifting Height (mm) |
Net Weight (kg) |
L×W×H (mm) |
|
HWGK -2.5 |
2.5 |
5 |
16 |
115 |
15 |
210×140×232 |
|
HWGK -5 |
5 |
10 |
20 |
148 |
24 |
260×200×283 |
|
HWGK-10 |
10 |
20 |
25 |
158 |
40 |
295×220×322 |
|
HWGK-15 |
15 |
30 |
30 |
158 |
55 |
305×255×350 |
|
HWGK -25 |
25 |
50 |
50 |
158 |
85 |
340×285×350 |

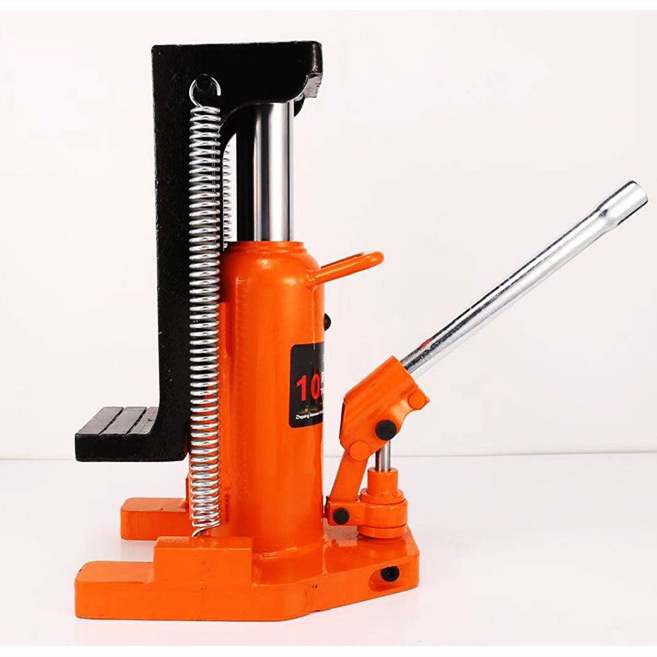

Product show of hydraulic toe jack
