Quick Details
-
Brand Name:
-
chaochen
-
Model Number:
-
ceramic fiber belt
-
Application:
-
Iron and steel industry,Petrochemical industry
-
Dimensions:
-
6~50mm
-
Working Temperature:
-
1050,650
-
Fiber Diameter:
-
5μm
-
Thermal Conductivity:
-
0.17
-
Shrinkage (1800℉, 3h):
-
1.3
-
type:
-
ceramic fiber belt
-
thickness:
-
2~5mm
-
density:
-
350~600kg/m3
-
work temperature:
-
1050,650℃
-
ignition loss:
-
10~20%
-
application:
-
high temperature pipeline and containers, thermal radiation shield
Quick Details
-
Ultimate Strength (≥ MPa):
-
0.65
-
Density (kg/m³ ):
-
96
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
chaochen
-
Model Number:
-
ceramic fiber belt
-
Application:
-
Iron and steel industry,Petrochemical industry
-
Dimensions:
-
6~50mm
-
Working Temperature:
-
1050,650
-
Fiber Diameter:
-
5μm
-
Thermal Conductivity:
-
0.17
-
Shrinkage (1800℉, 3h):
-
1.3
-
type:
-
ceramic fiber belt
-
thickness:
-
2~5mm
-
density:
-
350~600kg/m3
-
work temperature:
-
1050,650℃
-
ignition loss:
-
10~20%
-
application:
-
high temperature pipeline and containers, thermal radiation shield
Introduction

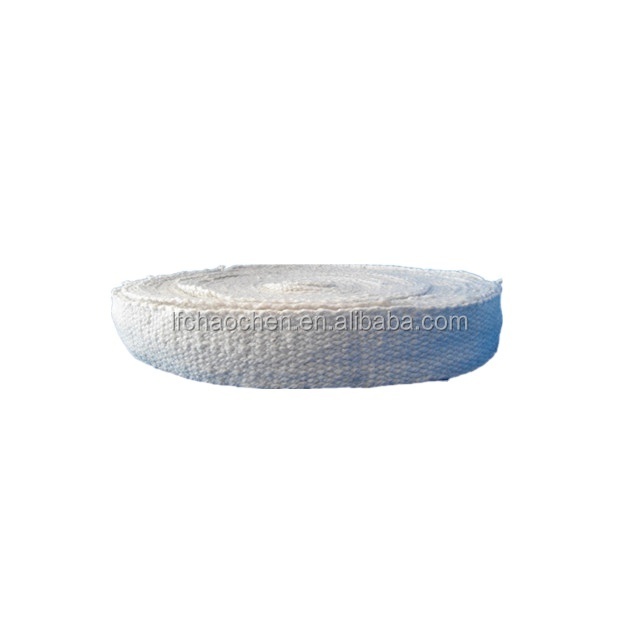

High temperature ceramic fiber Belt , is made from ceramic fiber wool, non-alkali glass filament, high temperature resistant stainless steel alloy wire with special technology. I n addition to the above products, we also provide high temperature resistant textile w ith special specifications and performance for our customers according to the ir requirement for service temperature and specific service conditions .
Characteristics
- Excellent high temperature strength
- Good electrical insulation performance
- Excellent corrosion resistant of acid, oil and water vapor
- Low Heat Conductivity
- Excellent heat insulation performance
Technical Index
|
Main Performance |
Reinforced Stainless Steel Wire |
Reinforced Continuous Glass Fiber |
|
Highest Service Temperature ( °C ) |
1050 |
650 |
|
M elting P oint ( °C ) |
1760 |
1760 |
|
Density(kg/m 3 ) |
350-600 |
350-600 |
|
Heat Conductivity(W/m·k, ASTMC201) (average 800 °C ) |
0.17 |
0.17 |
|
Ignition Loss(%) |
10-20 |
10-20 |
|
C hemical C omponent |
|
|
|
Al 2 O 3 |
46.6 |
46.6 |
|
Al 2 O 3 +SiO 2 |
99.4 |
99.4 |
|
Product Standard Specification |
|
|
|
Fiber Cloth |
Width: 1000-1500mm, thickness: 2, 2.5, 3, 5, 6mm |
|
|
Fiber T ape |
Width: 10-150mm, thickness: 2, 2.5, 3, 5, 6, 8, 10mm |
|
|
F iber T wisted R ope |
D iameter : 5, 8, 10, 12, 15, 18, 20, 25, 30, 35, 40mm |
|
|
Fiber Round Strand Rope |
Diameter: 6, 8, 10, 12, 14, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50mm |
|
|
Fiber Square Rope |
5*5, 8*8, 10*10, 12*12, 14*14, 15*15, 16*16, 18*18, 20*20, 25*25, 30*30, 35*35, 40*40, 45*45, 50*50mm |
|
Applications
High temperature ceramic fiber rope: thermal insulation for h igh temperature pipeline and containers , thermal radiation shield, labor insurance clothing, high-temperature resistant fireproof curtain, protection for cable or f uel pipe , h igh temperature resistant metal compensator refractory layer and others industr ial thermal insulation,
fireproof and protection
1,Packing
Plastic woven bag packaging, or carton packaging, can according to customer requirements
2,Shipping
By sea from tianjin xingang, China
1 Samples
Free/Can produce according to your samples/The color according to your require
2 Product
Competitive shipment service/Complete after sales service
3 Our advantage
Professional manufacturer/Advanced equipment/Good quality& flexible/Competitive price/High quality team
4 Cer t ification
