Quick Details
-
H Content (%):
-
0
-
Ash Content (%):
-
0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
One Victor
-
Model Number:
-
Customize
-
Dimensions:
-
Customize
-
Working Temperature:
-
200 degree
-
Volatile:
-
0
-
Material:
-
100% Carbon Fiber
-
Surface:
-
Twill/Plain/Forged/Custom Color
-
Type:
-
1K/3K/6K/12K/18K/chopped
-
Weight:
-
Customized
-
Thickness:
-
Customized
-
Features:
-
High Strength/Light Weight/High Temperature Resistance
-
Delivery Time:
-
7-15 Days
-
MOQ:
-
1 Piece
Quick Details
-
C Content (%):
-
100%
-
S Content (%):
-
0
-
N Content (%):
-
0
-
H Content (%):
-
0
-
Ash Content (%):
-
0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
One Victor
-
Model Number:
-
Customize
-
Dimensions:
-
Customize
-
Working Temperature:
-
200 degree
-
Volatile:
-
0
-
Material:
-
100% Carbon Fiber
-
Surface:
-
Twill/Plain/Forged/Custom Color
-
Type:
-
1K/3K/6K/12K/18K/chopped
-
Weight:
-
Customized
-
Thickness:
-
Customized
-
Features:
-
High Strength/Light Weight/High Temperature Resistance
-
Delivery Time:
-
7-15 Days
-
MOQ:
-
1 Piece

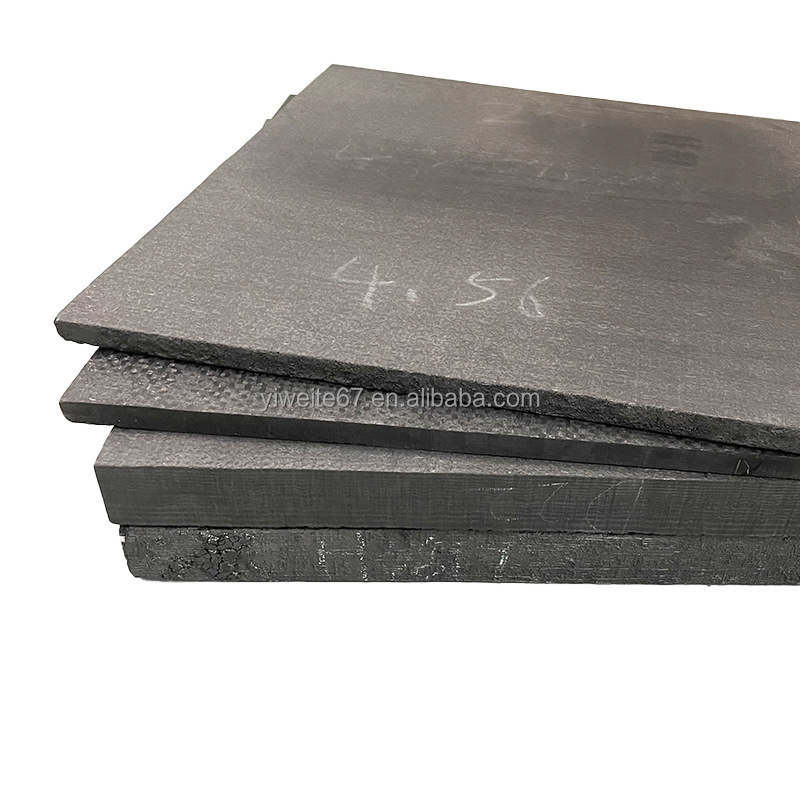

2D 2.5D Carbon Carbon Composite for Vacuum Furnace High Temperature Resistance CFC Plates Carbon Fiber CFC Production
|
Index
|
|
Unit
|
Value
|
|
||||
|
Bulk density
|
|
g/cm³
|
1.40~1.50
|
|
||||
|
Carbon content
|
|
%
|
≥98.5~99.9
|
|
||||
|
Ash
|
|
PPM
|
≤65
|
|
||||
|
Thermal conductivity(1150℃)
|
|
W/m.k
|
10~30
|
|
||||
|
Tensile strength
|
|
Mpa
|
90~130
|
|
||||
|
Flexural Strength
|
|
Mpa
|
100~150
|
|
||||
|
Compressive strength
|
|
Mpa
|
130~170
|
|
||||
|
Shear strength
|
|
Mpa
|
50~60
|
|
||||
|
Interlaminar Shear strength
|
|
Mpa
|
≥13
|
|
||||
|
Electric resistivity
|
|
Ω.mm²/m
|
30~43
|
|
||||
|
Coefficient of Thermal Expansion
|
|
10
6
/K
|
0.3~1.2
|
|
||||
|
Processing Temperature
|
|
℃
|
≥2400℃
|
|
||||
|
Military quality, full chemical vapor deposition furnace deposition,imported Toray carbon fiber T700 prewoven 3D needle knitting
Material specifications.maximum outer diameter 4000mm.wall thickness 1-50mm,height 2000mm |
|
|
|
|
||||
|
|
|
|
|
|
||||
Manufacturing Technique
What is Carbon Fiber Composite?
Let’s first start with the nomenclature. Carbon Fiber Composite is also referred to as Carbon-Carbon Composite, CFC, or Carbon Reinforced Matrix Composite. All of these aliases refer to this product.
Originally developed for use in the aerospace sector, CFC has become an extremely cost-effective solution for furnace fixture applications. The unique attributes of CFC offer advantages compared to metal and graphite fixtures. The material can be provided in a wide variety of sizes and geometric shapes.
CFC Items we carry are as follows: Multi-Ply Sheets, Channels, Threaded Rods, Smooth Rods, Square Nuts, Plates, and Survey Racks. We also supply custom CFC as seen below.
Carbon-carbon composite features:
(1) Physical properties: After high temperature treatment, the carbon composite has higher carbon content, >99%, the density is low, the mechanical properties are good. Due to good characteristic of high melting point of carbon, high temperature resistance, corrosion resistance and thermal shock performance, the carbon composite is resistant to acid, alkali and salt.
(2) High mechanical strength: the strength is 5 times that of steel at high temperature.
(3) High temperature resistance: excellent mechanical and electrical properties can still be maintained at temperatures above 2000ºC.
(4) Low thermal expansion coefficient.
(5) Low heat capacity.
Special Properties of carbon carbon composite: High Acid-resisting and alkali-resisting properties; Low density compared to metals; High temperature, cold-resistant, tensile strength is 7-9times than Steel; very good thermal shock resistance…
Custom Carbon Fiber Composite Fabrications
Fabricated shapes include but are not limited to: Sheets, Angles, U-Channels, Rings, Tubes, Pipes, Cylinders, Bolts, Washers, Heating Elements, Shelving, Survey Racks and Baskets for heat-treating.
